Collection and Playback of Data on Checker SiE30-408
170 Service Checker Type3 Application Edition
4.5 Using Secondary Axis
If “Opening degree of electronic expansion valve” is selected from the data, due to large
amplitude range of 0 to 2000 pulses, the temperature data will be gathered at the bottom of the
graph, thus resulting in hard verification of data. Therefore, use the secondary axis to facilitate
the reading of the data.
Temperature data
Opening degree of
electronic expansion valve
Secondary axis

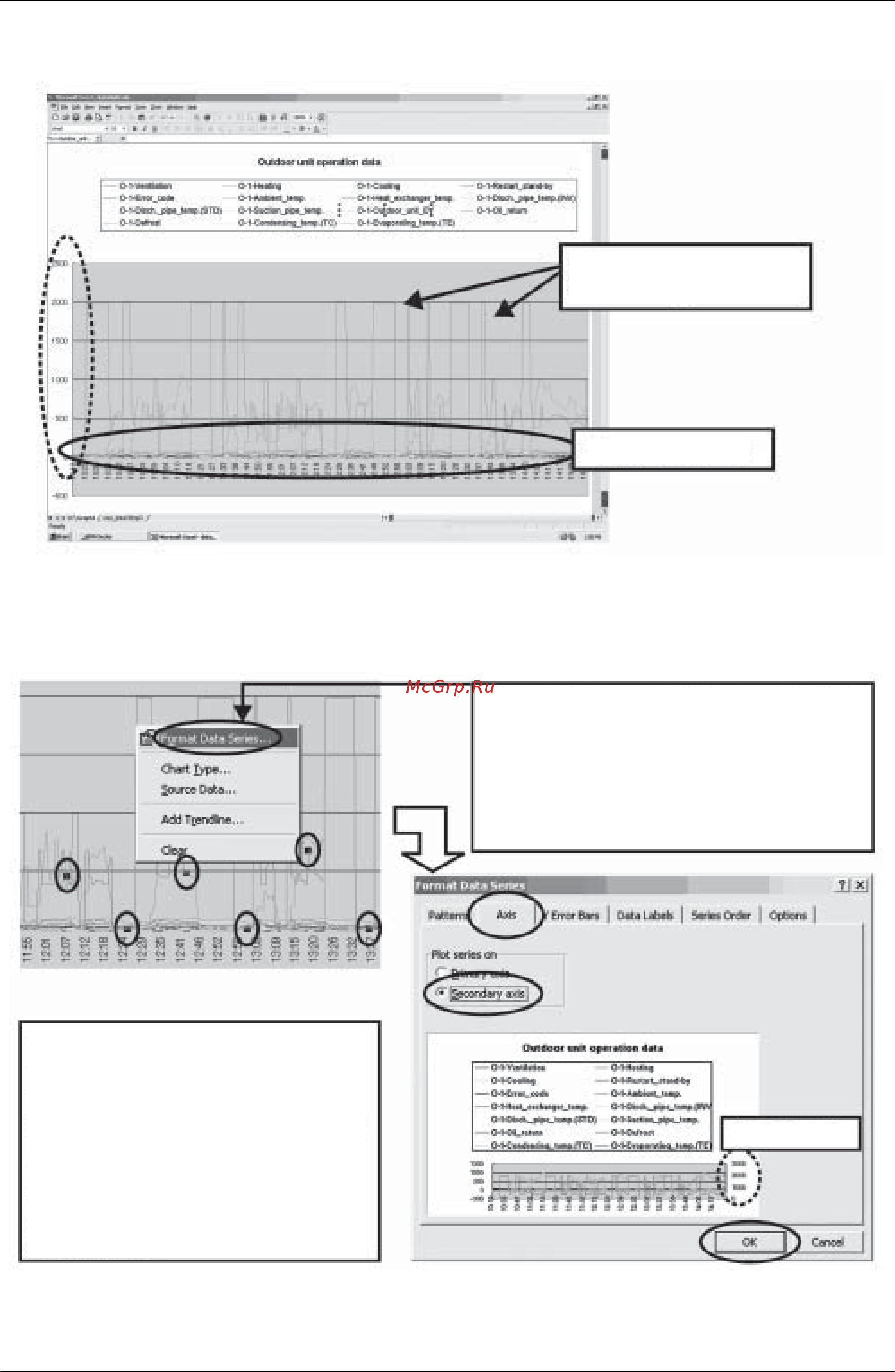

On the “Format DataSeries”, click on the
“Axis” and then check the “Secondary axis”
in the item of “plot series on”, and the graph
of electronic expansion valve will be plotted
on the secondary axis like the sample graph,
thus facilitating the reading of temparature
data. (If two or more EVsare mounted,
repeat the same procedu
re.)
Clicking on the graph line of the electronic expans
ion
valve will display a pointer on the line as shown and
marked with “O” in the left figure.
In thisstate, by right-clicking on the pointer, the
Window shown on the left will appear. Then, click on
“Format DataSeries”.
