2.4 CONNECTORS AND SLOTS

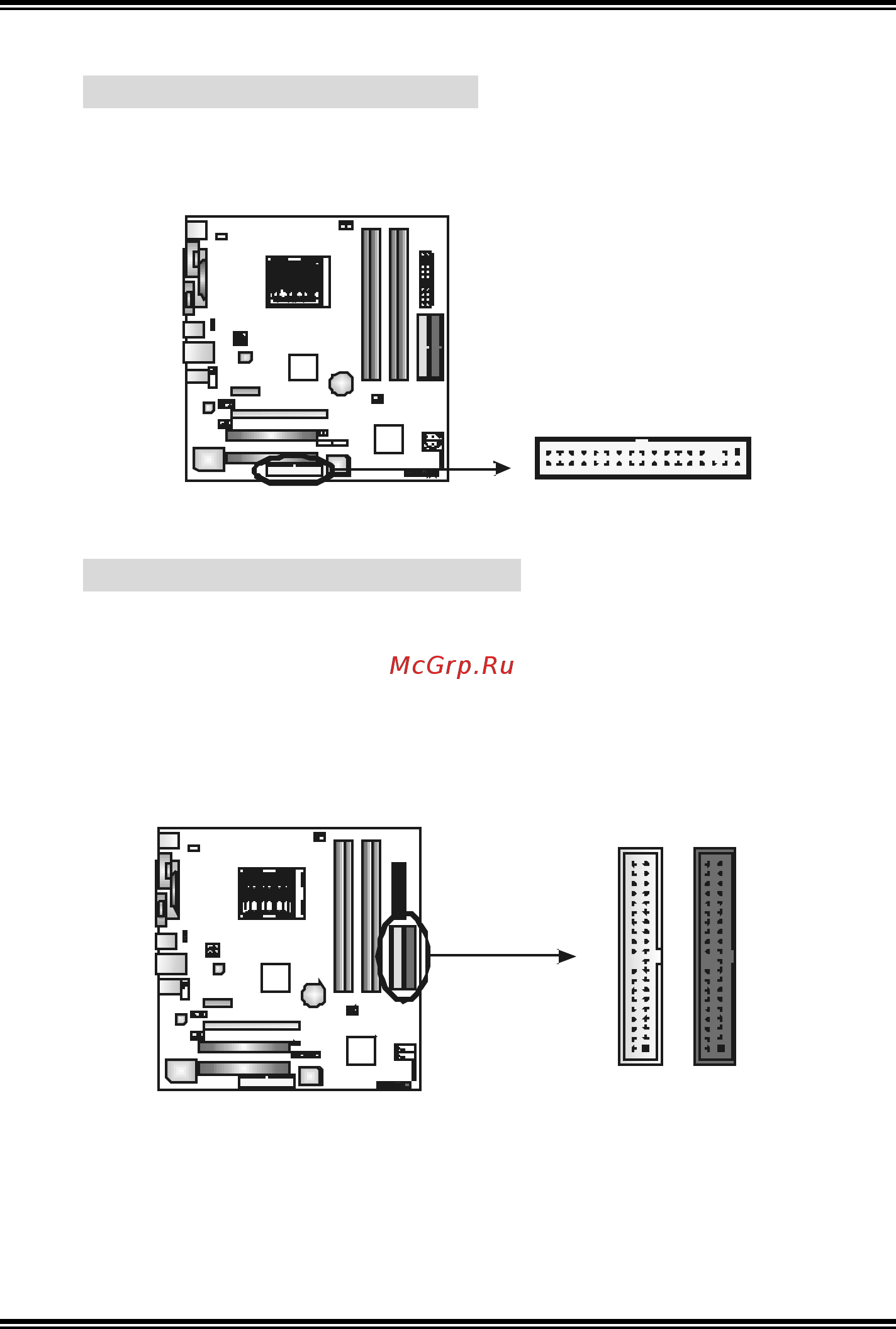

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

This connector supports the provided floppy drive ribbon cables.

234

IDE1/IDE2: Hard Disk Connectors

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so

you can connect up to four hard disk drives. The first hard drive

should always be connected to IDE1.

IDE1IDE2
