GeForce 6100-M9

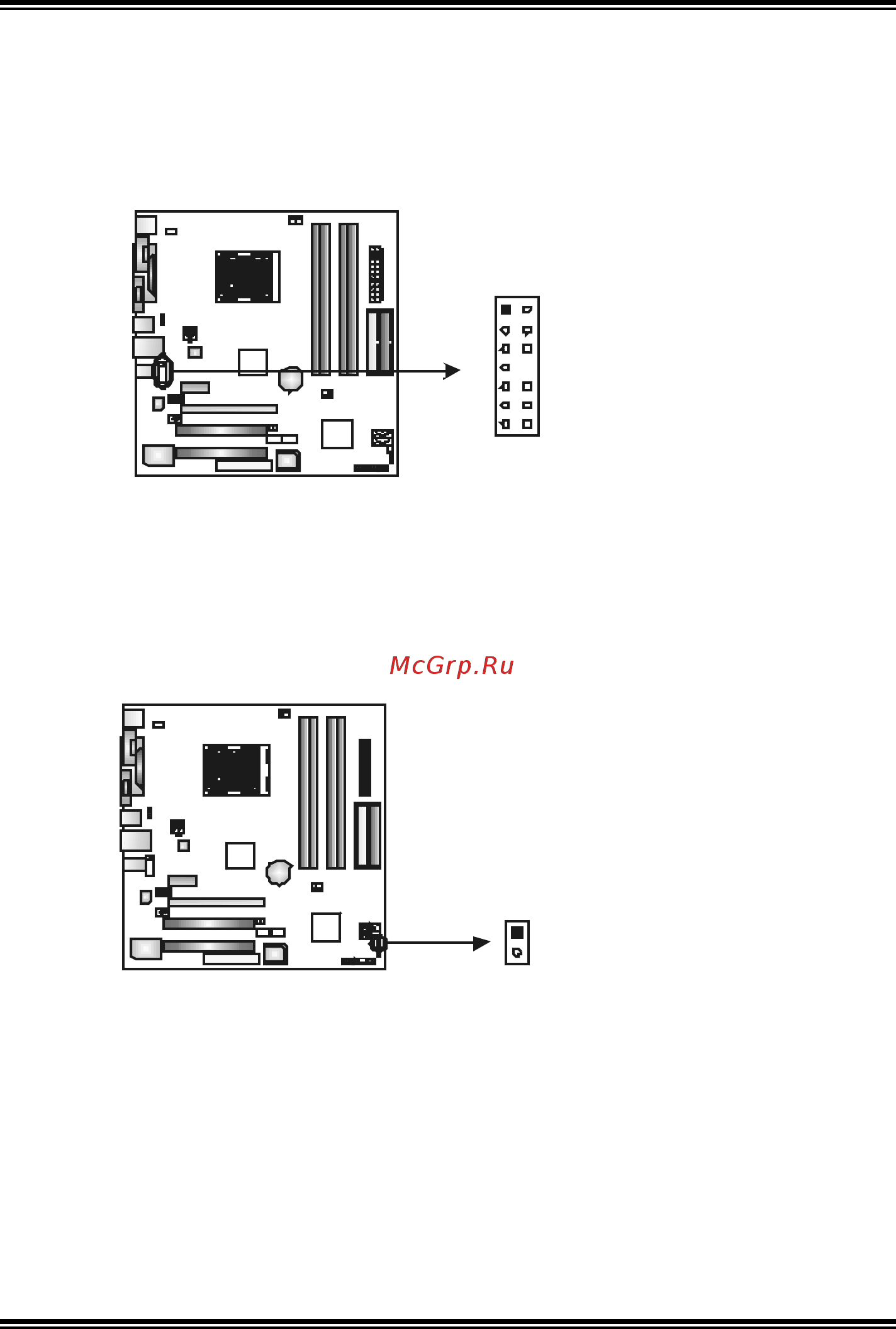

JAUDIO2: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC f ront

panel. It will disable the output on back panel audio connectors.

Pin Assignment

1 Mic-in/Stereo MIC-in R

2 Ground

3 Stereo MIC-in L

4 Audio power

5 Right line-out/

Speaker-out Right

6 Right line-out/

Speaker-out Right

7 Reserved

8 Key

9 Left line-out/

Speaker-out Left

10 Left line-out/

Speaker-out Left

11 Right line-in (optional)

12 Right line-in (optional)

13 Left line-in (optional)

14 Left line-in (optional)

JCI1: Chassis O pen Heade r

This connector allows system to monitor PC case open status. If the signal has

been triggered, it will record to the CMOS and show the message on next

boot-up.

Assignment

1 Case open signal

2 Ground
