Biostar GeForce 6100-M9 Версия 1.x [14/62] Geforce 6100 m9

GeForce 6100-M9

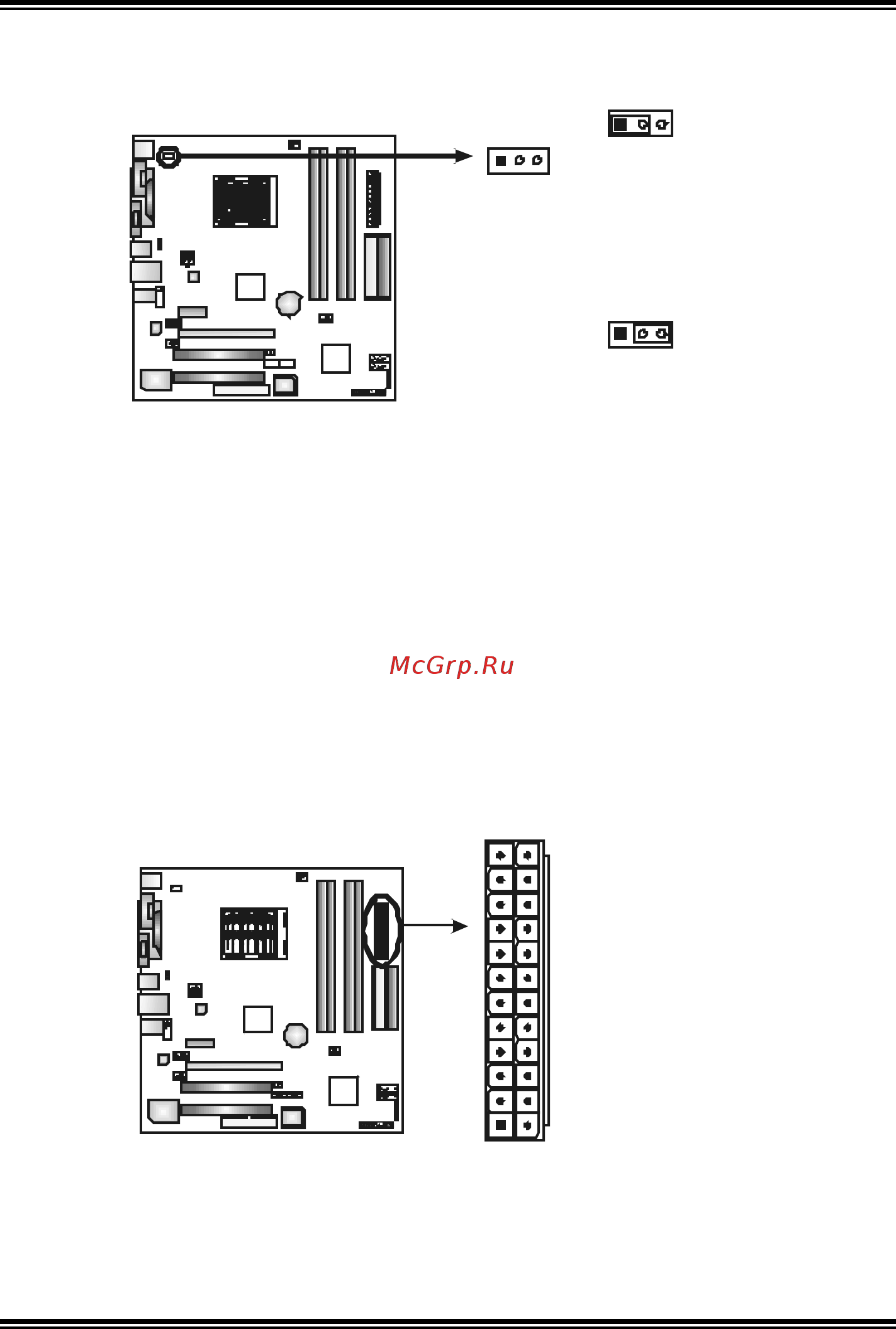

JKBV1: Power Source Header for PS/2 Keyboard and Mouse

Pin 1-2 Close

+5V for PS/2 keyboard and

mouse.

Pin 2-3 close

PS/2 keyboard and mouse are

voltage.

Note:

In order to support this f unc tion “Power-on s ystem via keyboar d and mouse”, “JKBV 1”

jumper cap should be plac ed on Pin 2-3.

JATXPWR1: ATX Power Source C onne ctor

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment

1 +3.3V

2 +3.3V

3 Ground

4 +5V

5 Ground

6 +5V

7 Ground

8 PW_OK

9 Standby Voltage

+5V

10 +12V

11 +12V

12 +3.3V

13 +3.3V

14 -12V

15 Ground

16 PS_ON

17 Ground

18 Ground

19 Ground

20 -5V

21 +5V

22 +5V

23 +5V

12 2 4

113

24 Ground
