GeForce 6100-M9

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUM PE RS

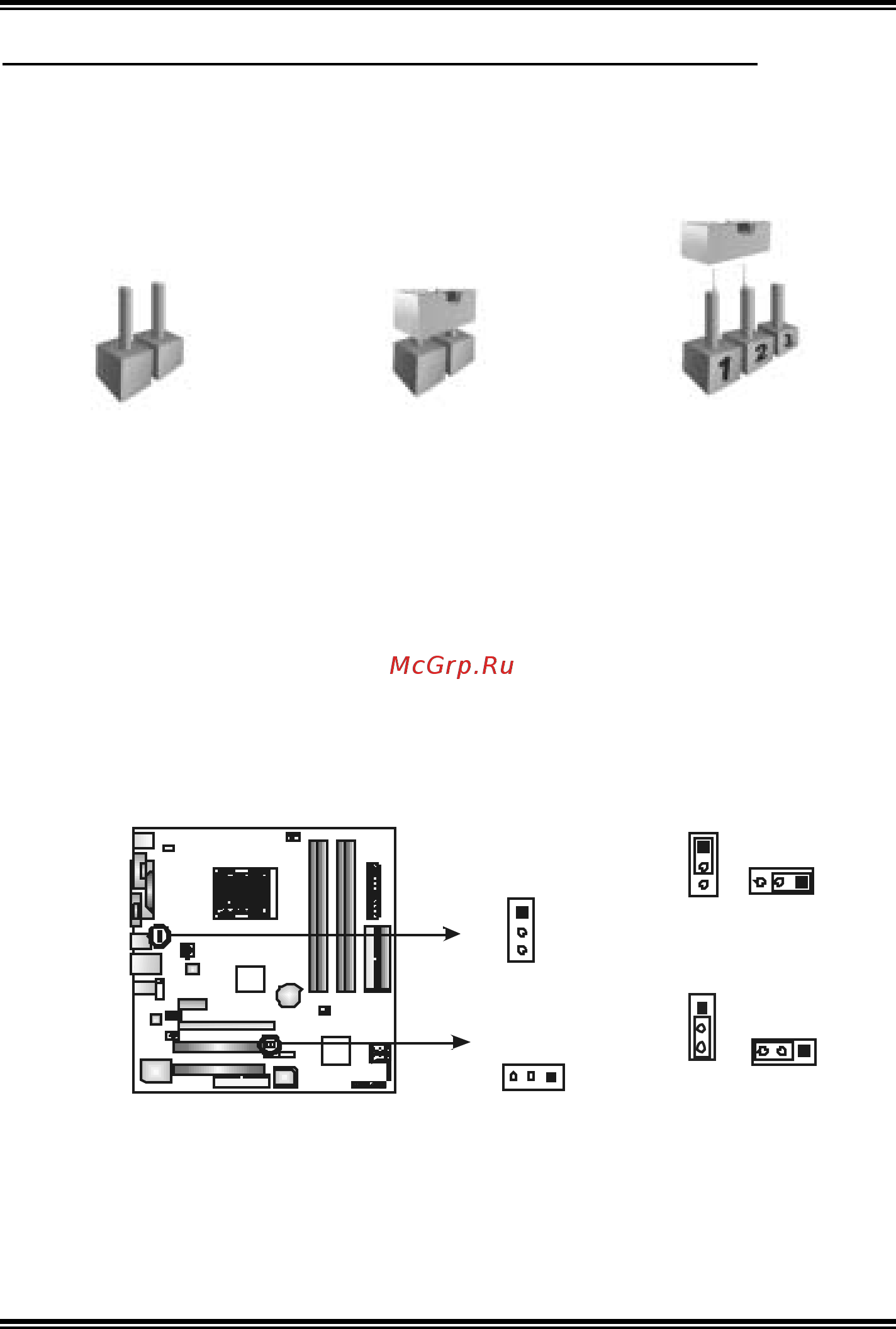

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

JUSBV1/JUSBV2: Powe r Source Heade rs for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at JUSB1 and JUSBLAN1.

JUSBV2: +5V for USB ports at front panel (JUSB2/JUSB3).

Pin 2-3 Close:

JUSBV1: USB ports at JUSB1 and JUSBLAN1 are powered by +5V

standby v oltage.

JUSBV2: USB ports at front panel (JUSB2/JUSB3) are powered by +5V

standby v oltage.

Pin 1-2 close (Default)

JUSBV1

JUSBV2

Pin 2-3 close

Note:

In order to s upport this f unction “Power-On system vi a USB devic e,” “JUSBV1/ JUSBV2”

jumper cap should be plac ed on Pin 2-3 indi viduall y.
