GeForce 6100-M9

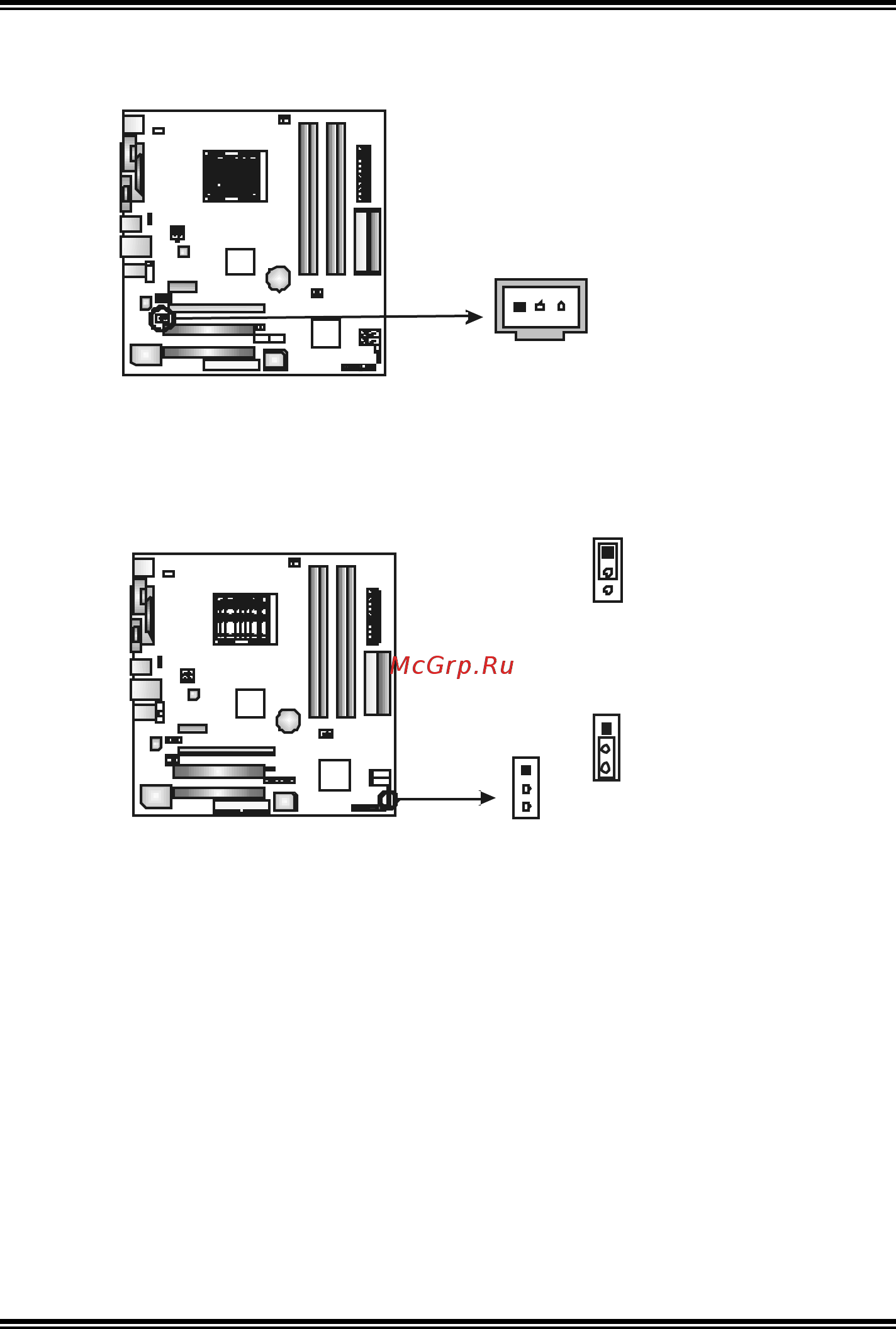

JSPDIF_O UT1: Digital Audio-out Conne ctor

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS saf e setting

and the CMOS data, please carefully f ollow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (Default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remov e AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset y our desired password or clear the CMOS data.
