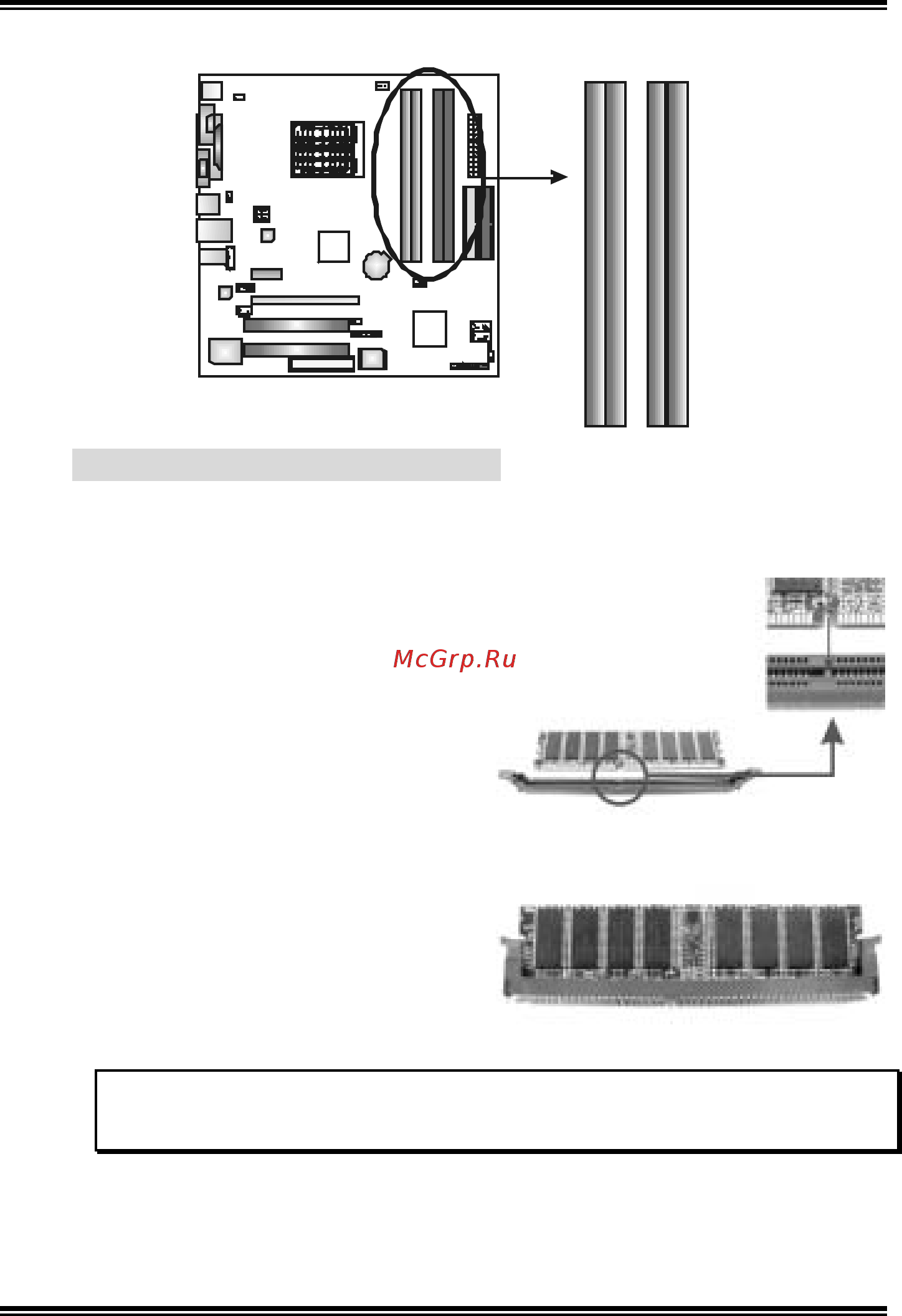

2.3 INSTALLING SYSTEM MEMORY

DIMMB1

DIMMB2

DIMMA1

DIMMA2

2.2.1 DDR M odule installation

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

Note:

To remove the DDR modul es, pus h the ejector tabs at both sides of the sl ot out ward at

the s ame ti me, and pull t he modul es out verticall y.
