Biostar GeForce 6100-M9 Версия 1.x [7/62] Chapter 2 hardware installation

GeForce 6100-M9

CHAPTER 2: HARDWARE INSTALLATION

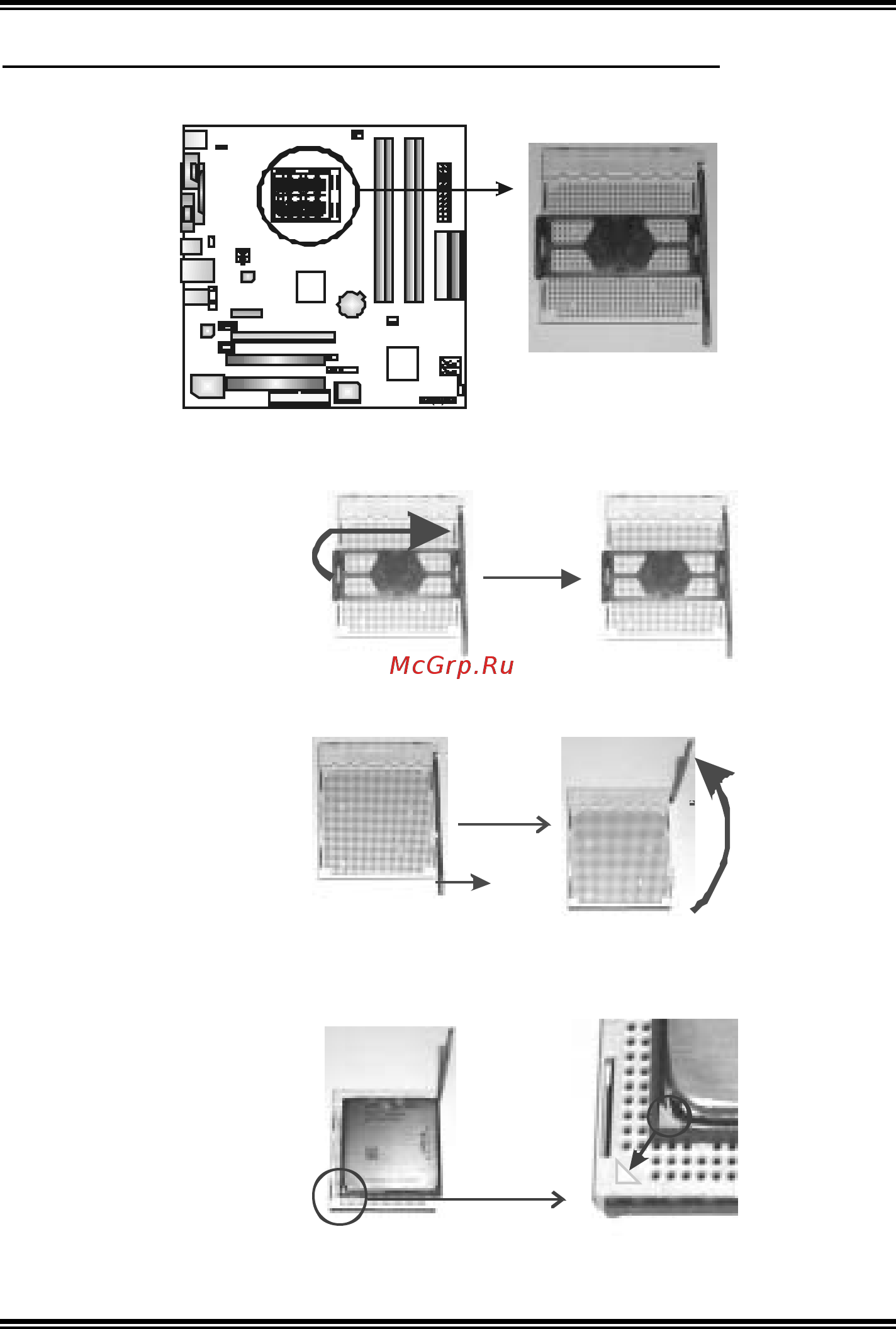

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point forwards this white triangle. The CPU will fit

only in the correct orientation.
