NF4-A9A / NF4 Ultra-A9A

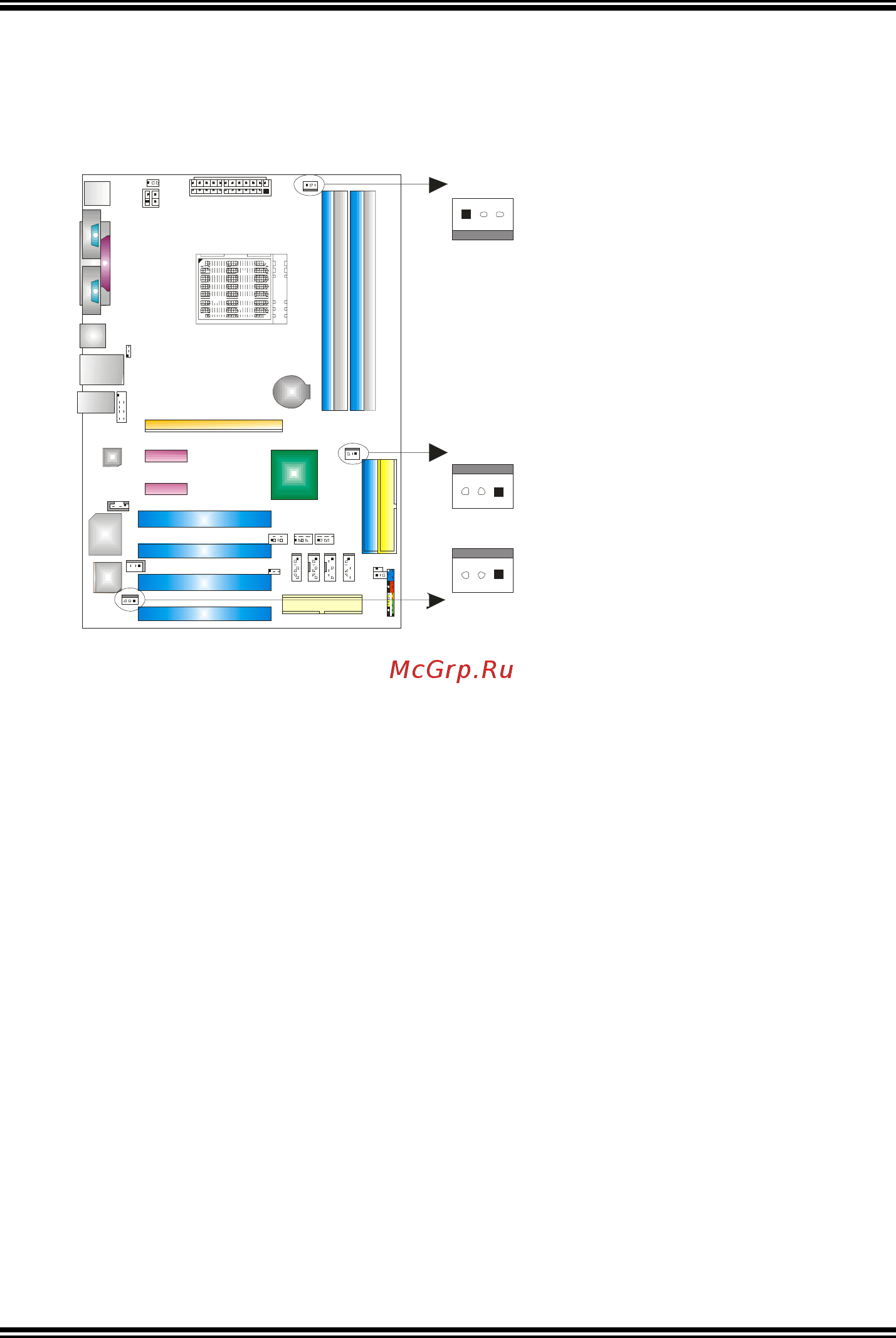

2.2 FAN HEADERS

CPU FAN Power Header: JCFAN1

System Fan Power Header: JSFAN1

Northbridge Fan Power Header: JNBFAN1

Pin Assignment

1 Ground

2 +12V

JCFAN1

JSFAN1

JNBFAN1

3 FAN RPM rate sense

(Only for JCFAN1 and

JSFAN1.)

Note:

The JCFAN1 and JSFAN1 reserve system cooling fan with Smart Fan Control utility. It

supports 3 pin head connector. When connecting with wires onto connectors, please note

that the red wire is the positive and should be connected to pin#2, and the black wire is

Ground and should be connected to GND.
