NF4-A9A / NF4 Ultra-A9A
26
8 PC Health Status

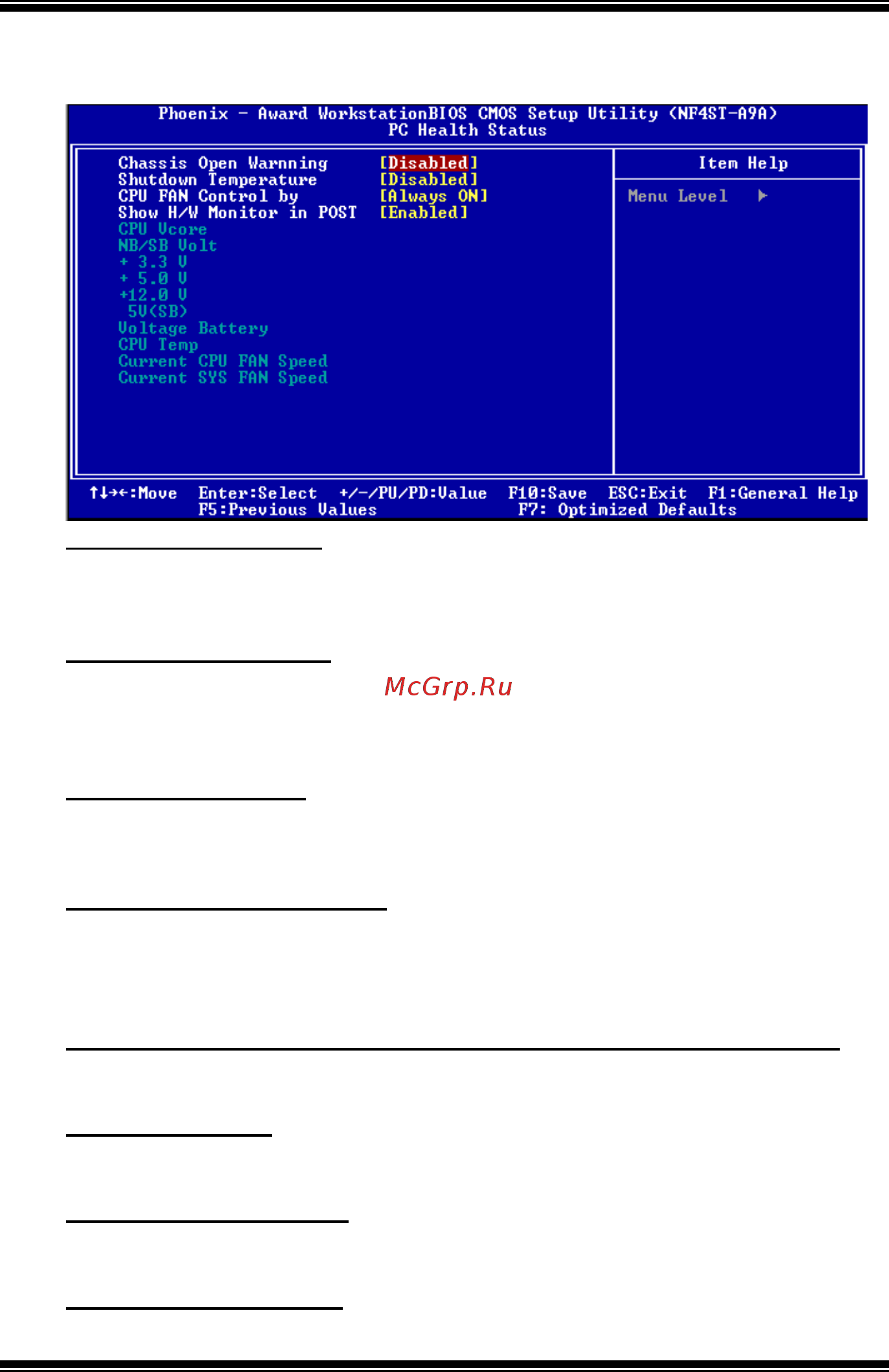

Figure 8. PC Health Status
Chassis Open Warning
This item allows you to enable or disable Chassis Open Warning beep.
The Choices: Disabled (default), Enabled.
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature. This item only
effective under Windows 98 ACPI mode.
The Choices: Disabled (default), 60 /140F, 65 /149F, 70 /158F .
CPU FAN Control by
The Choice “smart” can make your CPU FAN to reduce noise.
The Choices: SMART, Always On (default).
Show H/W Monitor in POST
If your computer contains a monitoring system, it will show PC health status during
POST stage. The item offers several delay time for you to choose.
The Choices: Enabled (default), Disabled.
CPU Vcore,NB/SB Volt,+3.3V,+5.0V, +12.0V, 5V(SB),Voltage Battery
Detect the system’s voltage status automatically.
CPU Temperature
This field displays the current temperature of the CPU.
Current CPU FAN Speed
This field displays the current speed of CPU fan.
Current SYS FAN Speed
This field displays the current speed SYSTEM fan.
