NF4-A9A / NF4 Ultra-A9A

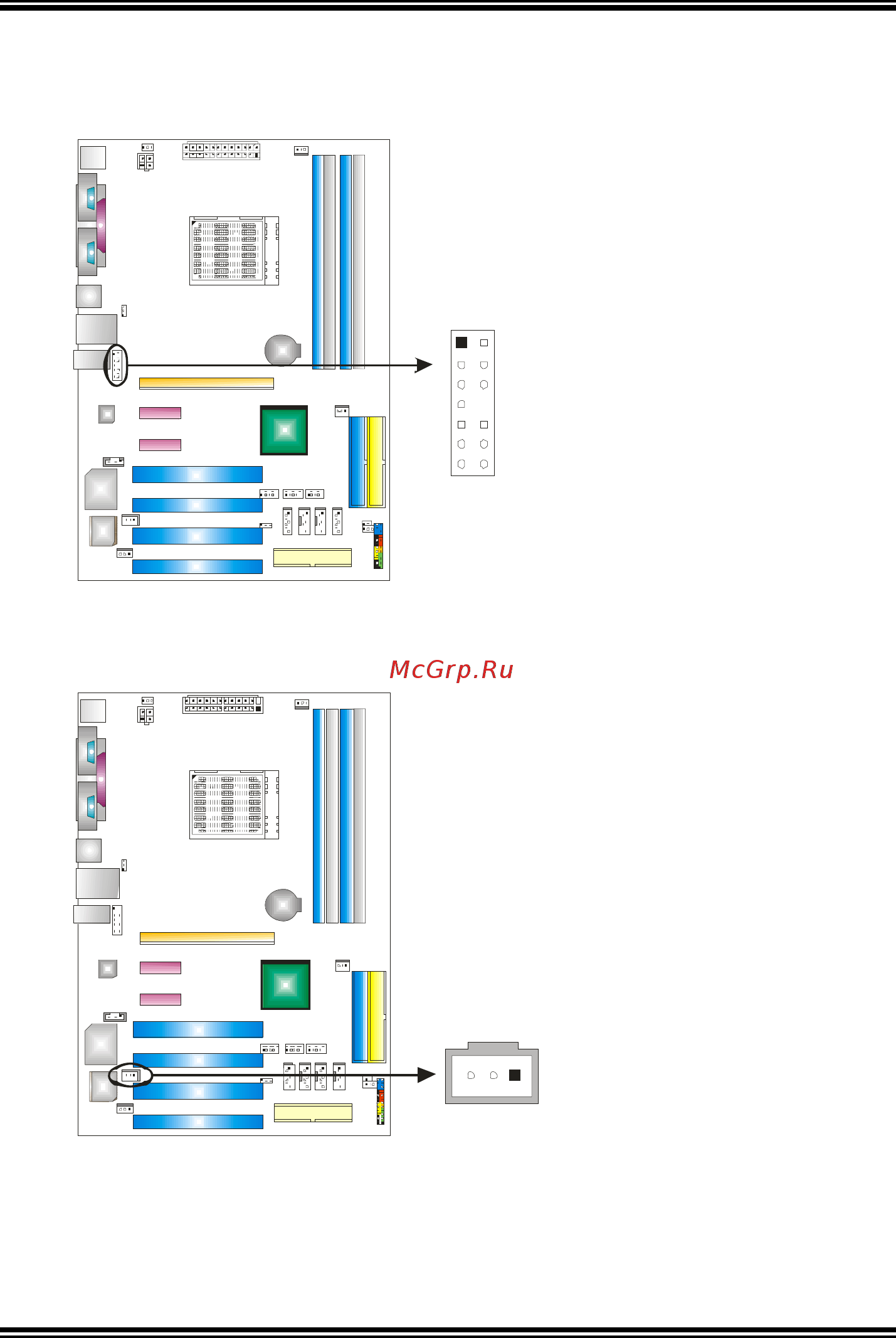

Front Panel Audio-out Header: JAUDIO1

This connector will allow user to connect with the front audio out put headers on

the PC case. It will disable the output on back panel audio connectors.

Pin Assignment

1 MIC-in/

Stereo MIC-in R

2 Ground

3 Stereo MIC-in L

4 Audio power

5 Right line-out/

Speaker-out Right.

6 Right line-out/

Speaker-out Right

7 Reserved

8 Key

9 Left line-out/

Speaker-out Left

10 Left line-out/

Speaker-out Left

11 Right line-in (optional)

12 Right line-in (optional)

13 Left line-in (optional)

14 Left line-in (optional)

Digital Audio-out Connector: JSPDIF_OUT

This connector allows user to connect the PCI bracket SPDIF output header.

Pin Assignment

1 +5V

2 SPDIF OUT

3 Ground
