Biostar NF4-A9A Версия 1.2 [11/62] Memory modules installation

NF4-A9A / NF4 Ultra-A9A

2.3 MEMORY MODULES INSTALLATION

DIMM1

DIMM3

DIMM2

DIMM4

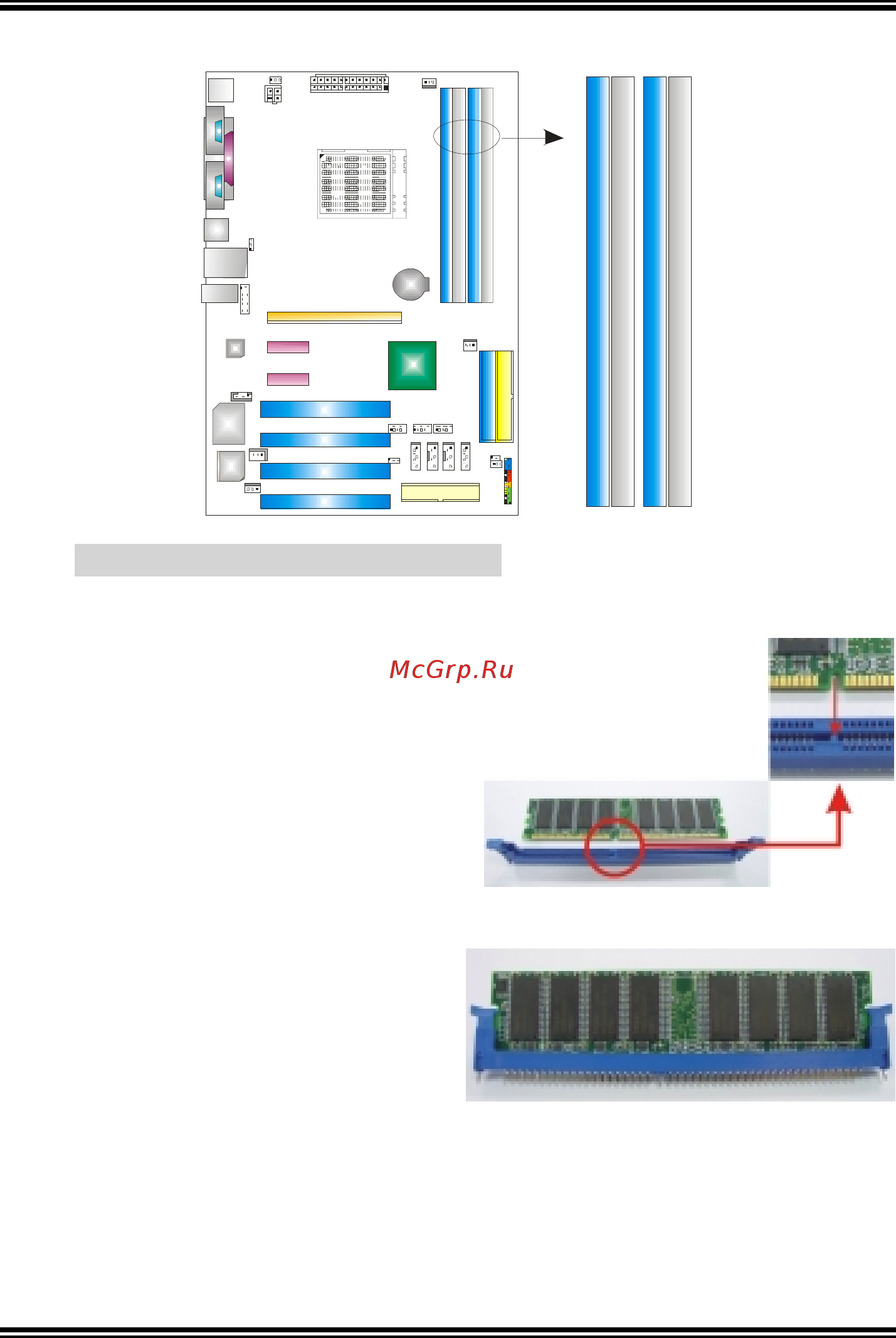

2.3.1 DDR Module installation

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on

the slot such that the notch on the DIMM matches the break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap

back in place and the DIMM is properly seated.
