NF4-A9A / NF4 Ultra-A9A

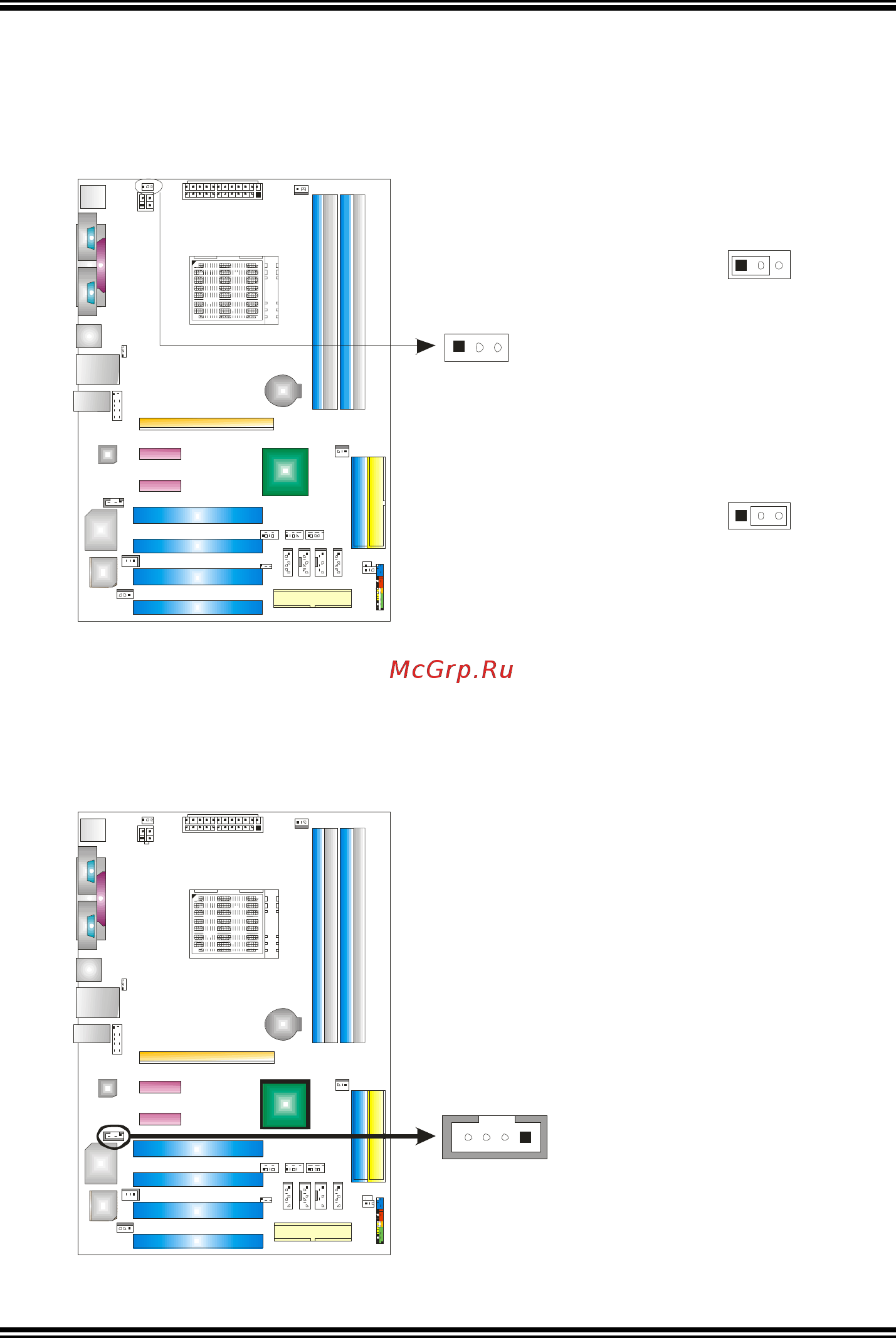

Power Source Header for PS/2 Keyboard/Mouse: JKBMSV1

Pin 1-2 Close: +5V for PS/2 keyboard and mouse.

Pin 2-3 Close: PS/2 keyboard and mouse are powered with +5V standby

voltage.

Pin 1-2 Close

(Default)

Pin 2-3 Close

Note: In order to support this function “Power-on system via keyboard and mouse”,

“JKBMSV1” jumper cap should be placed on Pin 2-3.

CD-ROM Audio-in Connector: JCDIN1

This connector allows user to connect the audio source from the variety devices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left channel input

2 Ground

3 Ground

4 Right channel input
