NF4-A9A / NF4 Ultra-A9A

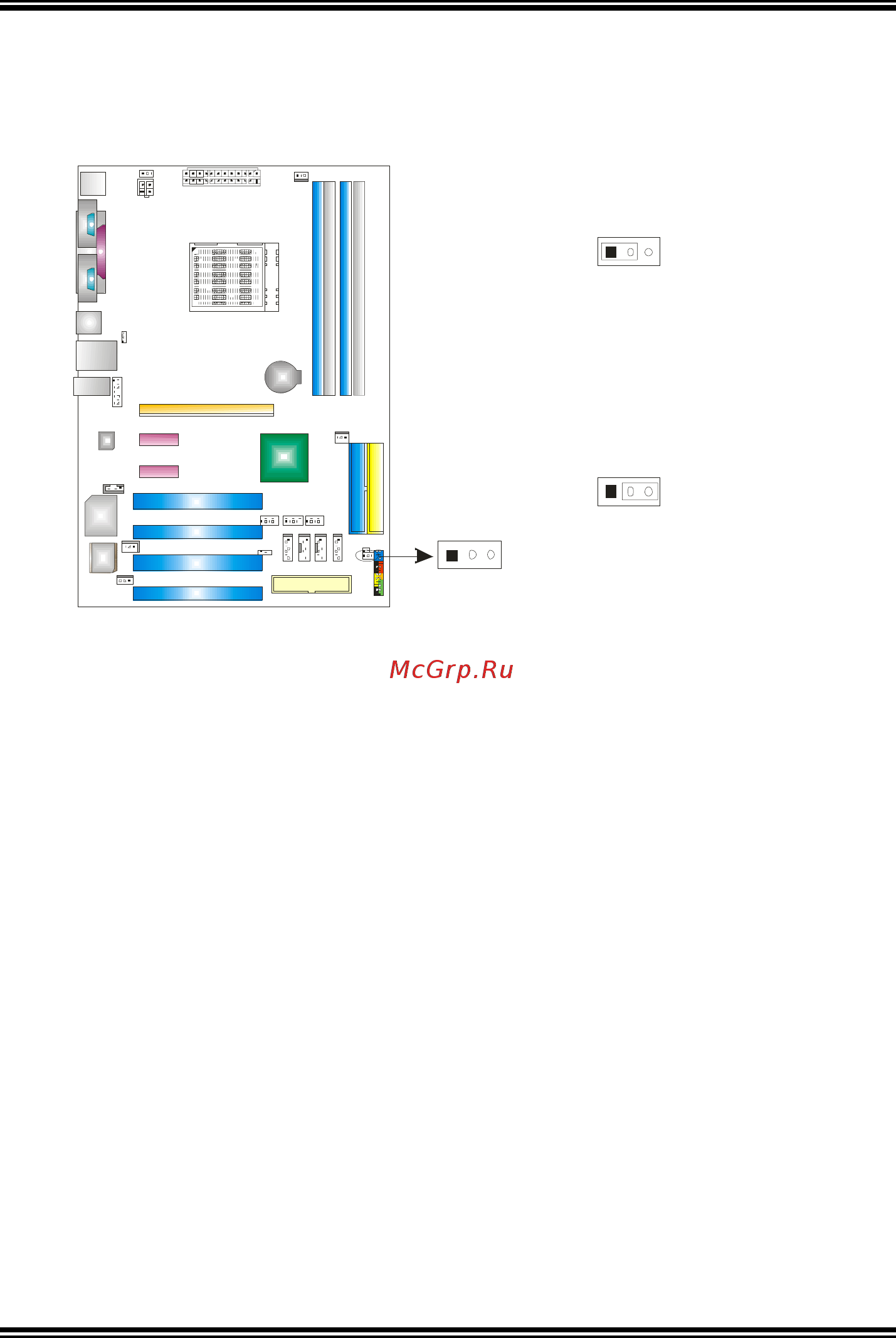

Clear CMOS Header: JCMOS1

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting

and the CMOS data, please carefully follow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (Default).

Pin 2-3 Close:

Clear CMOS data.

Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 Close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 Close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.
