Biostar NF4-A9A Версия 1.2 [8/62] Chapter 2 hardware installation

NF4-A9A / NF4 Ultra-A9A

CHAPTER 2: HARDWARE INSTALLATION

2.1 CENTRAL PROCESSING UNIT (CPU)

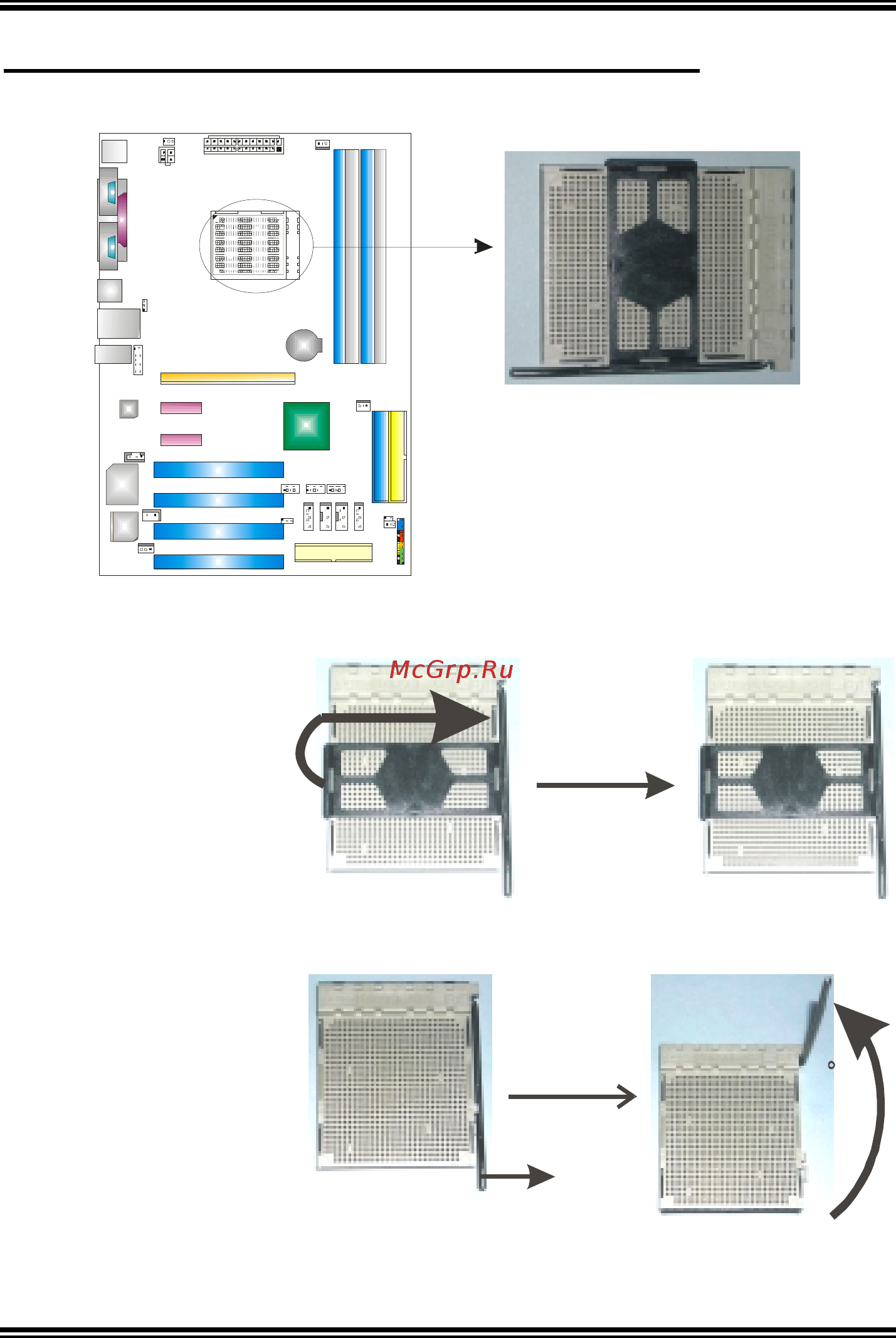

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the lever up

to a 90-degree angle.
