NF4-A9A / NF4 Ultra-A9A

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories.

Each category includes no, one or more than one setup items. Use the arrow

keys to highlight the item and then use the<PgUp> or <PgDn> keys to select

the value you want in each item.



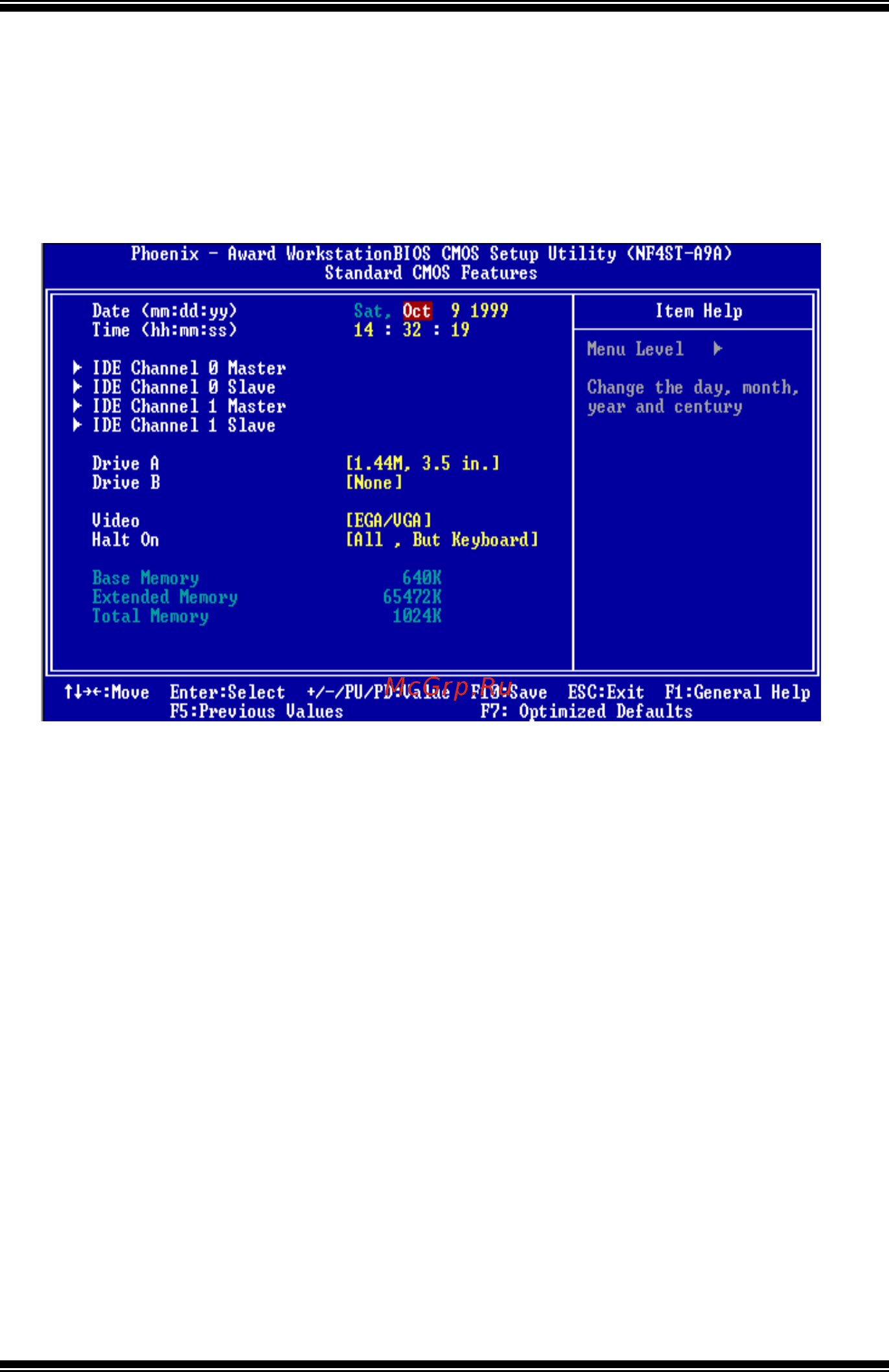

Figure 2: Standard CMOS Setup
