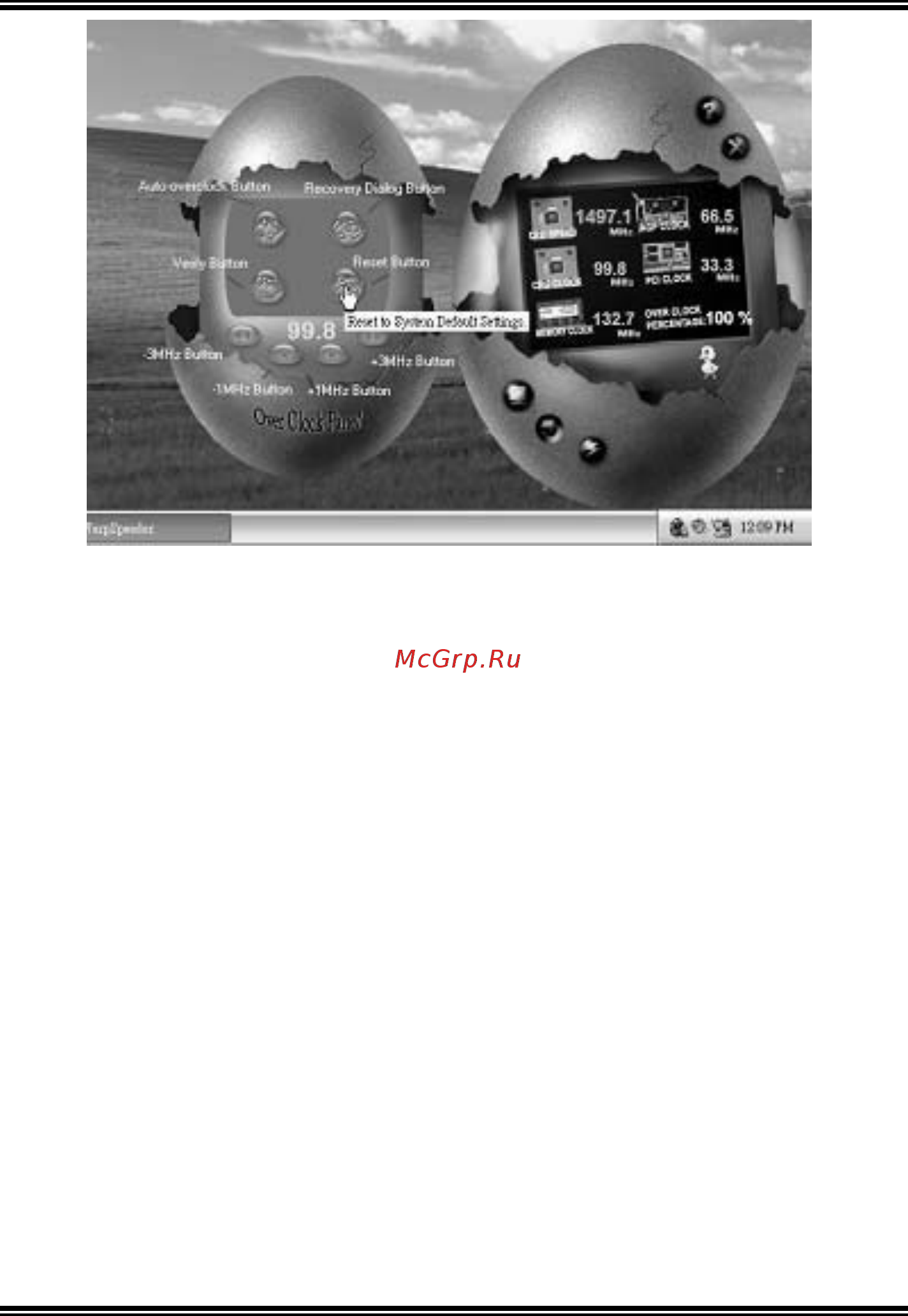

Overclock Panel contains the these features:

a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz

button”: provide user the ability to do real-time overclock

adjustment.

Warning:

Manually overclock is potentially dangerous, especially when the

ov erclocking percentage is over 110 %. We strongly recommend you

v erify ev ery speed you overclock by click the Verify button. Or, you

can just click Auto ov erclock button and let [WarpSpeeder™]

automatically gets the best result f or y ou.

b. “Recovery Dialog button”: Pop up the following dialog. Let user

select a restoring way if system need to do a fail-safe reboot.
