4. Overclock Panel

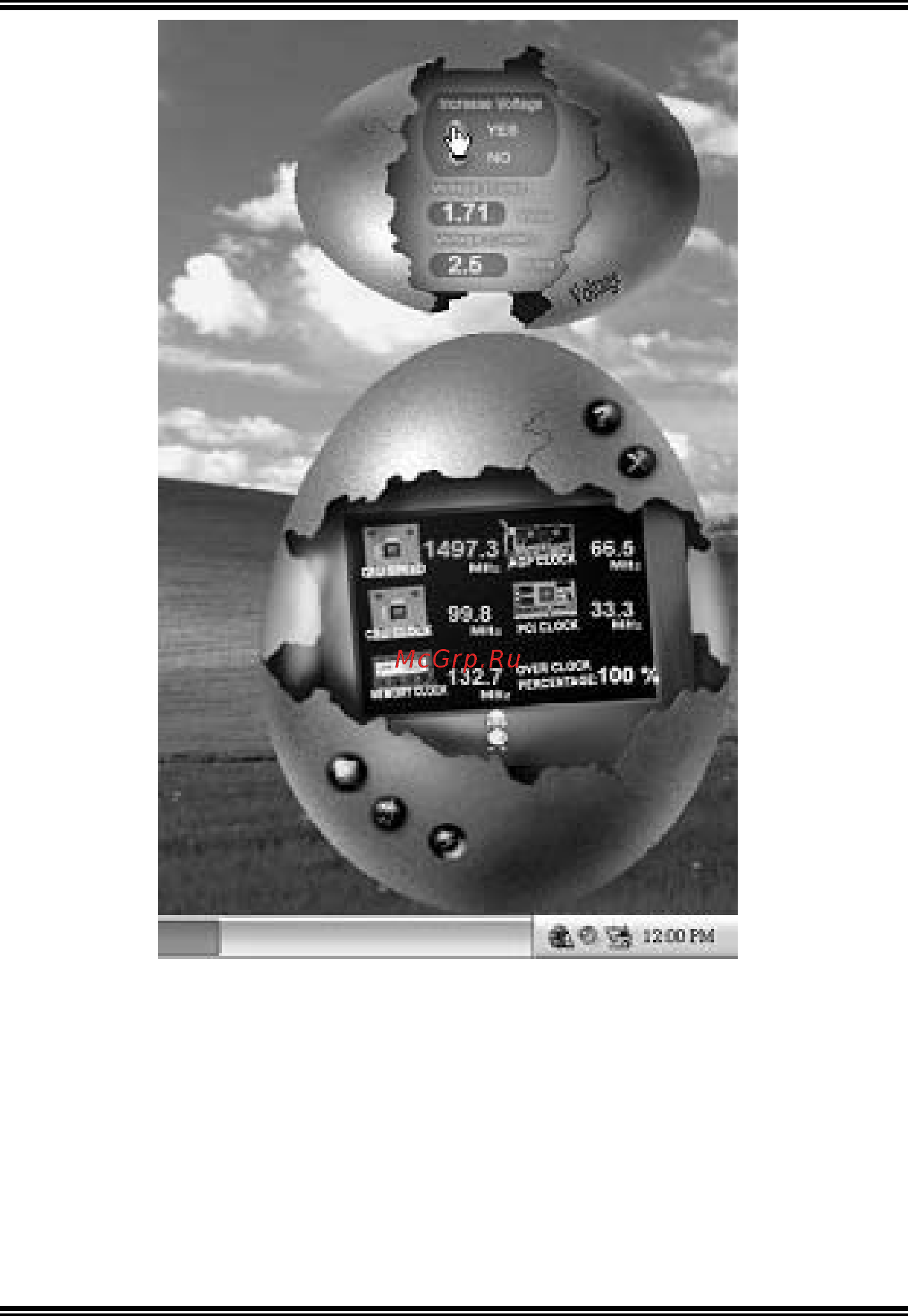

Click the Overclock button in Main Panel, the button will be

highlighted and the Overclock Panel will slide out to left as the

following figure.
