Biostar A68N-2100E Версия 6.X [35/51] 第二章硬件安装

Biostar A68N-2100K Версия 6.1 [35/51] 第二章硬件安装

第二章: 硬件安装 | 7

A68N-2100E / A68N-2100K / A68N-2100X / A68N-5600E

第二章: 硬件安装

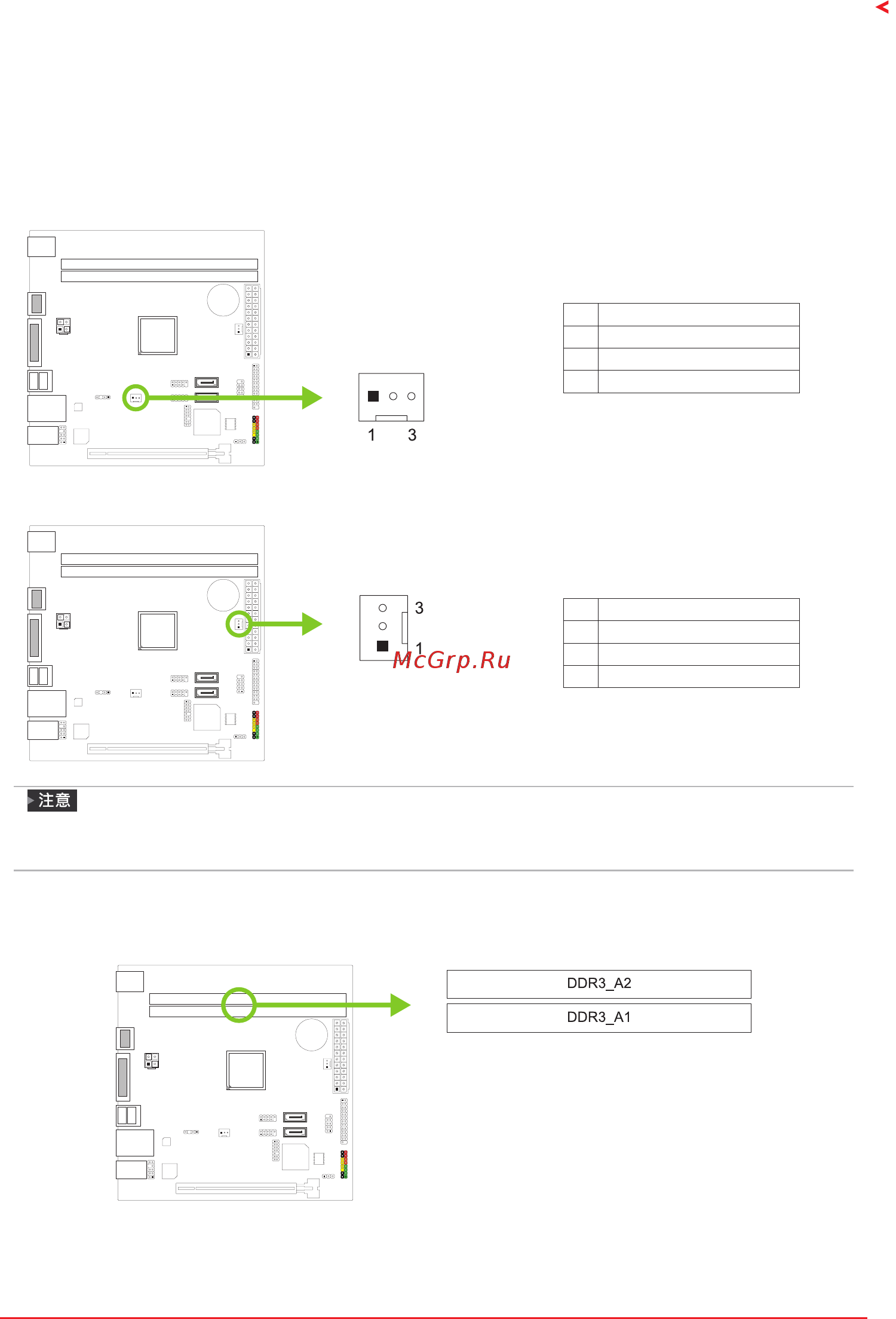

2�1 风扇接头

此风扇接头支持电脑内置的冷却风扇，风扇引线和插头可能因制造商而异。

CPU_FAN1: CPU 风扇接头

针定义

1 接地

2 +12V

3 FAN RPM rate sense

SYS_FAN1: 系统风扇接头

针定义

1 接地

2 Linear FAN Control

3 FAN RPM rate sense

CPU_FAN1、SYS_FAN1支持3针脚接口；接线时请注意红线是正极需接到第二个针脚，黑线接地

需接到GND针脚。

2�2 系统内存

DDR3/ DDR3L内存模组
