Biostar A68N-2100E Версия 6.X [39/51] 5 接口和插槽

第二章: 硬件安装 | 11

A68N-2100E / A68N-2100K / A68N-2100X / A68N-5600E

2�5 接口和插槽

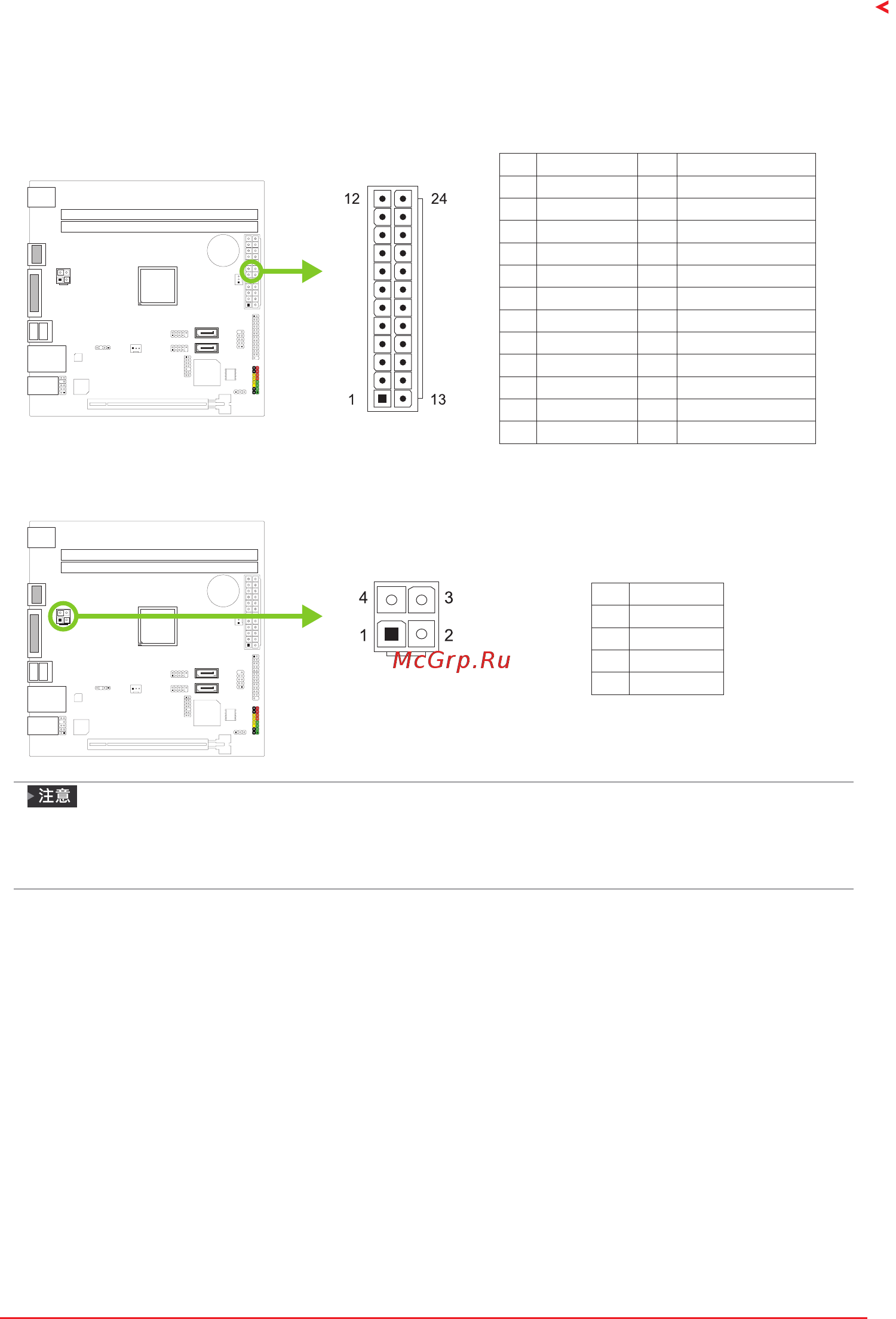

ATXPWR1: ATX电源接口

为了更好的兼容性，我们建议使用标准的ATX24-pin电源供应此接口的电源。

针定义针定义

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 接地 3 接地

16 PS_ON 4 +5V

17 接地 5 接地

18 接地 6 +5V

19 接地 7 接地

20 NC 8 PW_OK

21 +5V 9 唤醒电压+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 接地 12 +3.3V

ATXPWR2: ATX电源接口

此接口给CPU电路提供+12V电压。

针定义

1 +12V

2 +12V

3 接地

4 接地

开机前，请确保ATXPWR1和ATXPWR2接口都已插上电源。

电压不足可能导致系统不稳或者外围设备不能正常运行。当配置使用大功率设备的系统时，建议

您使用带有大功率输出的电源。
