Biostar A68N-2100E Версия 6.X [40/51] Panel 前置面板接头

12 | 第二章: 硬件安装

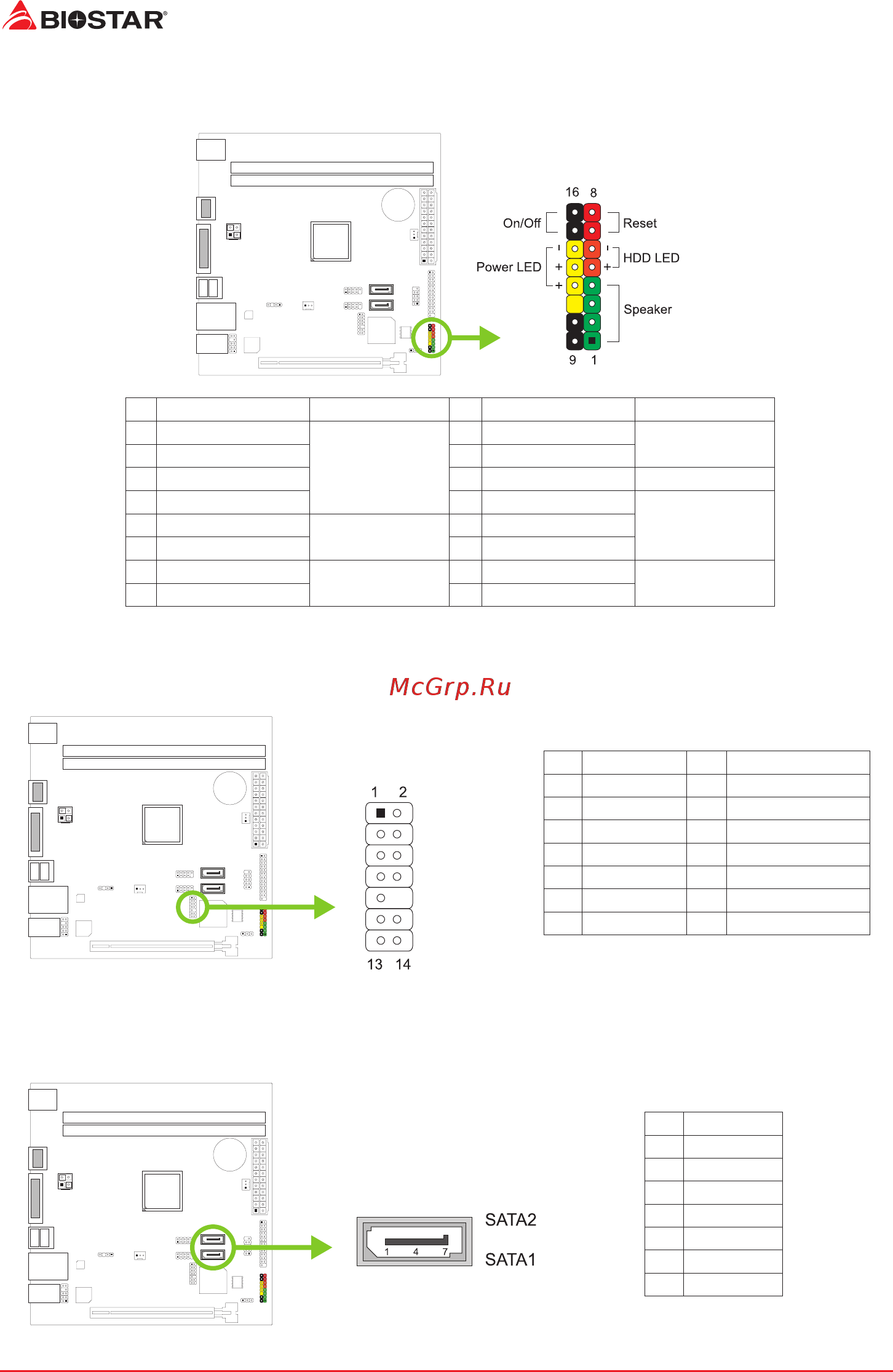

PANEL: 前置面板接头

此16针脚接口包含开机，重启，硬盘指示灯，电源指示灯和扬声器接口。

针定义功能针定义功能

1 +5V

扬声器接口

9 N/A

N/A

2 N/A 10 N/A

3 N/A 11 N/A N/A

4 扬声器 12 Power LED (+)

电源指示灯5 HDD LED (+)

硬盘指示灯

13 Power LED (+)

6 HDD LED (-) 14 Power LED (-)

7 接地

重启按钮

15 电源按钮

开机按钮

8 Reset control 16 接地

TPM1: TPM接头

此接头可连接可信任安全平台模组系统，可用来储存金钥、认证与资料，并增加网路安

全性。

针定义针定义

1 F_LAD0 2 +3V

3 F_LAD1 4 +3V

5 F_LAD2 6 C_PCICLK_TPM

7 F_LAD3 8 GND

9 F_FRAME# 10 NC

11 F_SERIRQ 12 S_PCIRST#_TBD

13 F_CLKRUN 14 +3VSB

SATA1/2: 串行ATA 6�0 Gb/s 接口

此接口通过SATA数据线连接SATA硬盘。

针定义

1 接地

2 TX+

3 TX-

4 接地

5 RX-

6 RX+

7 接地
