Biostar A68N-2100E Версия 6.X [36/51] 内存容量

8 | 第二章: 硬件安装

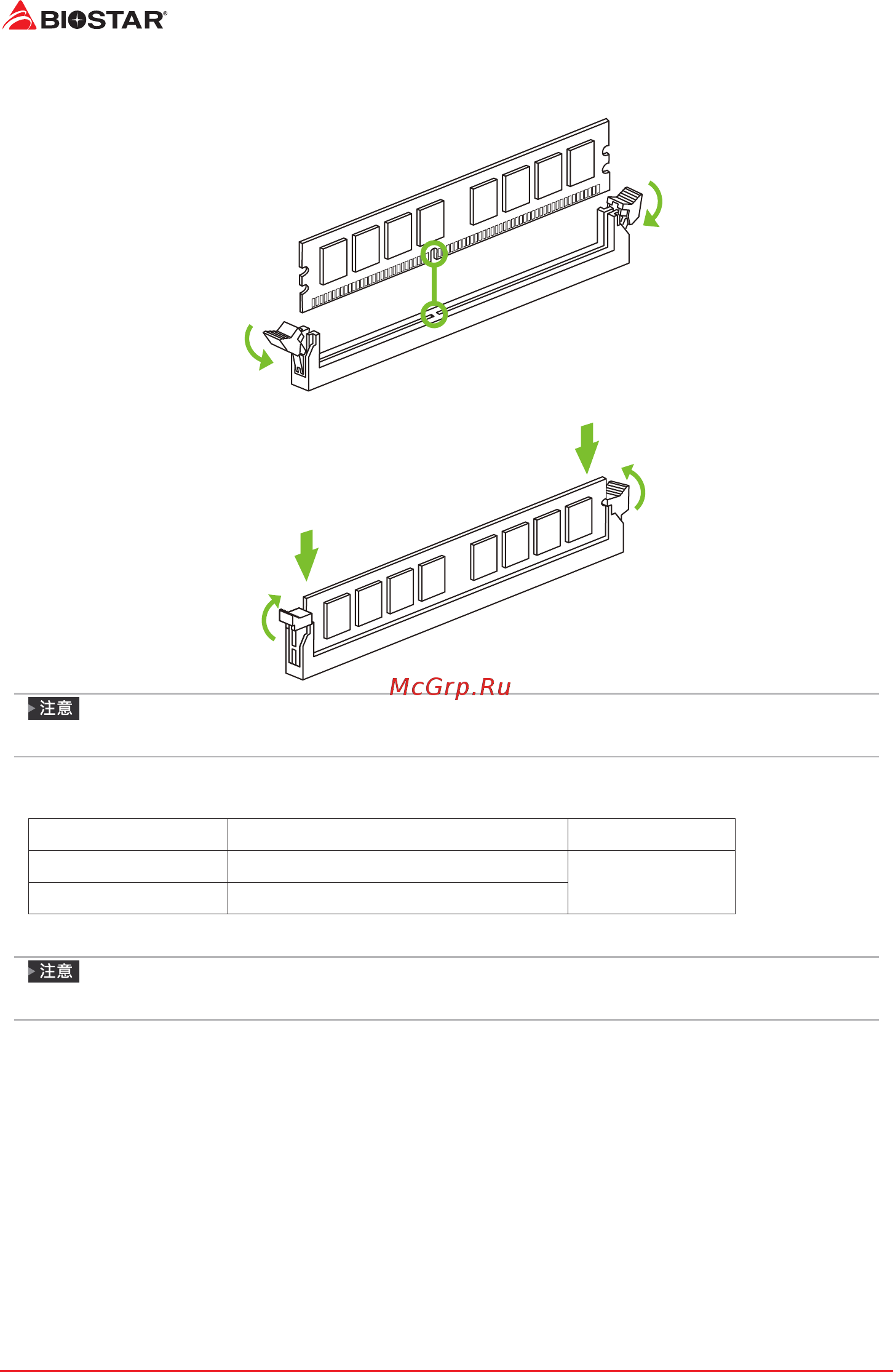

步骤1: 向外推开固定夹，打开DIMM插槽。将DIMM按顺序放在插槽上， DIMM上的切

口须与插槽凹口匹配。

步骤2: 垂直插入DIMM并固定好，直到固定夹跳回原位，DIMM就位。

如果DIMM未顺利插入，请勿强行按压。将DIMM拔出，再重插一次。

内存容量

DIMM插槽位置 DDR3/ DDR3L模组总内存

DDR3_A1 512MB/1GB/2GB/4GB/8GB

最大为 16GB.

DDR3_A2 512MB/1GB/2GB/4GB/8GB

当安装多个内存模块時，我们建议使用相同品牌和容量的内存於主板上。
