8 | Chapter 2: Hardware installaon

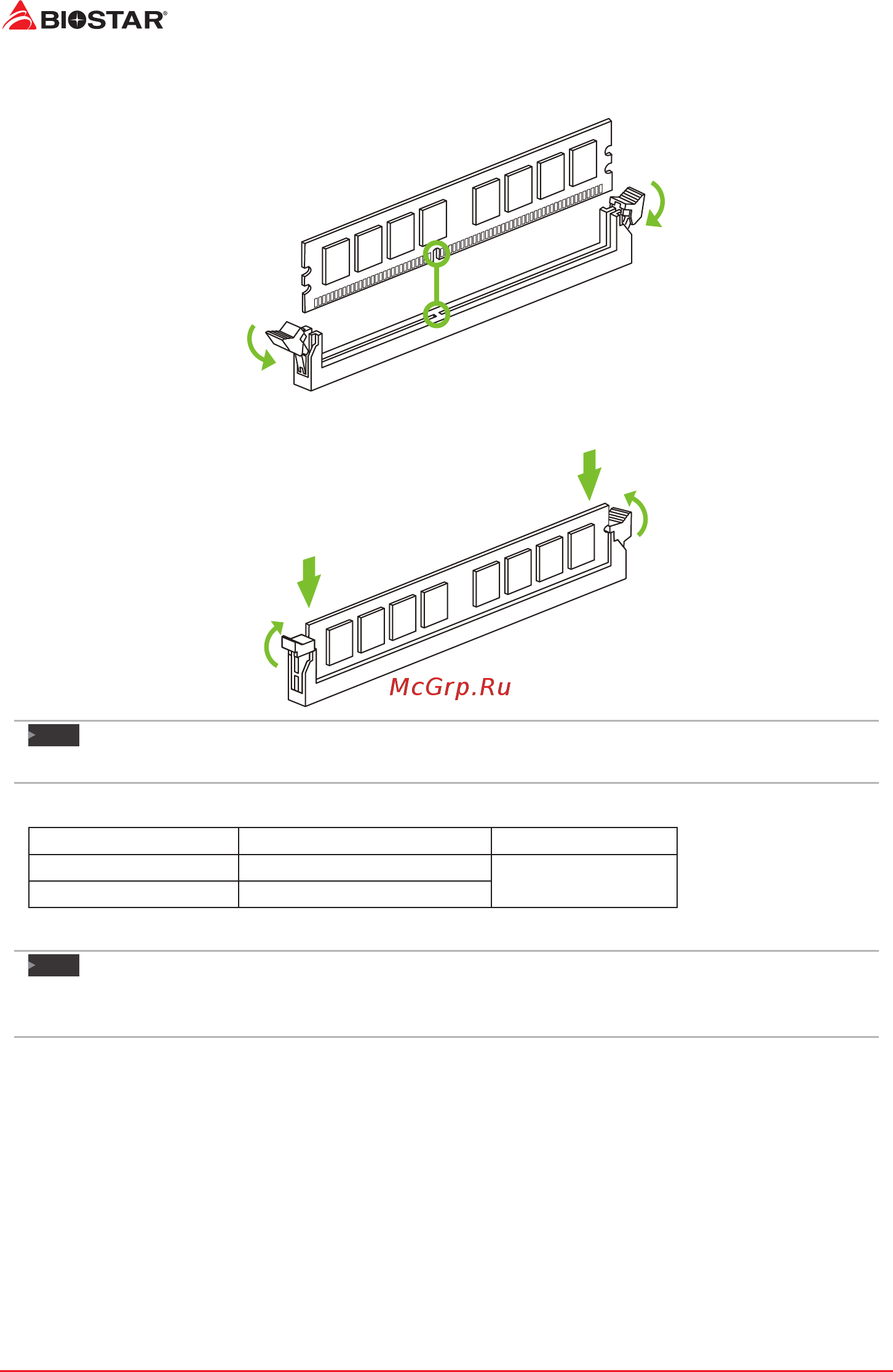

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot

such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vercally and rmly into the slot unl the retaining clips snap back in

place and the DIMM is properly seated.

Note

 IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.

Memory Capacity

DIMM Socket Locaon DDR3/ DDR3L Module Total Memory Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB

Max is 16GB.

DDR3_A2 512MB/1GB/2GB/4GB/8GB

Note

 Wheninstallingmorethanonememorymodule,werecommendtousethesamebrandand

capacitymemoryonthismotherboard.
