2.3 Expansion Slots

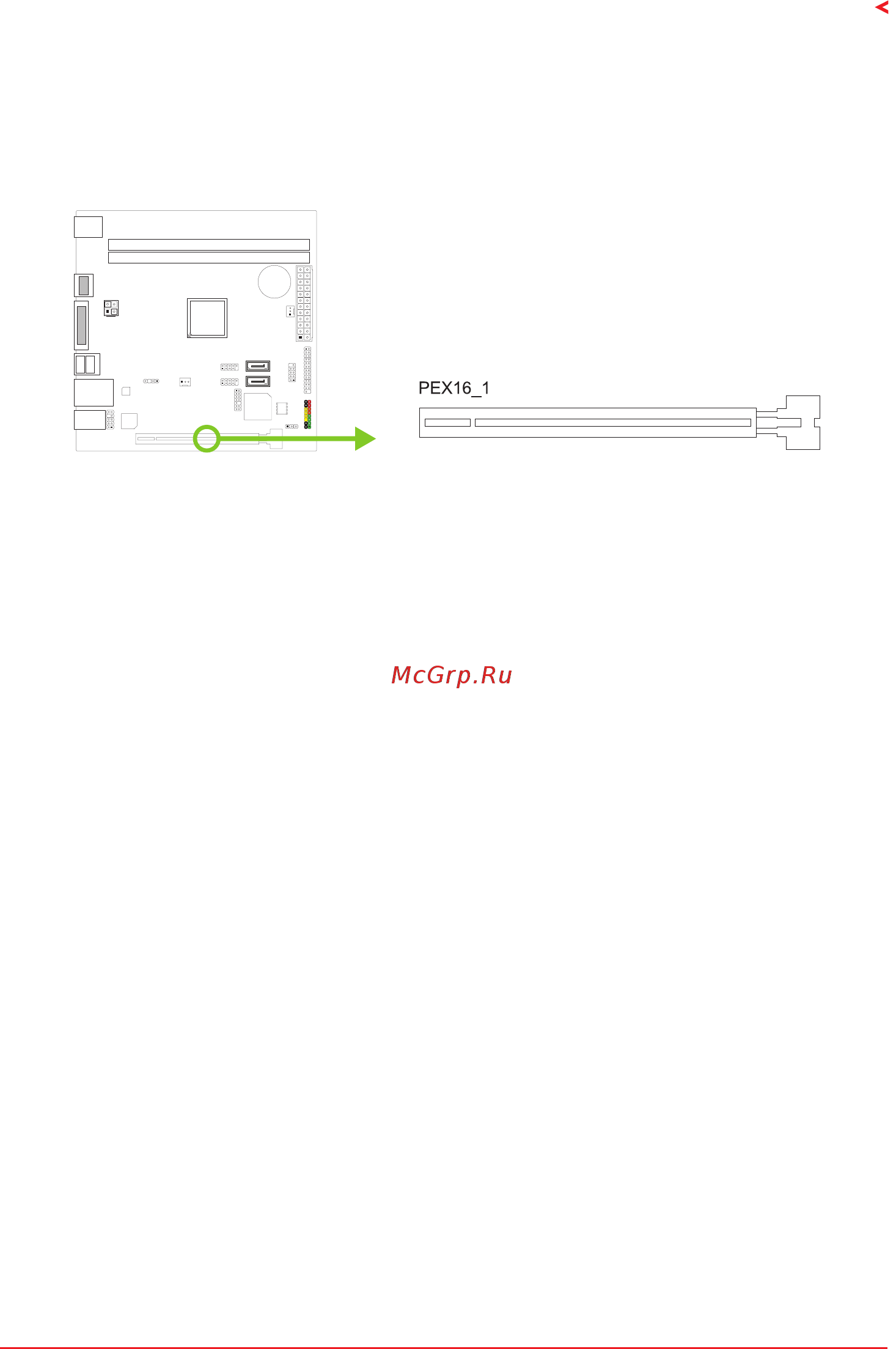

PEX16_1: PCI-Express Gen2 x16 Slot (x4 speed)

• PCI-Express 2.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 2GB/s for each slot, a

total of 4GB/s.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card’s instrucon document before install the expansion

card into the computer.

• Remove your computer’s chassis cover, screws and slot bracket from the computer.

• Place a card in the expansion slot and press down on the card unl it is completely

seated in the slot.

• Secure the card’s metal bracket to the chassis back panel with a screw.

• Replace your computer’s chassis cover.

• Power on the computer, if necessary, change BIOS sengs for the expansion card.

• Install related driver for the expansion card.
