Biostar A68N-2100E Версия 6.X [42/51] Com 串行端口

14 | 第二章: 硬件安装

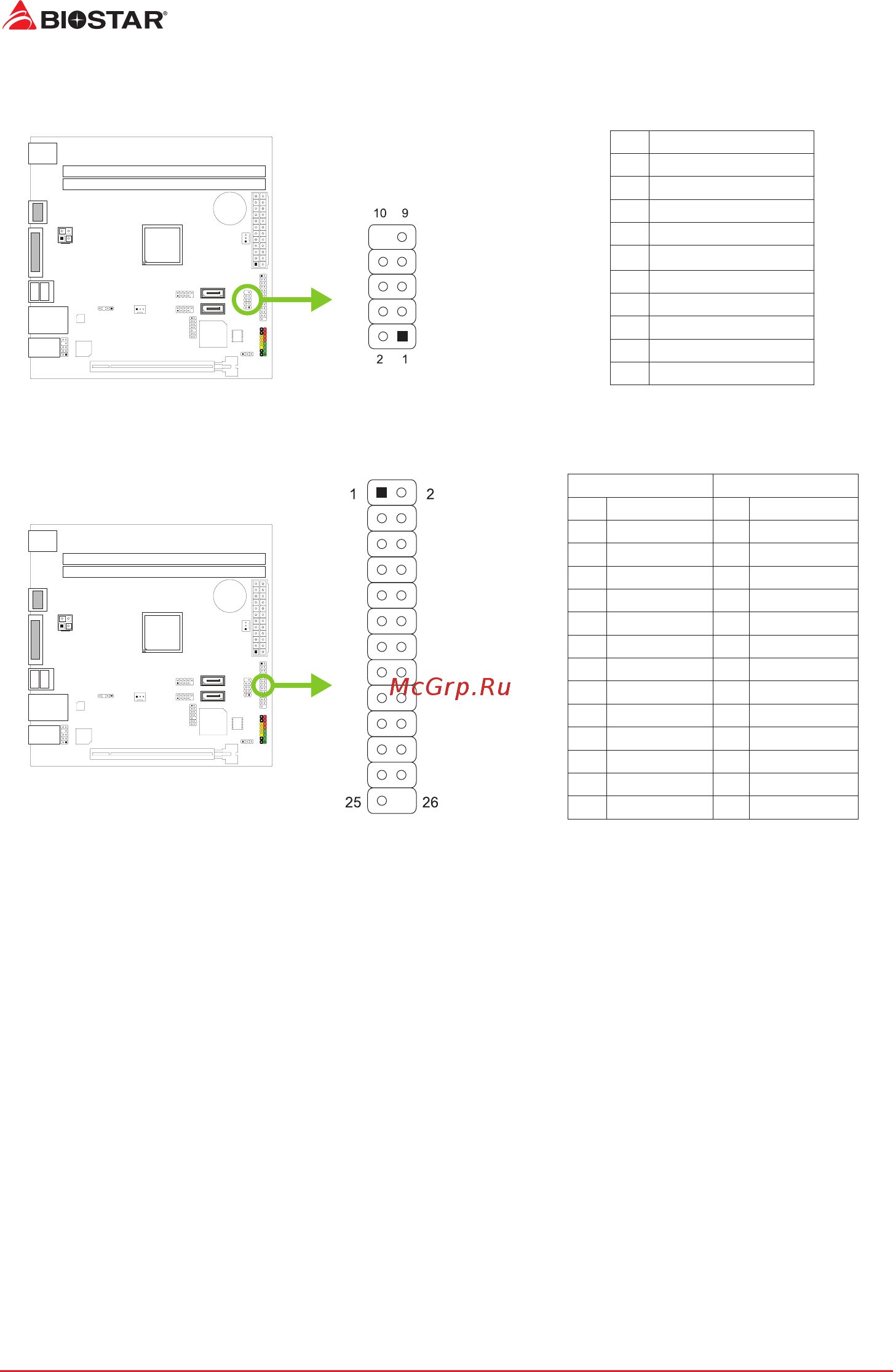

COM: 串行端口

此主板有一个串行端口可接出RS-232接头。

针定义

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

PRINT: 打印机端口

此接头可连接打印机端口。

HD Audio AC’97

针定义针定义

1 -Strobe 14 接地

2 -ALF 15 Data 6

3 Data 0 16 接地

4 -Error 17 Data 7

5 Data 1 18 接地

6 -Lnit 19 -ACK

7 Data 2 20 接地

8 -Scltin 21 Busy

9 Data 3 22 接地

10 接地 23 PE

11 Data 4 24 接地

12 接地 25 SCLT

13 Data 5 26 Key
