2.3 Hardware Installation

1. Fix ICA-350 to the location with wall mount fixture.

2. Plug-in Ethernet Cable into RJ-45 LAN port. Connect an Ethernet cable to the LAN port on the

ICA-350 and connect the other side of the Ethernet cable to a hub/switch.

3. Connect the attached two power adapters to camera and plug-in this two adapters into power

outlet.

4. Connect Video BNC connector to a local TV monitor or DVR if necessary.

5. Done.

2.4 Initial Utility Installation

This chapter shows how to quick set up your ICA-350. The ICA-350 is with the default settings.

However to help you find the networked camera quickly the windows utility-IP Wizard can search

the cameras in the network that shall help you to configure some basic setting before you started

advanced management and monitoring.

1. Insert the bundled CD into the CD-ROM drive to launch the autorun program. Once completed,

a welcome menu screen will appear. Please click your IP camera model name to next page.

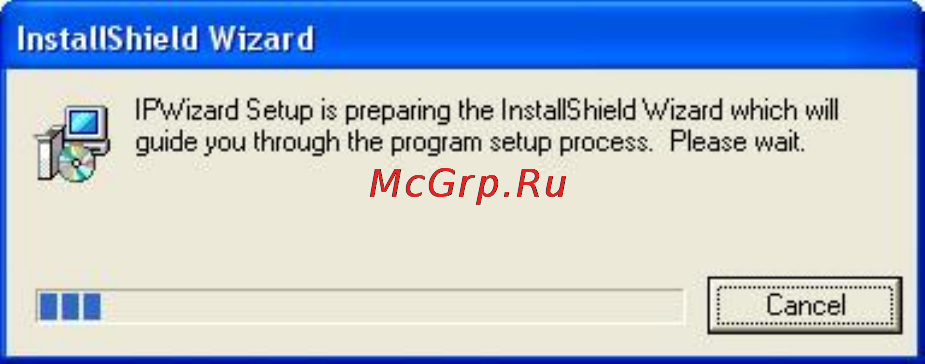

2. Click the “IP Wizard” hyperlink; you will see the InstallShield Wizard dialog box as below.

NOTE: If the welcome screen does not appear, click “Start” at the taskbar. Then, select

“Run” and type “D:\Utility\IPWizard\setup.exe”, assume D is your CD-ROM drive.
