FREQUENCY SETTING
■ Frequency setting
Rotate the tuning dial to change the frequency.
• The frequency changes in increments determined by the
selected tuning step (see below).
• When
the lock function is activated (“LOCK” appears), the
frequency cannot be changed via tuning dial.
Push [TS] one or more times to select a quick tuning
step.
D Programmable tuning steps
Programmable tuning steps are available to suit your
operating requirements.
These tuning steps are:
• Independently selectable for each mode
• Selectable from 0.1, 1, 5, 6.25, 9, 10, 12.5, 20, 25,
100 kHz
q
Select the desired operating mode with [SSB],
[CW/RTTY], [AM] or [FM]. (p. 14)
w
Push [TS] one or more times until the
programmable tuning step indicator, “
√
,” appears
above the 1 kHz.
• Rotating the tuning dial changes the frequency
according to the set tuning step.
e Push [TS] for 2 sec. while the programmable
tuning step indicator appears to enter the tuning
step set mode.
r Rotate the tuning dial to set the desired tuning
step for the selected mode.
t Push [TS] to exit the tuning step set mode.
y Rotate the tuning dial to change the frequency
according to the set tuning step.
D 1 Hz and 10 Hz tuning steps
When both the 1 MHz tuning step and programmable
tuning step, “
√
,” disappear, rotating the tuning dial
changes the frequency in increments of 1 or 10 Hz.
q
Push [TS] one or more times until the
programmable tuning step indicator or 1 MHz
tuning step indicator, “
√
,” disappears.
w
Push [TS] for 2 sec. to toggle between the 1 and
10 Hz step settings.
• When the 1 Hz step is selected, the 1 Hz digit appears
in the frequency indication; when the 10 Hz step is
selected, the 1 Hz digit disappears from the frequency
indication.

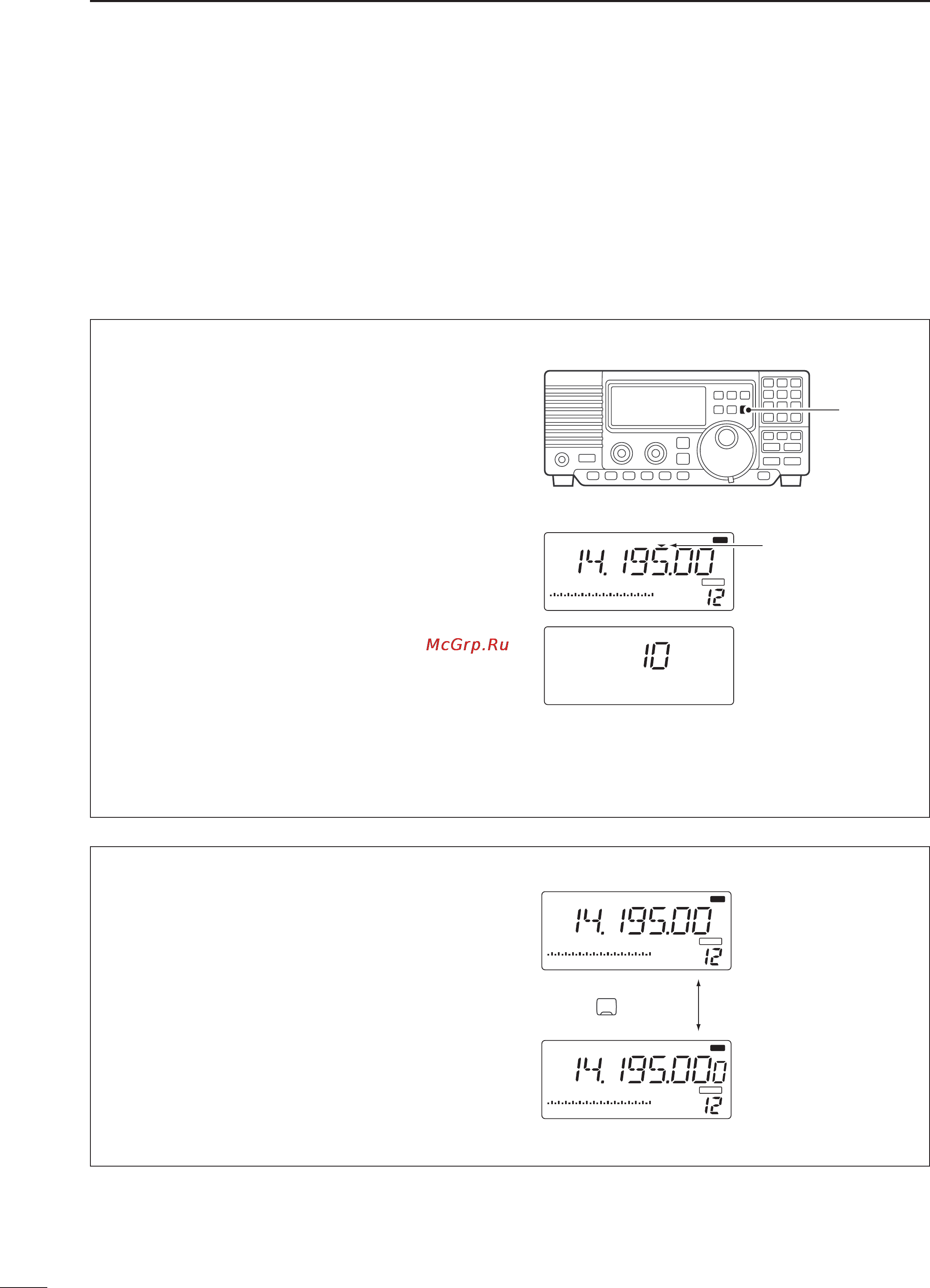

USB
R X
BLANKBLANK
S1 3 5
7
9 20 40 60
dB
AGCANT
VFO
1
Programmable tuning
step indicator
10 kHz tuning step is
selected.
[TS]
USB
R X
BLANKBLANK
S1 3 5
7
9 20 40 60
dB
AGCANT
VFO
1
USB
R X
BLANKBLANK
S1 3 5
7
9 20 40 60
dB
AGCANT
VFO
1
Rotating the tuning dial
changes the frequency
in 10 Hz steps.
Rotating the tuning dial
changes the frequency
in 1 Hz steps.
TS
Push for 2 sec.
