Icom IC-R75 [8/48] Front panel
![Icom IC-R75 [8/48] Front panel](/views2/1074320/page8/bg8.png)
4
2
PANEL DESCRIPTION

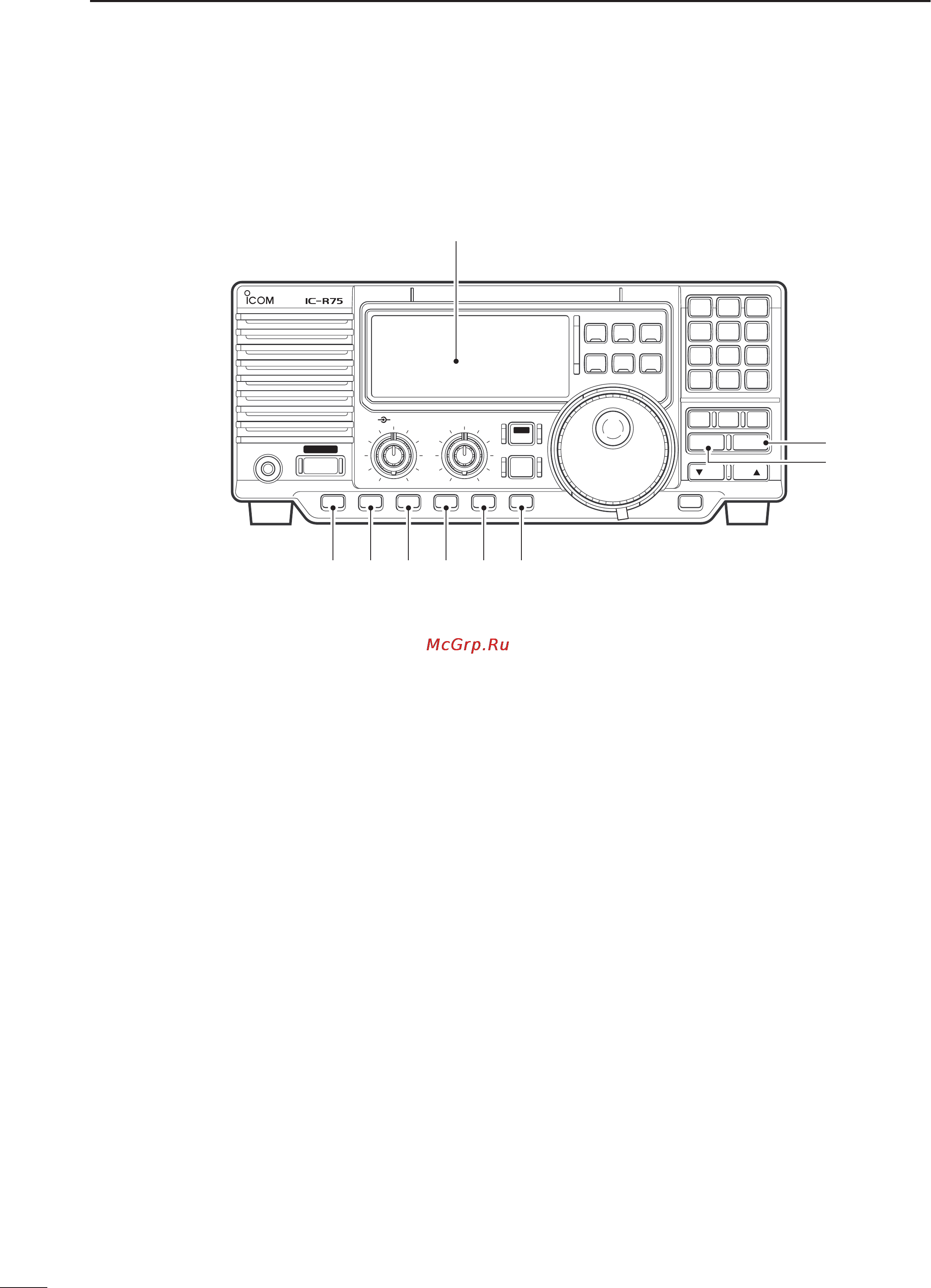

■ Front panel (continued)
!9 PREAMP SWITCH [P.AMP] (p. 16)
Push to toggle between preamp-1 and preamp-2
or turn the preamp OFF.
@0 ATTENUATOR SWITCH [ATT] (p. 16)
Push to toggle the 20 dB attenuator function ON
and OFF.
@1 NOISE REDUCTION SWITCH [NR] (p. 20)
➥ T
oggles the optional noise reduction function
ON and OFF when pushed. Functions in SSB,
CW and RTTY modes. An optional UT-106 DSP
UNIT is required.
➥ Enters noise reduction level set mode when
pushed for 2 sec. An optional UT-106 DSP UNIT is
required.
@2 A
UTOMATIC NOTCH FILTER SWITCH [ANF]
(p. 20)
Push to turn the optional automatic notch filter for
receiving AM signals ON and OFF. An optional
UT-106 DSP UNIT is required.
@3 NOISE BLANKER SWITCH [NB] (p. 15)
Toggles the noise blanker ON and OFF. The noise
blanker reduces pulse-type noise such as that
generated by automobile ignition systems. This
function is not effective for FM, or non pulse-type
noise.
@4
AGC SWITCH [AGC] (p. 16)
➥ T
oggles the AGC (Automatic Gain Control) time
constant fast and slow when pushed.
➥ Toggles the AGC function ON and OFF when
pushed for 2 sec.
@5 SELECT SWITCH [SEL] (pgs. 24, 26)
➥ Toggles the select memory setting ON and OFF
when pushed in memory mode.
➥ Toggles the memory name indication ON and
OFF when pushed for 2 sec. in memory mode.
@6 SCAN SWITCH [SCAN] (p. 25)
➥ Push momentarily to start/stop the programmed
scan in VFO mode.
➥ Push momentarily to start/stop the memory
scan in memory mode.
➥ Push for 2 sec. to start the priority watch in VFO
mode.
• Push [SCAN] again to cancel the priority watch.
FIL
TS
CW/RTTY
FM
SSB
AM
PHONES
POWER
RF/SQL TWIN PBTAF
COMMUNICATIONS RECEIVER
DN UP
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
.
0
QZ
ENT
V/M MW
SEL SCAN
CLR
LOCK
AGCNBANFNRATT
P.AMP
SET
CLOCK
ANT
Function display (p. 5)
!
9
@
0
@
1
@
2
@
3
@
4
@6
@5
