15
5
RECEIVE FUNCTIONS
■ Twin PBT operation
The twin PBT (Passband Tuning) function
electronically narrows the IF passband widths
to reduce interference. Moving both [TWIN PBT]
controls to the same position shifts the IF.
Variable range depends on the filter selection. ±1.29
kHz in 15 Hz steps and ±258 kHz in 3 Hz steps are
available.

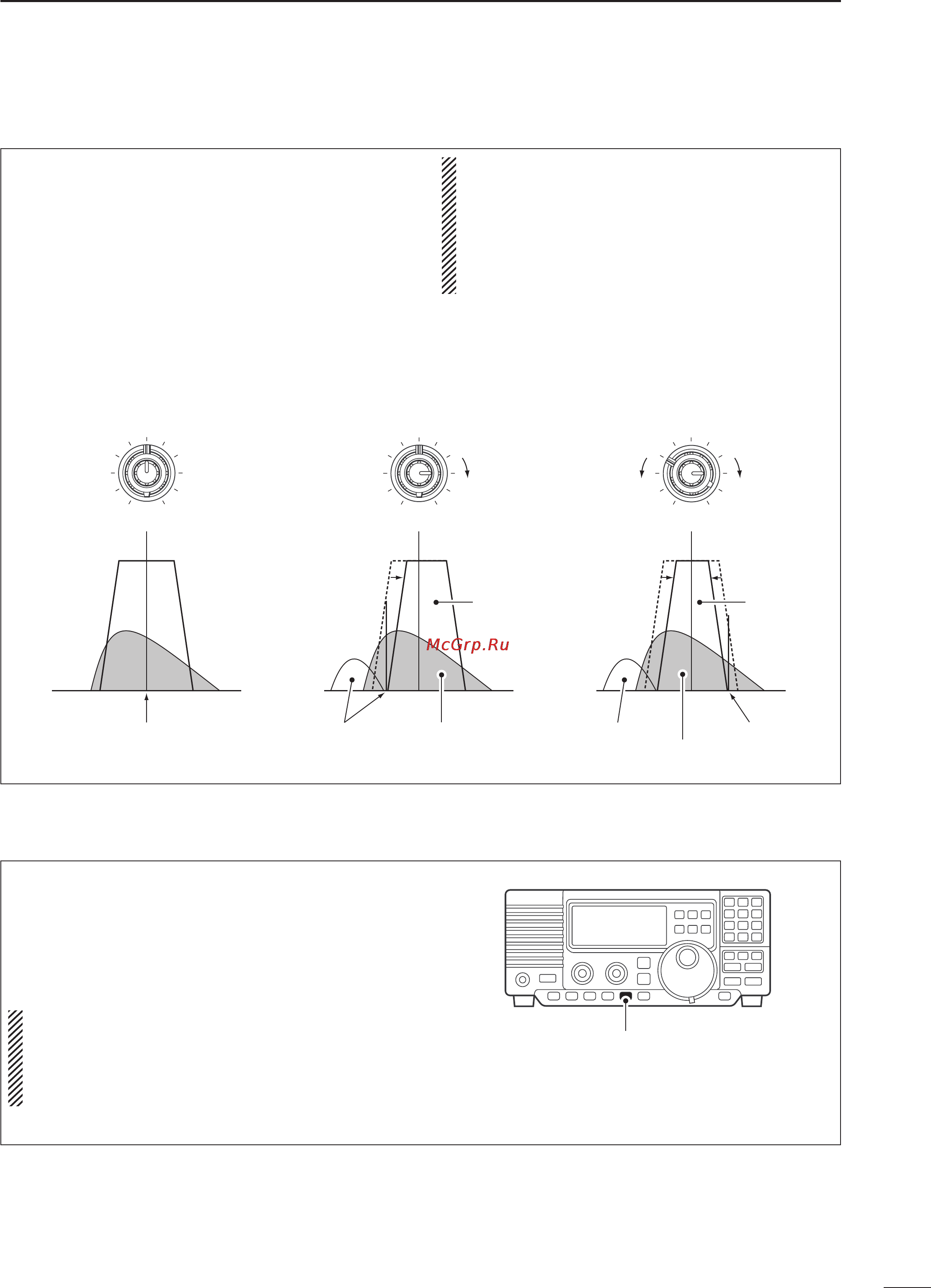

PBT OPERATION EXAMPLE
• [TWIN PBT] should normally be set to the center
positions when there is no interference.
• W
hen PBT is used, the audio tone may be
changed.
• PBT may not function with some IF filter
combinations.
• Not available for FM mode.
TWIN PBT TWIN PBT
TWIN PBT
IF center frequency Interference Desired signal
Passband
Both controls at
center position
Cutting a lower
passband
Cutting both higher and
lower passbands
Interference Interference
Desired signal
Passband
■ Noise blanker
The noise blanker eliminates pulse-type noise
such as from car ignitions. The noise blanker is not
available for FM mode.
➥
Push the [NB] switch to turn the noise blanker ON
or OFF.
• When using the noise blanker, received signals
may be distorted if they are excessively strong.
• T
he noise blanker function in AM mode can be
deactivated depending on set mode setting. (p.
31)
[NB]
