32
9
SET MODE
• Recorder remote

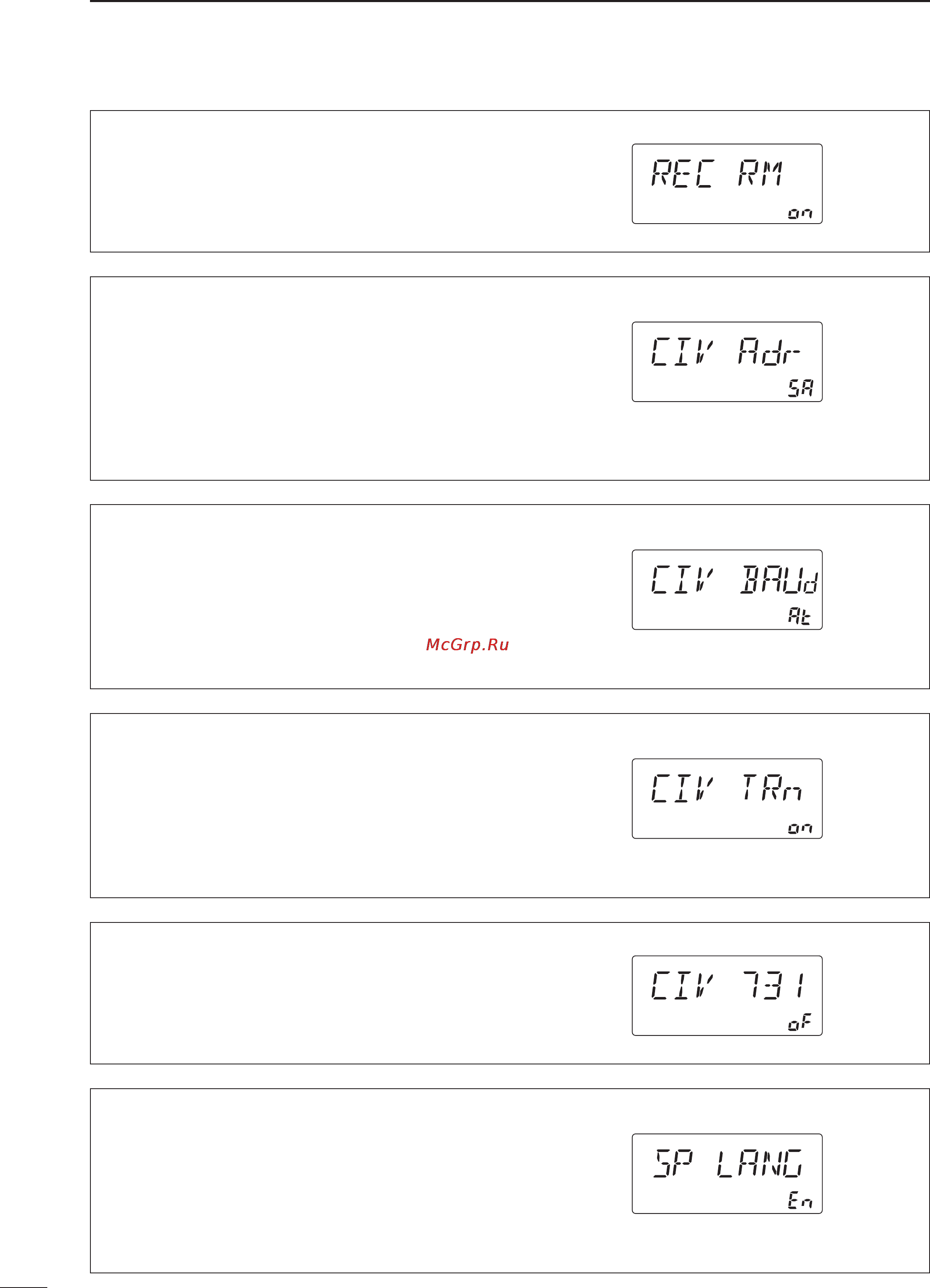

This item sets the [REC REMOTE] jack function ON
or OFF.
• CI-V address
To distinguish equipment, each CI-V transceiver
or receiver has its own Icom standard address in
hexadecimal code. The IC-R75’s address is 5Ah.
When 2 or more IC-R75’s are connected to an
optional CT-17 CI-V LEVEL CONVERTER, rotate the
tuning dial to select a different address for each
IC-R75 in the range 01h to 7Fh.
• CI-V baud rate
This item sets the data transfer rate. “3” (300 bps),
“12” (1200 bps), “48” (4800 bps), “96” (9600 bps),
“HI” (19200 bps) and “At” (automatic) are available.
When “At” is selected, the baud rate is automatically
set according to the connected controller or remote
controller.
• CI-V with IC-735
When connecting the IC-R75 to the IC-735 for
transceive operation, you must change the operating
frequency data length to 4 bytes.
• This item must be set to “ON” only when operating
receiver with the IC-735.
• Speech language
When the optional UT-102 VOICE SYNTHESIZER UNIT
is installed, you can select between English and
Japanese as the language.
• “En” English announcement
• “JP” Japanese announcement
See p. 34 for unit installation.
• CI-V transceive
Transceive operation is possible with the IC-R75
connected to other Icom HF transceivers or receivers.
When “on” is selected, changing the frequency,
operating mode, etc. on the IC-R75 automatically
changes those of connected transceivers (or
receivers) and vice versa.
