CLOCK AND TIMERS

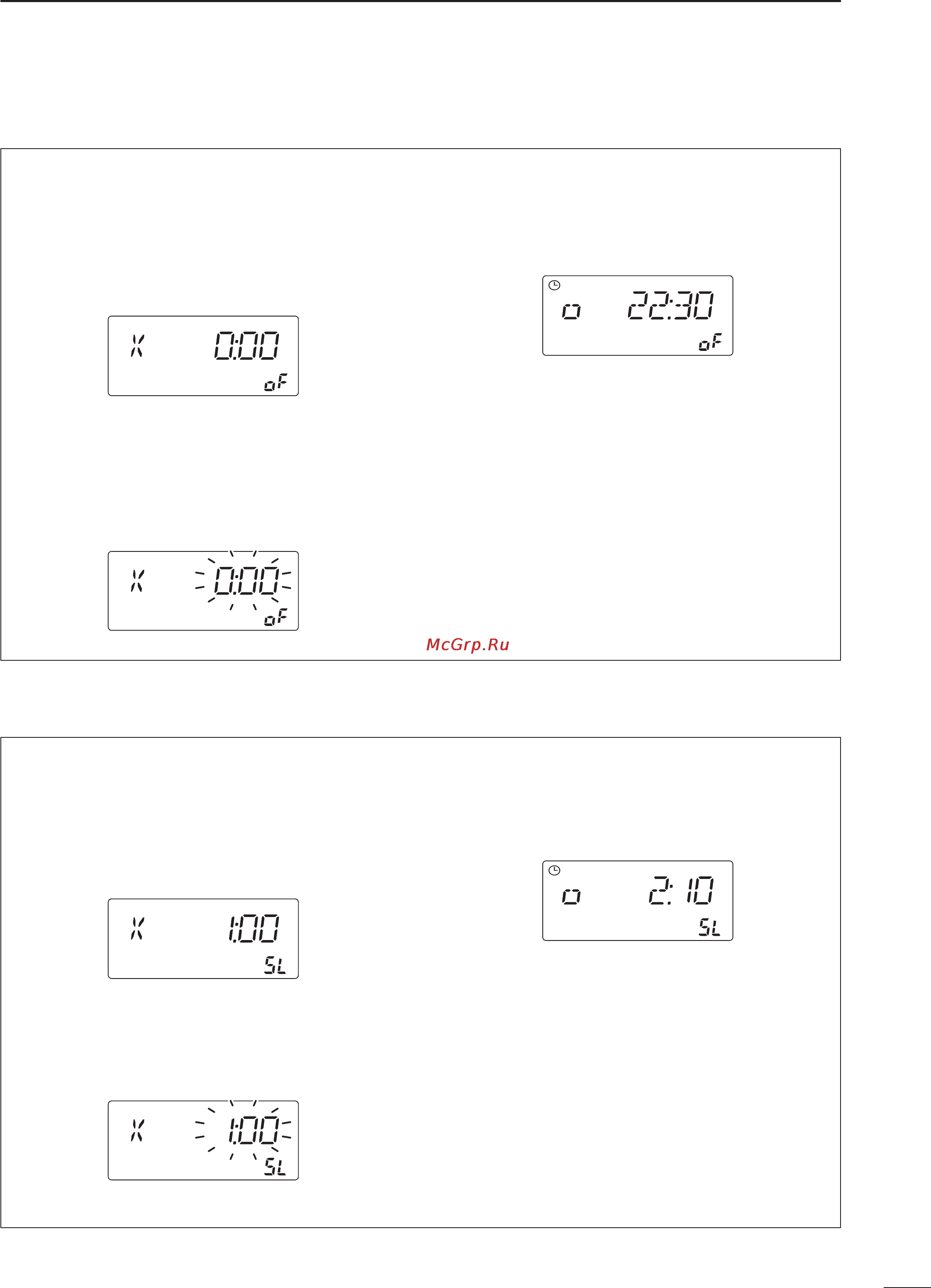

■ Setting power-off time
The receiver can be set to turn OFF automatically at
a specified time.
q Push [CLOCK] to select cloc
k indication mode.
w Push [UP Y] or [Z DN] twice to select power-off
timer screen.
• Power-off time and “oF” appear.
e Push [(ANT) SET] for 2 sec. to enter time setting
condition.
• Power-off time flashes.
• Push [
(ANT) SET] momentarily when the power-off
timer is already turned ON.
r Set the desired time using the tuning dial; or push
keypad using 4-digit 24 hour system.
t Push [ENT] to set the time.
• Power-off timer is automatically turned ON.
• Push [CLR] to cancel the setting.
y Push [(ANT) SET] momentarily to toggle the
power-off timer ON and OFF, if necessary.
• “o” and “X” indicates the power-off timer is turned ON
and OFF, respectively.
u Push [ENT] to exit clock indication mode.
• When the set time arrives, the power is automatically
turned OFF with 5 beeps.
TIMER
■ Setting sleep timer period
The receiver can be set to turn OFF automatically.
The power-off period can be set from 1 min. to 23
hours 59 min.
q Push [CLOCK] to select cloc
k indication mode.
w Push [Z DN] to select sleep timer screen.
• Sleep timer period and “SL” appear.
e Push [(ANT) SET] for 2 sec. to enter time setting
condition.
• Sleep timer period flashes.
r Set the desired periods using the tuning dial; or
push keypad using 4-digit 24 hour system.
t Push [ENT] to set the periods.
• Sleep timer is automatically turned ON.
• Push [CLR] to cancel the setting.
y Push [(ANT) SET] momentarily to toggle the sleep
timer ON or OFF, if necessary.
• “o” and “X” indicates the sleep timer is turned ON and
OFF, respectively.
u Push [ENT] to exit clock indication mode.
i The receiver emits 5 beeps and turns OFF after
the sleep timer period elapses.
TIMER
