OPTIONS

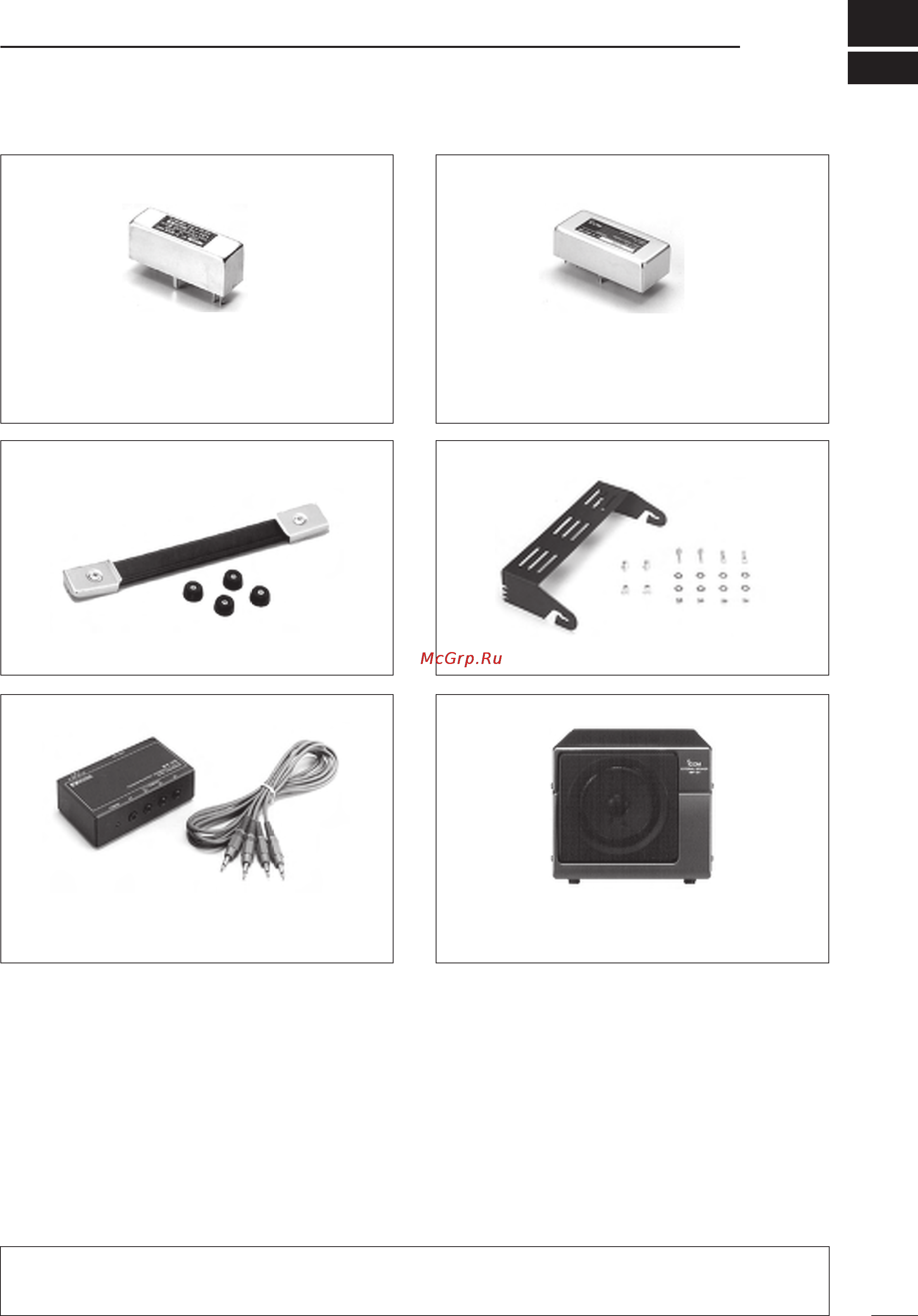

FL-100, FL-101, FL-103, FL-223 and FL-232
9 MHz FILTERS
• FL-100: 500 Hz/–6 dB (CW/RTTY nar.)
• FL-101: 250 Hz/–6 dB (CW nar.)
• FL-103: 2.8 kHz/–6 dB (SSB wide)
• FL-223: 1.9 kHz/–6 dB (SSB nar.)
• FL-232: 350 Hz/–6 dB (RTTY/CW nar.)
FL-52A, FL-53A, FL-96, FL-222 and FL-257
455 kHz FILTERS
• FL-52A: 500 Hz/–6 dB (CW/RTTY nar.)
• FL-53A: 250 Hz/–6 dB (CW nar.)
• FL-96: 2.8 kHz/–6 dB (SSB wide)
• FL-222: 1.8 kHz/–6 dB (SSB nar.)
• FL-257: 3.3 kHz/–6 dB (SSB wide)
MB-23 CARRYING HANDLE
Carrying handle, convenient for portable operation.
IC-MB5 MOBILE MOUNTING BRACKET
Receiver mounting bracket for mobile operation.
CT-17 CI-V LEVEL CONVERTER
For remote receiver control using a PC. You can change
frequencies, operating mode, memory channels, etc.
SP-21 EXTERNAL SPEAKER
Designed for base station operation.
Input impedance: 8 Ω
Max. input power: 5 W
CR-282 HIGH-STABILITY CRYSTAL UNIT
Contains a temperature-compensating oven heater and
crystal unit for improved frequency stability.
• Frequency stability: ±0.5 ppm
RS-R75 REMOTE CONTROL SOFTWARE
Allows you to control the receiver from your PC (for
Microsoft
®
Windows
®
95 or Windows
®
98).
* S-AM (Synchronous AM) mode appears and can be selected on
the control screen, however, the receiver will function in normal
AM mode only.
UT-102 VOICE SYNTHESIZER UNIT
Announces the receive frequency, mode, S-meter level and
current time in a clear, electronically-generated voice, in
English (or Japanese).
UT-106 DSP UNIT
Provides AF DSP functions such as noise reduction and
auto notch.
Approved Icom optional equipment is designed for optimal performance when used with an Icom receiver.
Icom is not responsible for the destruction or damage to an Icom receiver in the event the Icom receiver is used
with equipment that is not manufactured or approved by Icom.
