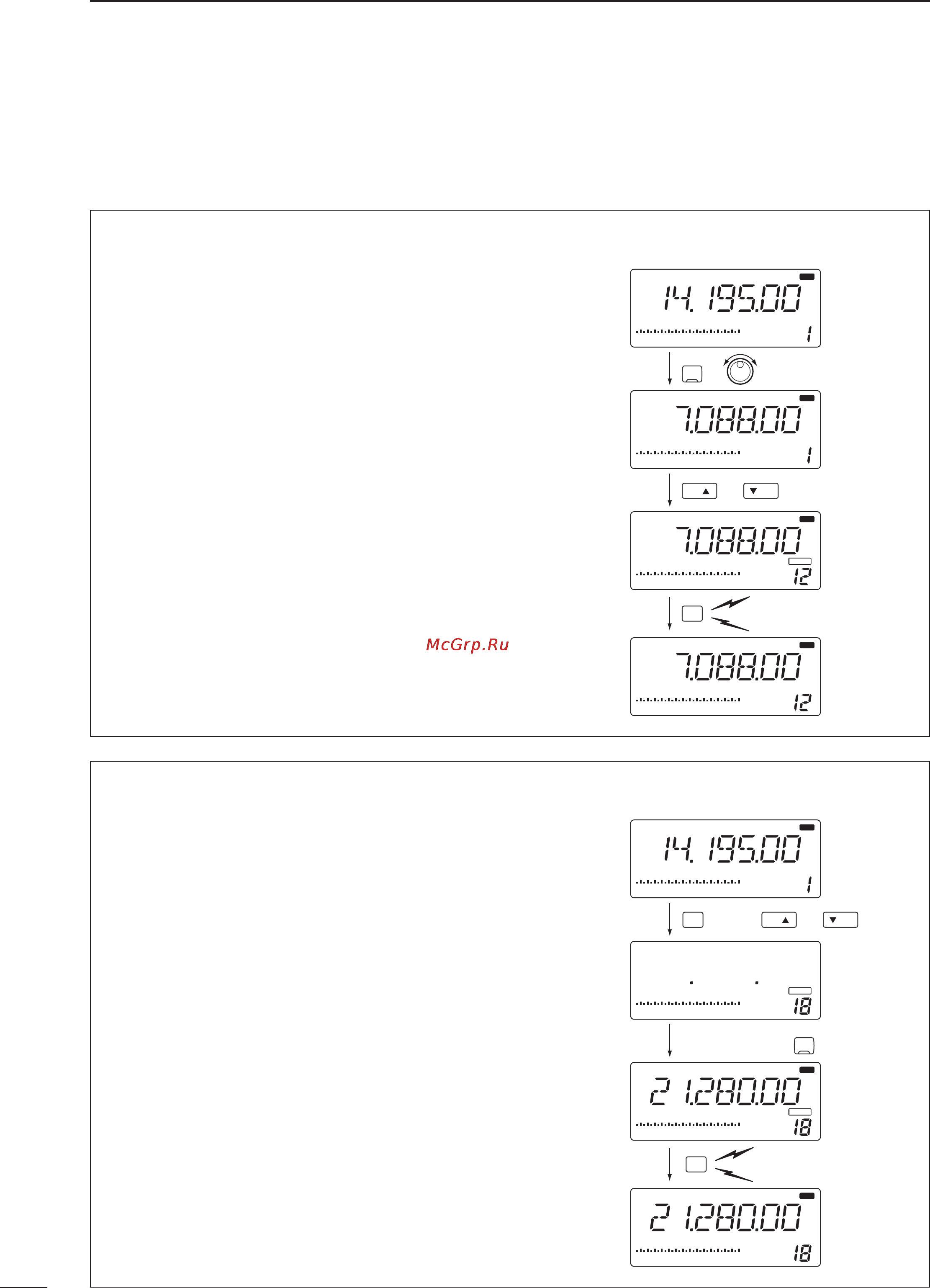

Memory channel programming can be preformed
either in VFO mode or in memory mode.
■ Memory channel programming
22
6
MEMORY OPERATION
D Programming in memory mode
q Select the desired memory channel with [UP Y]
or [Z DN] in memory mode.
• “BLANK” appears if the selected memory channel is a
blank channel (and does not have contents).
w Set the desired frequency and operating mode in
memory mode.
• To program a blank channel, use direct frequency
entry with the keypad in advance.
e Push [MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
• Preamp setting, attenuator on/off, antenna selection,
and AGC setting can also be programmed into a
memory channel.
[EXAMPLE]: Programming 21.280 MHz/CW into
memory channel 18.
D Programming in VFO mode
q Set the desired frequency and operating mode in
VFO mode.
w Push [UP Y] or [Z DN] several times to select the
desired memory channel.
• “BLANK” appears if the selected memory channel is a
blank channel (and does not have contents).
e Push [MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
• Preamp setting, attenuator on/off, antenna selection,
and AGC setting can also be programmed into a
memory channel.
[EXAMPLE]: Programming 7.088 MHz/LSB into
memory channel 12.
R X
S1 3 5
7
9 20 40 60
dB
AGCANT 1
USB
R X
S1 3 5
7
9 20 40 60
dB
AGCANT
VFO
VFO
1
MW
LSB
R X
S1 3 5
7
9 20 40 60
dB
AGCANT 1
VFO
LSB
BLANKBLANK
R X
S1 3 5
7
9 20 40 60
dB
AGCANT 1
VFO
LSB
UP DN
or
Push for 2 sec.
or keypad
Beep
Beep
Beep
SSB
S1 3 5
7
9 20 40 60
dB
USB
R X
S1 3 5
7
9 20 40 60
dB
AGCANT
VFO
1
MW
R X
S1 3 5
7
9 20 40 60
dB
AGCANT 1
BLANKBLANK
V/M
BLANKBLANK
MEMO
CW/RTTY
R X
CW
R X
S1 3 5
7
9 20 40 60
dB
AGCANT 1
R X
CW
MEMO
MEMO
UP DN
orthen
then
Push for 2 sec.
keypad
Beep
Beep
Beep
