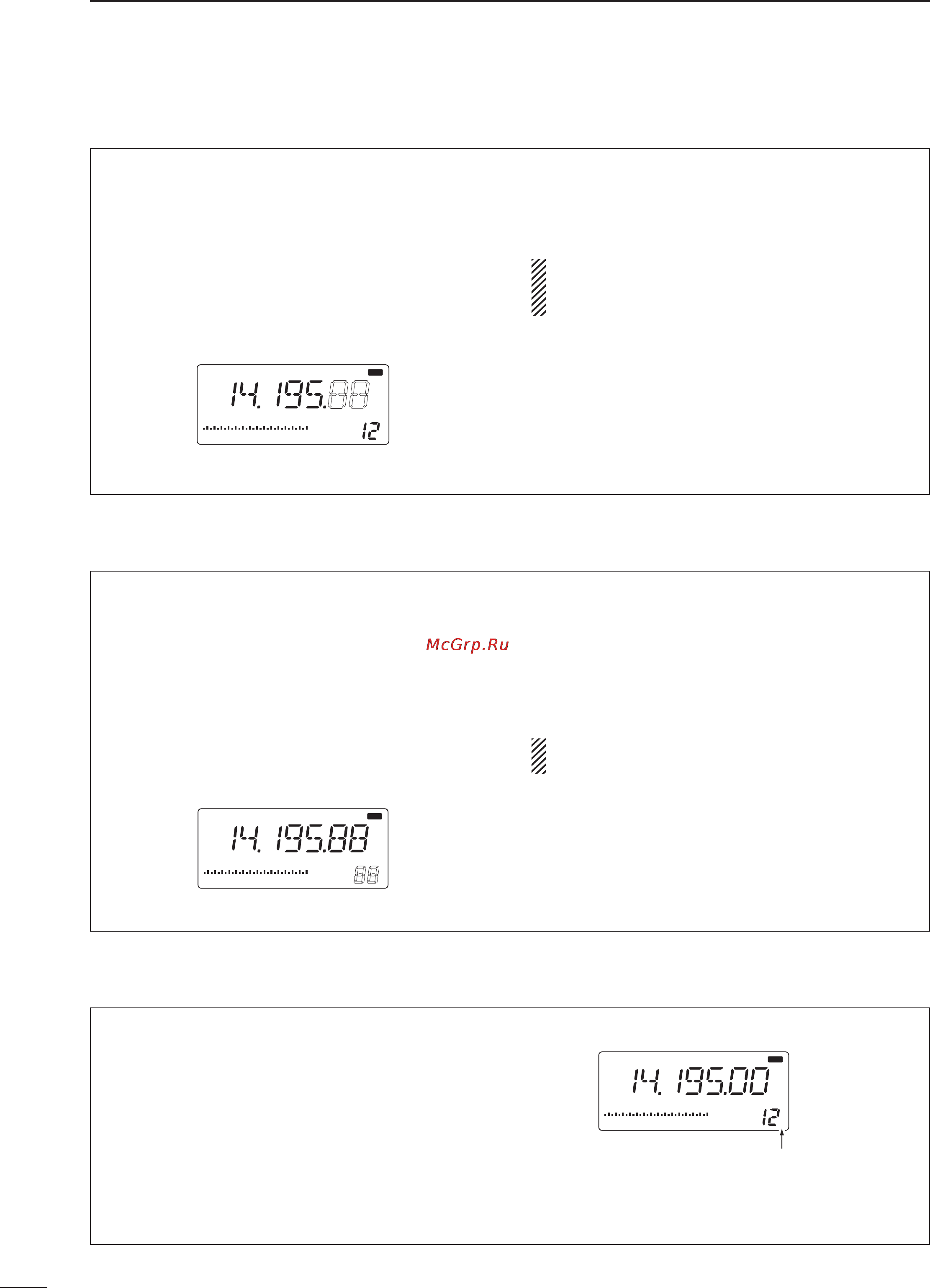

26
7
SCANS
■ Programmed scan operation
q Select VFO mode with [V/M].
w Select the desired operating mode.
• The operating mode can also be changed while
scanning.
e Set [RF/SQL] open or closed.
• See previous page for scan condition.
• If the [RF/SQL] control function is set as RF control,
the squelch always opens. See pgs. 14, 30 for details.
r Push [SCAN] to start the programmed scan.
• “SCAN” appears while scanning.
t When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume
setting and the squelch condition.
y To cancel the scan, push [SCAN].
If the same frequencies are programmed into the
scan edge memory channel P1 and P2,
programmed scan does not start.
USB
R X
S1 3 5
7
9 20 40 60
dB
AGCANT 1
SCAN
VFO
■ Memory/select memory scan operation
q Select memory mode with [V/M].
w Select the desired operating mode.
• The operating mode can also be changed while
scanning.
e Set [RF/SQL] open or closed.
• See previous page for scan condition.
• If the [RF/SQL] control function is set as RF control,
the squelch always opens. See pgs. 14, 30 for details.
r Push [SCAN] to start the memory/select memory
scan.
• “SCAN” appears while scanning.
t Push [SEL] to toggle between memory scan and
select memory scan.
y
When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume
setting and the squelch condition.
u T
o cancel the scan, push [SCAN].
2 or more memory channels must be programmed
for memory scan to start.
USB
R X
S1 3 5
7
9 20 40 60
dB
AGCANT
MEMO
1
SCAN
S
■ Setting select memory channels
q Select memory mode with [V/M].
w Select the desired memory channel to set as
select memory channel.
e Push [SEL] to set the memory channel as a select
memory or not.
• “S” appears for select memory channels.
r Repeat steps w to e to program another
memory channel as a select memory channel, if
desired.
USB
R X
S1 3 5
7
9 20 40 60
dB
AGCANT
MEMO
1
S
“S” appears for the select channel.
