RECEIVE FUNCTIONS
■ Filter set mode
When an optional filter is installed, set the optional
filters in filter set mode. Optional filters are not
selected by default.
D Optional filter setting
q Push [FIL] for 2 sec. to enter filter set mode.
• If a blank memory channel has been selected, push
[V/M] to select VFO mode in advance.
w Push [UP Y] or [Z DN] one or more times until
“oP1” appears for 9 MHz IF filter setting or “oP2”
appears for 455 kHz IF filter setting.
e Rotate the tuning dial to select the installed filter.
• “No,” “100,” “101,” “103,” “223” and “232” indicate no
optional filter, FL-100, FL-101, FL-103, FL-223 and
FL-232, respectively for 9 MHz IF filter selection.
• “
No,” “52A,” “53A,” “96,” “222” and “257” indicate no
optional filter, FL-52A, FL-53A, FL-96, FL-222 and
FL-257, respectively for 455 kHz IF filter selection.
r Push [FIL] to exit filter set mode.
D Wide/narrow filter setting
q Push [FIL] for 2 sec. to enter filter set mode.
• If a blank memory channel has been selected, push
[V/M] to select VFO mode in advance.
w Select the desired mode with the mode switches.
e Push [UP Y] or [Z DN] one or more times to
select the desired width 9 MHz or 455 kHz IF
filter.
• Wide or narrow mode can be deactivated when 9 MHz
wide or narrow filter is set to ‘OFF.’
•
455 kHz wide or narrow filter selection does appear
when 9 MHz wide or narrow filter is set to ‘OFF.’
r Rotate the tuning dial to select a filter.
t Repeat steps w and r to select IF filters for
other modes, if desired.
• The filter combinations are stored depending on
operating modes.
y Push [FIL] to exit filter set mode.
D Expanded filter selection ON/OFF
The selectable filter combinations can be expanded
by setting the expanded filter selection to ON.
q Push [FIL] f
or 2 sec. to enter filter set mode.
• If a blank memory channel has been selected, push
[V/M] to select VFO mode in advance.
w Push [UP Y] or [Z DN] one or more times until
“EXP” appears.
e Rotate the tuning dial to turn the expanded filter
selection ON/OFF.
• If ‘ON’ is selected, the expanded filter selection can be
used.
r Push [FIL] to exit filter set mode.
* 455 kHz wide or narrow filter selection does
appear when 9 MHz wide or narrow filter is set
to ‘OFF.’
USB
W
USB
W
USB
N
USB
USB
USB
N
USB
USB
USB

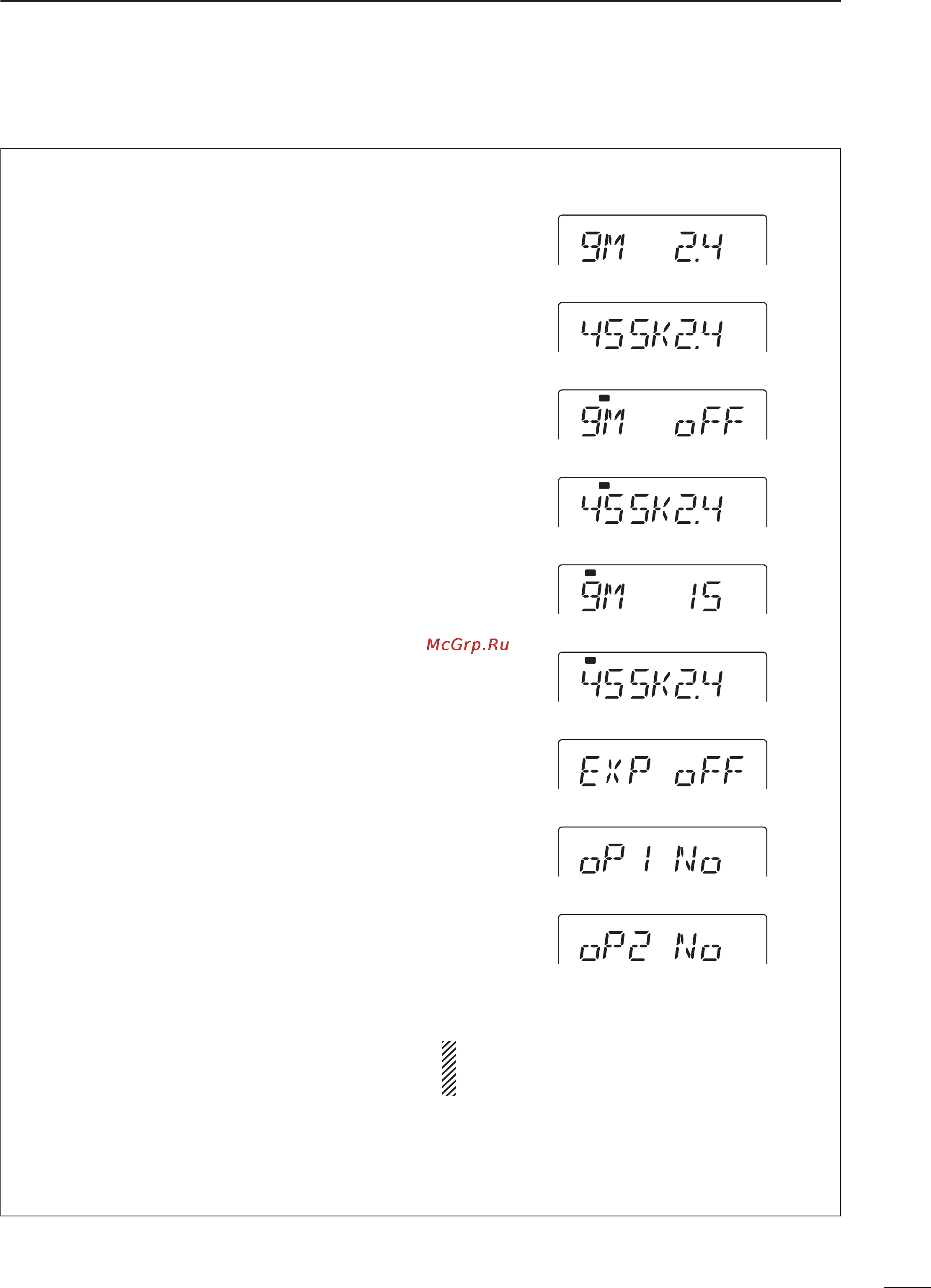

•9 MHz normal filter selection
•455 kHz normal filter selection
•9 MHz narrow filter selection
•455 kHz narrow filter selection*
•9 MHz wide filter selection
•455 kHz wide filter selection*
•Expanded filter selection ON/OFF
•9 MHz normal filter selection
•455 kHz normal filter selection
