INSTALLATION AND CONNECTIONS
■ Advanced connections
BAND
BAND
MODE
TS
DISPLAY
LOCK
F 1 F 2 F 3
AF RF SQL
RIT
SHIFTM-CH
SUB
PHONES
TUNER
P.AMP
ATT
Y
Z
POWER
MENU
TX
RX

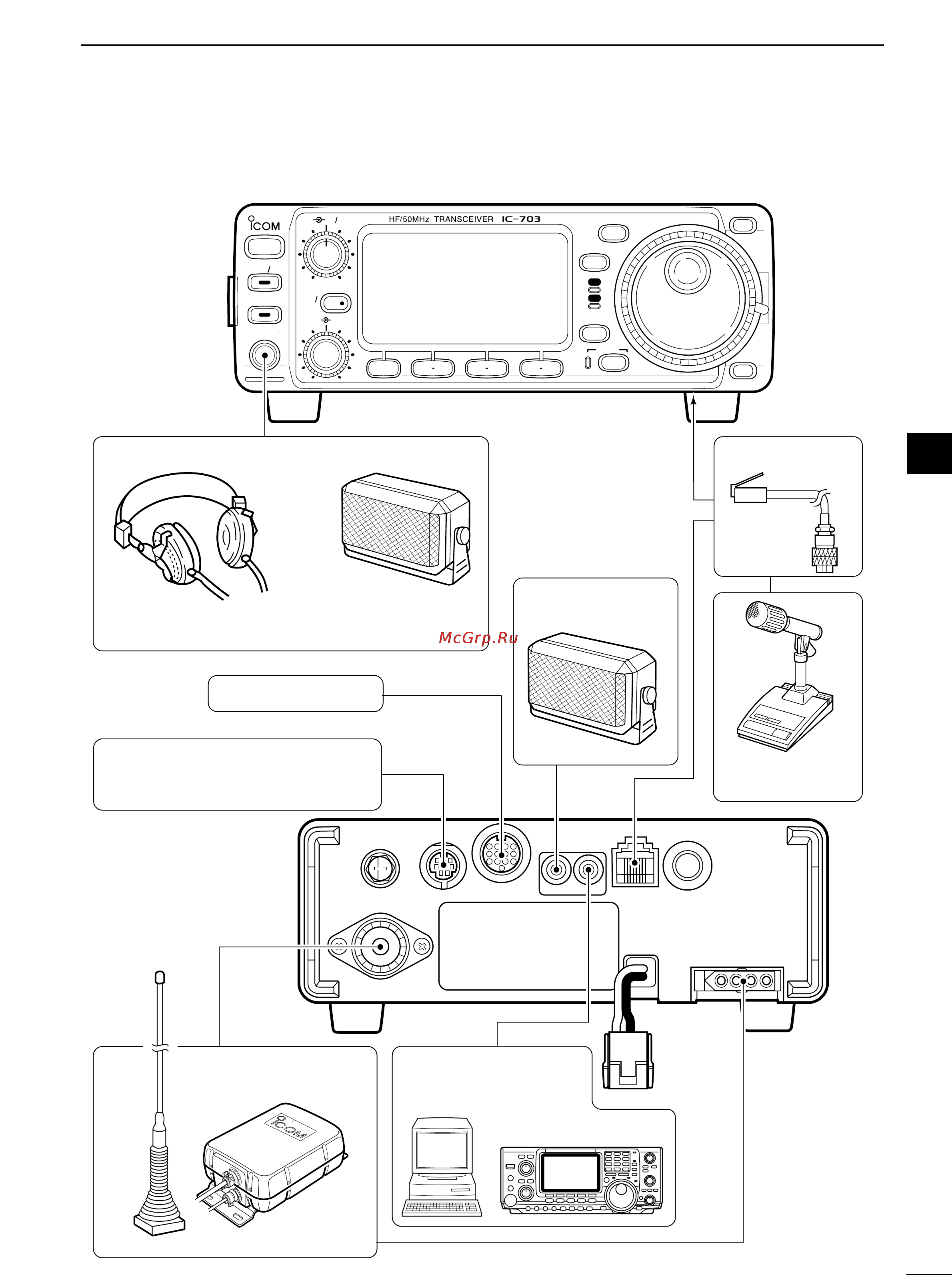

OPC-589 (p. 92)
DESKTOP (p. 91)
MICROPHONE
Selectable with the [PHONE/SPEAKER] switch
on the back of the front panel.
SPEAKER
ACC SOCKET (p. 8)
DATA SOCKET
(p. 8)
6-pin mini DIN socket to connect to a
TNC, etc. for packet operation.
AH-4
(p. 16)
AH-2b
EXTERNAL
SPEAKER (p. 91)
HEADPHONES
SP-7/SP-10
SM-20
or
REMOTE (p. 71)
Used for computer control
and transceive operation.
2
