63
8

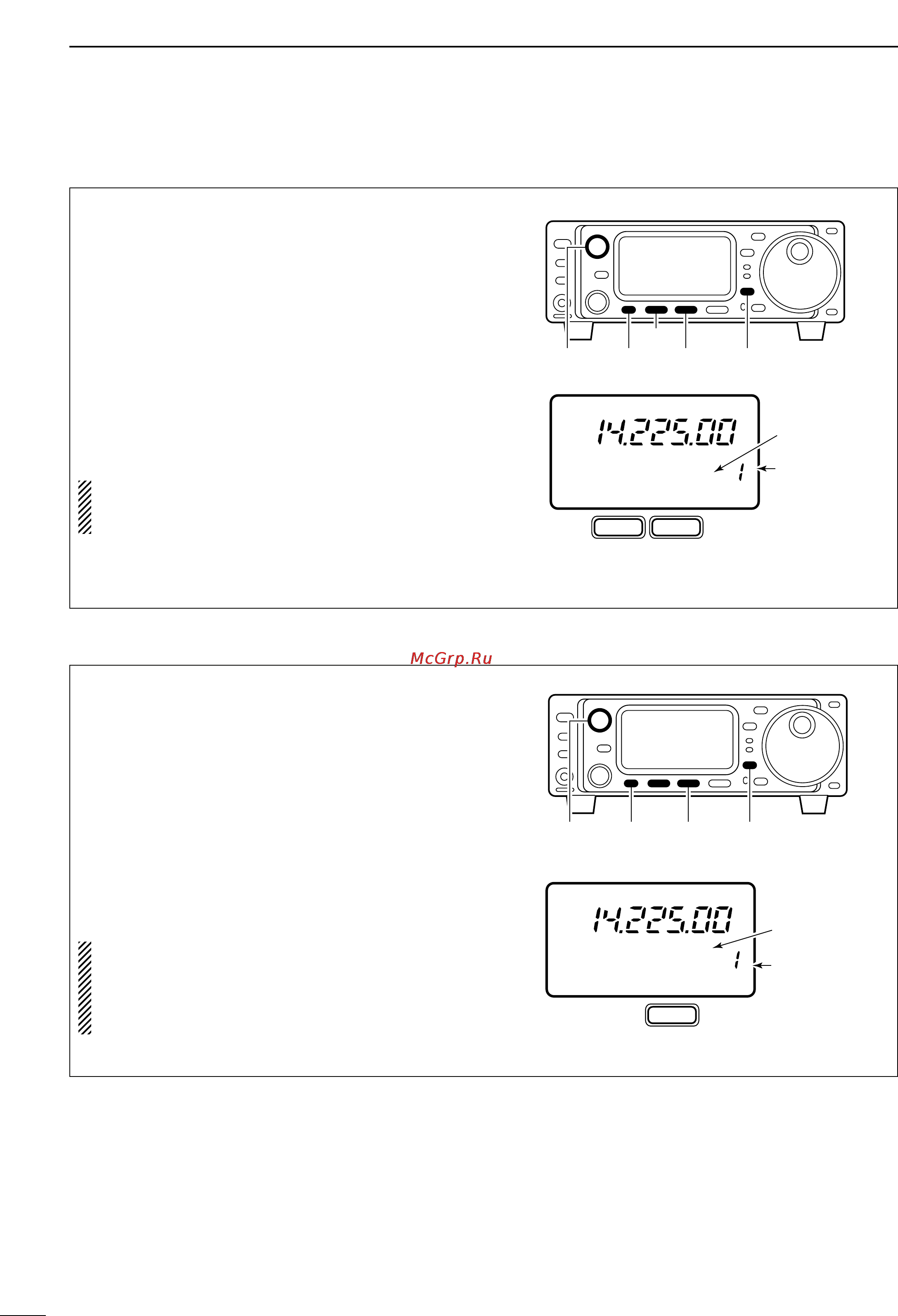

SCAN OPERATION
q Select VFO mode, then set a frequency.
w Close the squelch with [SQL].
e Set the desired memory channel as the watching
channel.
r Select S2.
• Push [DISPLAY] once or twice to select S.
•Push [MENU] one or more times to select S2.
t Push [(F-2)PRI] to start the priority watch.
• Decimal point blinks while scanning.
y When the scan detects a signal, the scan pauses
for 10 sec. or until the signal disappears, depend-
ing on the resume setting.
u To cancel the scan push [(F-2)PRI].
NOTE:
The paused condition when detecting a sig-
nal differs depending on the scan resume condi-
tion. (p 80)
resume on: pauses for 10 sec.
resume off: pauses until the signal disappears.
S2 SCN
PRI V/M
Select
VFO mode
Select watching
channel
F-2
Push [(F-2)PRI].
CH
PO
S1
5
53792040
10
60dB
USB
VFO A
[DISPLAY][MANU] [F-2][SQL]
q Select memory mode.
w Close the squelch with [SQL].
e Select S2.
• Push [DISPLAY] once or twice to select S.
•Push [MENU] one or more times to select S2.
r Push [(F-1)SCN] to start the memory scan.
• Decimal point blinks while scanning.
t Push [(F-2)SEL] to change the memory scan to se-
lect memory scan.
•Push [(F-2)SEL] for 2 sec. to clear all select memory
channels.
y When the scan detects a signal, the scan stops or
pauses depending on the resume setting.
u To cancel the scan push [(F-1)SCN].
NOTE:
Two or more memory channels must be
designated as select memory channels for select
memory scan to start (see p. 61).
S2 SCN
SEL V/M
Select
memory mode
Designate
“S.”
F-1
F-2
Push [(F-1)SCN], then [(F-2)SEL].
CH
S
MEMO
PO
S1
5
53792040
10
60dB
USB
[DISPLAY]
[F-1]
[MANU] [F-2][SQL]
■ Select memory scan operation
■ Priority watch
