■ Volume setting
23
3
BASIC OPERATION

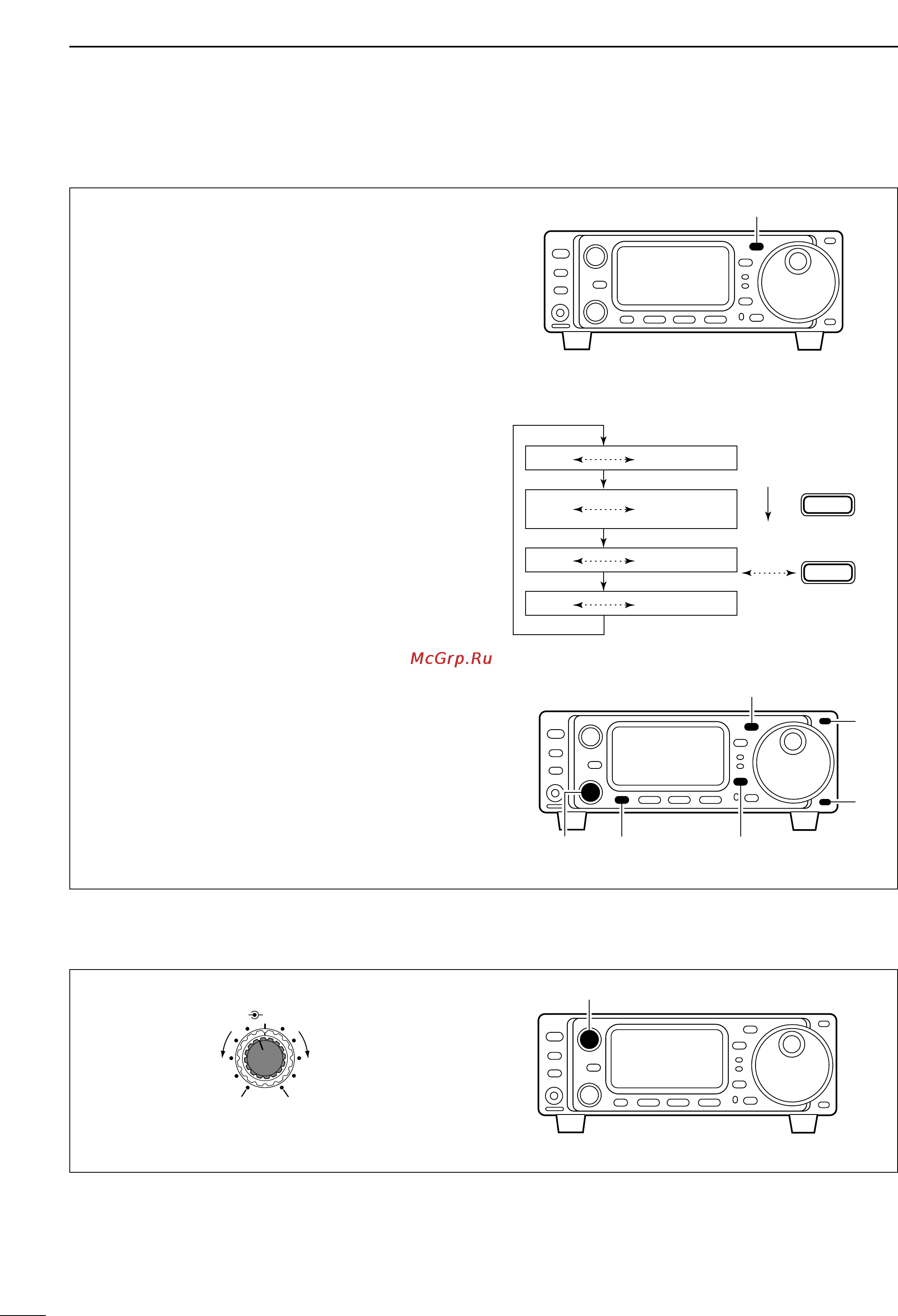

■ Operating mode selection
The following modes are available in the IC-703:
SSB (LSB/USB), CW, CW-å (CW reverse), RTTY
and åRTTY (RTTY reverse), FM, AM.
•SSB (LSB/USB), CW, RTTY, SSB-D, FM and
AM modes selection
To select the desired mode of operation, push
[MODE] one or more times, then push [MODE] for 1
sec., if necessary. See the diagram at right for the
order of selection.
• The selected mode is indicated in the function display.
•CW-å (CW reverse) mode selection
q When selecting CW mode, push [DISPLAY] for 1
sec. to enter quick set mode.
w Push [MENU] one or more times to select item “Q3
CW REV” during CW mode.
•[Y]/[Z] or [M-CH] can also be used.
e Rotate the main dial to select CW reverse.
r Push [DISPLAY] to exit quick set mode.
•“CW-å” appears.
•åRTTY (RTTY reverse) mode selection
q When selecting RTTY mode, push [DISPLAY] for 1
sec. to enter quick set mode.
w Push [MENU] one or more times to select item “Q2
RTTY REV” during RTTY mode.
•[Y]/[Z] or [M-CH] can also be used.
e Rotate the main dial to select RTTY reverse.
r Push [DISPLAY] to exit quick set mode.
• “åRTTY” appears.
Note:If a desired mode cannot be selected, it may be
hidden using initial set mode (p. 76).
[DISPLAY]
[MODE]
[MENU][M-CH]
[Y]
[Z]
OPERATING MODE SELECTION
MODE
Push
momentarily
Memory keyer
set mode
MODE
Push
for 1 sec.
USB LSB
FM AM
SSB-D
CW
RTTY
[MODE]
Rotate [AF] control to output a suitable audio level.
[AF]
AF RF/SQL
No audio output
Max. audio output
Decreases Increases
