57
7
MEMORY OPERATION
• Programming in VFO mode
q Select M2 functions.
• Push [DISPLAY] once or twice to select M.
•Push [MENU] one or more times to select M2.
w Set the desired frequency and operating mode in
VFO mode.
•If you want to program the split frequency function, pro-
gram both receive and transmit frequencies into VFO A
and B, then turn ON the split function.
•If you want to program a repeater function, set a tone
frequency (pgs. 44, 45) in addition to the receive/trans-
mit frequencies.
e Rotate [M-CH] to select the desired memory chan-
nel.
•
Select memory mode to confirm the contents, if desired.
•“}” appears if the selected memory channel is a
blank channel (and does not have contents).
r Push [(F-1)MW] for 1 sec. to program the displayed
frequency and operating mode into the memory
channel.
To check the programmed contents, push [(F-3)V/M]
to select memory mode.
CW
CH
VFO A

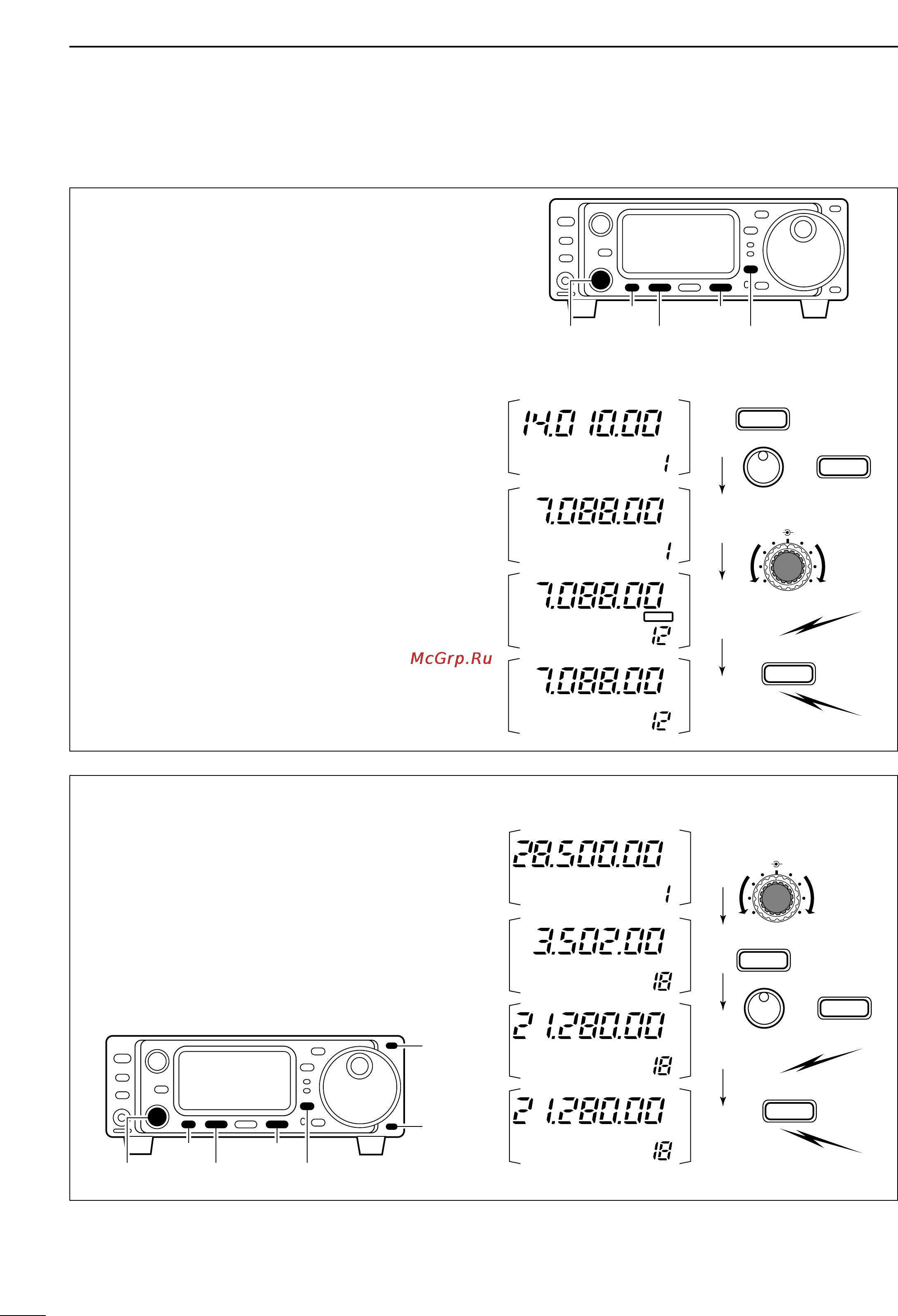

[EXAMPLE]: Programming 7.088 MHz/LSB into ch 12.
TS
MODE
MW
F-1
LSB
BLANK
SPLIT
CH
VFO A
LSB
CH
VFO A
LSB
CH
VFO A
Push for
1 sec.
M-CH SHIFT
[DISPLAY]
[MENU]
[M-CH]
[F-3]
[F-1]
■ Memory programming
• Programming in memory mode
q Select M2 functions.
• Push [DISPLAY] once or twice to select M.
•Push [MENU] one or more times to select M2.
w Set the desired frequency and operating mode.
e Push [(F-3)V/M] to select memory mode, then se-
lect the desired memory channel with [M-CH].
•Push [Y]/[Z] when you want to program blank chan-
nels.
r Push [(F-1)MW] for 1 sec. to program the displayed
frequency and operating mode into the memory
channel.
CH
[EXAMPLE]:
Programming 21.280 MHz/USB into
ch 18.
TS
MODE
MW
F-1
SPLIT
Push for
1 sec.
CH
MEMO
USB
CH
MEMO
USB
CH
MEMO
CW
CH
MEMO
USB
M-CH SHIFT
[DISPLAY]
[MENU]
[M-CH]
[F-3]
[F-1]
[Y]
[Z]
