42
4
RECEIVE AND TRANSMIT
D Convenient functions for receive
D Convenient functions for transmit

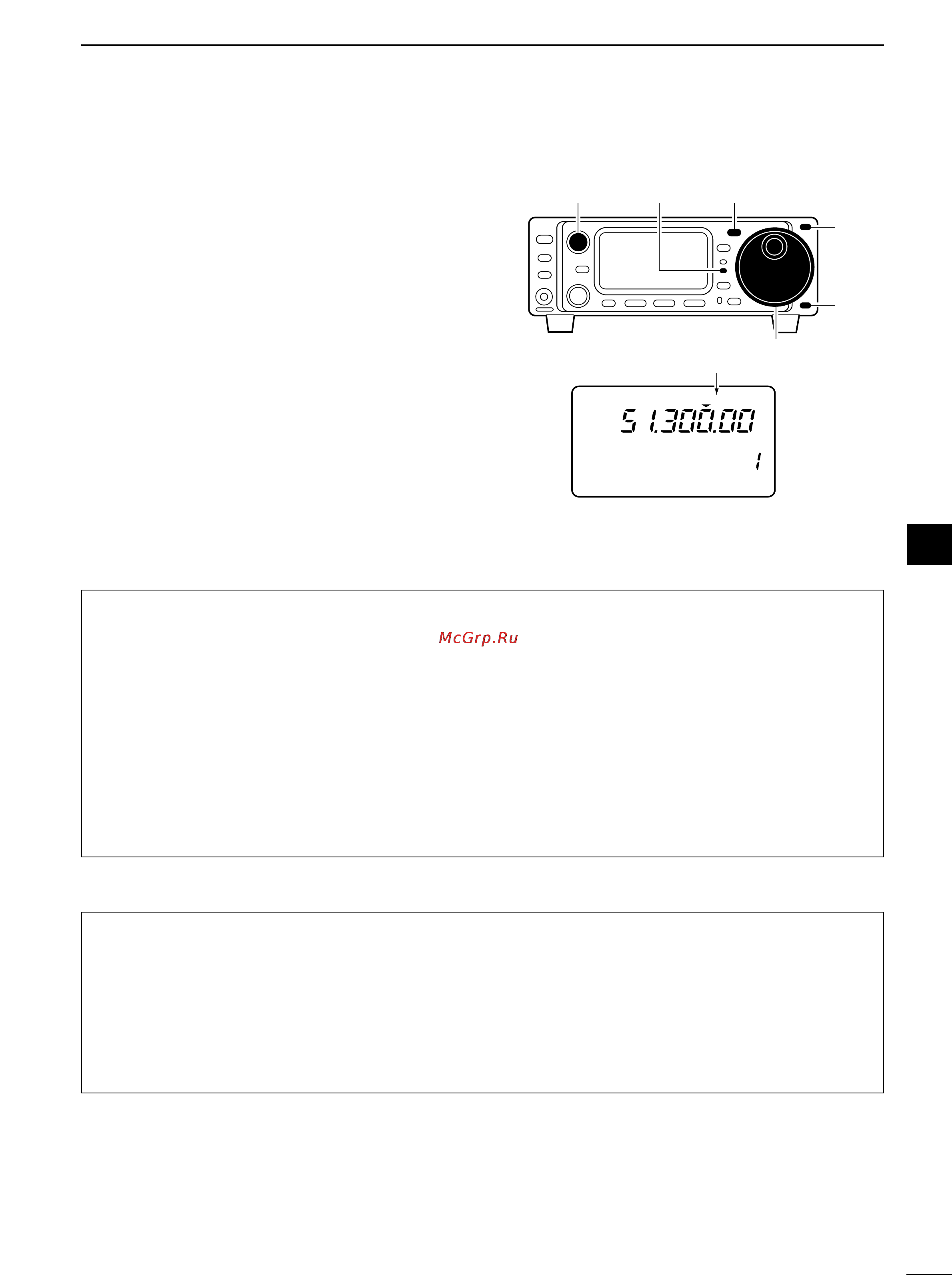

■ Operating FM
q Push [
(Y)BAND]/[(Z)BAND] to select the desired
band.
w Push [MODE] momentarily or for 1 sec. to select
FM mode.
•After FM or AM mode is selected, push [MODE] for
1 sec. to toggle between FM and AM modes.
e Rotate [AF] control to set audio to a comfortable lis-
tening level.
r Rotate the main dial to tune a desired signal.
•S-meter indicates received signal strength.
•The default tuning step for FM mode is 1 kHz; this can
be changed using the tuning step program mode. (p.19)
t Push [PTT] (microphone) to transmit.
•The TX indicator lights red.
y Speak into the microphone at your normal voice
level.
•Adjust ‘MIC GAIN’ at this step, if necessary. (p. 26)
u Release [PTT] (microphone) to return to receive.
R
LSB
CH
VFO A
P
O
S1
5
5379
20 40
10
60dB
USB CW R
TT
Y
AM WFM
M1 SPL A/B XFC
[TX] indicator [MODE]
Main dial
[AF]
[Y]
[Z]
“FM” appears
• Preamp and attenuator (p. 46)
➥ Push [P.AMP/ATT] momentarily to set the preamp
ON or OFF.
•Lights green when the preamp is set to ON.
➥ Push [P.AMP/ATT] for 1 sec. to set the attenuator
ON.
•Push [P.AMP/ATT] momentarily to turn the attenua-
tor OFF.
• Lights red when the attenuator is set to ON.
• IF shift (p. 47)
➥ Rotate [SHIFT] control.
• Noise reduction (p. 50)
➥ While “S4” is selected,
push [(F-2)
NR] to turn the
noise reduction ON and OFF.
•Push [DISPLAY] once or twice to select S.
•Push [MENU] one or more times to select S4.
•Push [(F-3)NRL] then rotate [M-CH] to adjust the
noise reduction level.
• “NR” appears when the noise reduction is set to ON.
• Auto notch filter (p. 50)
➥ While “S4” is selected,
push [(F-1)ANF] to turn th
e
auto notch filter function ON and OFF.
•“ANF” appears when the noise reduction is set to
ON.
• VOX (voice operated transmit) (p. 53)
➥ While “M4” is selected, push [(F-1)VOX] to turn
the VOX function ON and OFF.
•Push [DISPLAY] once or twice to select M.
•Push [MENU] one or more times to select M4.
• “VOX” appears when the VOX function is set to ON.
•Push [
(F-1)
VOX] for 1 sec. to enter the VOX set
mode.
4
