Icom IC-703 [66/112] Function for transmit
![Icom IC-703 [66/112] Function for transmit](/views2/1074390/page66/bg42.png)
6
51

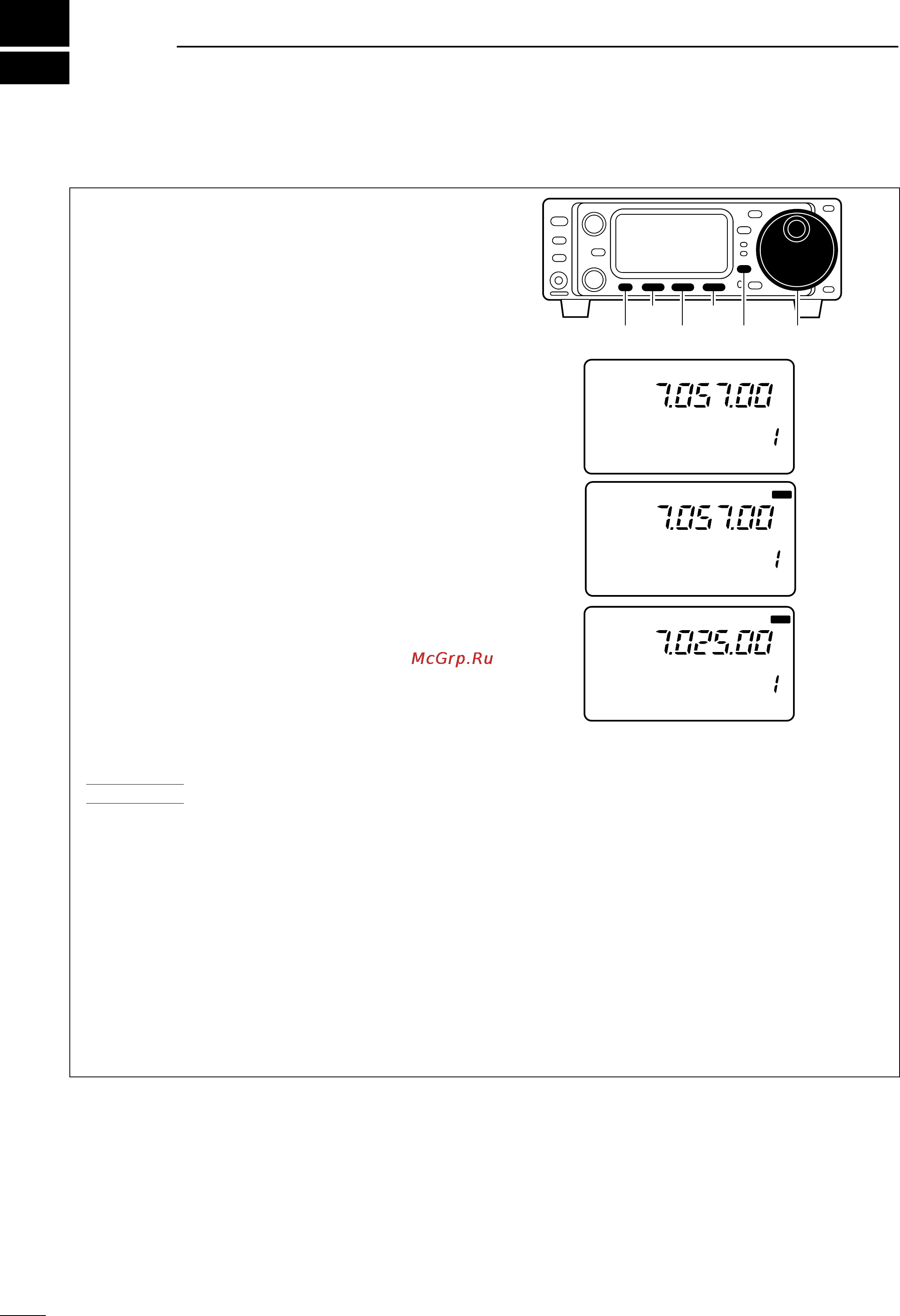

FUNCTION FOR TRANSMIT
Split frequency operation allows you to transmit and
receive on two different frequencies. Split frequency
operation uses 2 frequencies, one in VFO A and the
other in VFO B.
Following is an example of setting 7.057 MHz, CW
mode in VFO A (for receiving) and 7.025 MHz, CW
mode in VFO B (for transmitting).
q Select VFO A and set the frequency to 7.057
MHz/CW.
•[(F-2)A/B] is available when M1 appears.
•[
(F-3)V/M] is available when M2 appears.
w Push or push and hold [(F-1)SPL] in the M1 dis-
play.
➥ Push [SPL]: activates split only.
➥ Push and hold [SPL]: activates the quick split
next page.
e To change the receive frequency, rotate the main
dial; to change the transmit frequency, rotate the
main dial while pushing [
(F-3)
XFC].
•The transmit frequency can be monitored while push-
ing [
(F-3)XFC].
•Split operation is now set for receive on 7.057 MHz/CW
and transmit on 7.025 MHz/CW.
To exchange the transmit and receive frequencies,
push [(F-2)A/B] in M1.
CONVENIENT
The G3 display conveniently shows the transmit fre-
quency during split frequency operation and pushing
[(F-3)Ñ] allows you to change the transmit frequency.
• Split lock function
The split lock function is convenient for changing only
the transmit frequency. Otherwise, accidentally re-
leasing the [(F-3)XFC] switch while rotating the main
dial changes the receive frequency. The split lock’s ef-
fectiveness can be selected in initial set mode (item
“25 SPLIT LOCK”) for both receive and transmit
frequencies; or only the receive frequency. (p. 80)
CH
P
O
S1
5
5379
20 40
10
60dB
CW
M1 SPL A/B XFC
SPL
VFO B
CH
VFO A
P
O
S1
5
5379
20 40
10
60dB
CW
M1 SPL A/B XFC
SPL
CH
VFO A
P
O
S1
5
5379
20 40
10
60dB
CW
SPL
M1 SPL A/B XFC
[DISPLAY] Main dial[MENU]
[F-1]
[F-2]
[F-3]
■ Split frequency operation
