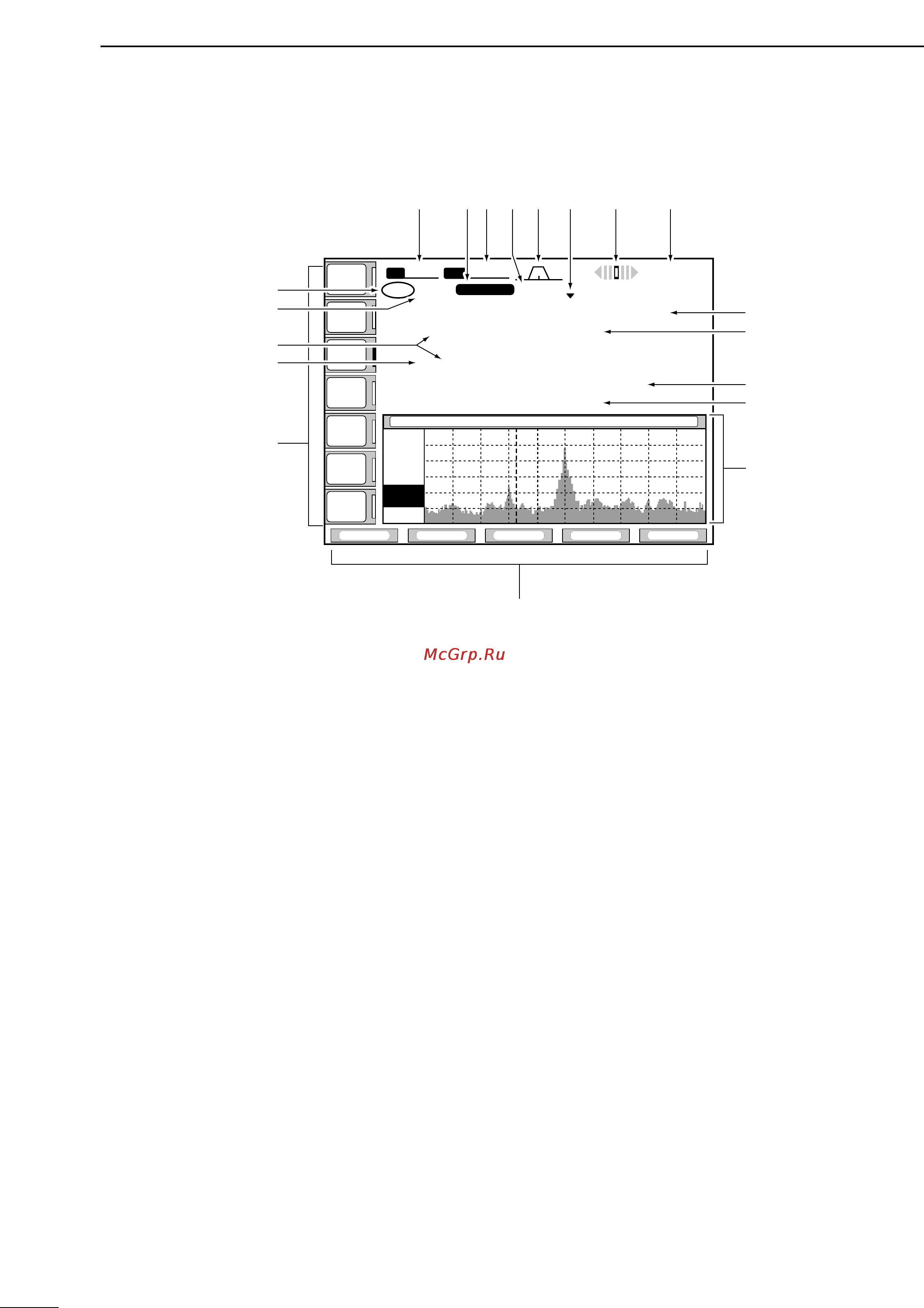

q TX INDICATOR
Indicates the frequency readout for transmit.
w VFO/MEMORY CHANNEL INDICATOR
(pgs. 23, 50)
Indicates the VFO mode or selected memory chan-
nel number.
e SELECT MEMORY CHANNEL INDICATOR
(p. 59)
Indicates the displayed memory channel is set as a
select memory channel.
r MULTI-FUNCTION SWITCH GUIDE
Indicates the function of the multi-function switches.
t LCD FUNCTION SWITCH GUIDE
Indicates the function of the LCD function switches
([F-1]–[F-5]).
y MULTI-FUNCTION SCREEN (p. 11)
Shows the screens for the multi-function digital
meter, spectrum scope, voice recorder, memory
channel, scan, memory keyer, RTTY decoder, IF fil-
ter selection or set modes, etc.
u MEMORY CHANNEL READOUTS (p. 50)
➥Show the selected memory channel contents in
VFO mode.
➥Show the VFO contents in memory mode.
i FREQUENCY READOUTS (p. 24)
Show the operating frequency.
•Outline characters are used for non-accessing readout.
o CLOCK READOUT (p. 62)
Shows the current time.
!0 RTTY TUNING INDICATOR (p. 41)
Shows the tuning level in RTTY mode.
!1 QUICK TUNING INDICATOR (p.25)
Appears when the quick tuning step function is in
use.
!2 PASSBAND WIDTH INDICATOR (p. 26)
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
!3 IF FILTER INDICATOR (p. 29)
Shows the selected IF filter number.
!4 SHIFT FREQUENCY INDICATOR (p. 26)
Shows the shift frequency of the IF filter.
!5 MODE INDICATOR (p. 26)
Shows the selected mode.
!6 BAND WIDTH INDICATOR (p.29)
Shows the passband width of the IF filter.
10
2
PANEL DESCRIPTION
ANTANT
1
METERMETER
PoPo
P.AMPP.AMP
1
ATTATT
OFFOFF
VOXVOX
OFFOFF
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
SUBSUB
MARKERMARKER
+12.5k+12.5k
-12.5k-12.5k
SPECTRUM SCOPESPECTRUM SCOPE
SPANSPAN
ATTATT
MARKERMARKER
HOLDHOLD
SETSET
BWBW
2.4k2.4k
SFTSFT
0
USBUSB
qw:pp
VFOVFO 21.085.0021.085.00
TX
CWCW
FIL2
qr≥qqy≥pp
qr≥qpp≥pp
56ß
USB
1ß 21.085.0021.085.00 CWCW
VFO
FIL2FIL2
GridGrid
10k10k
10dB10dB
t
i
i
!6 !4!5 !2!3 !1 !0 o
y
u
u
r
q
w
e
w
■ LCD display
