INSTALLATION AND CONNECTIONS

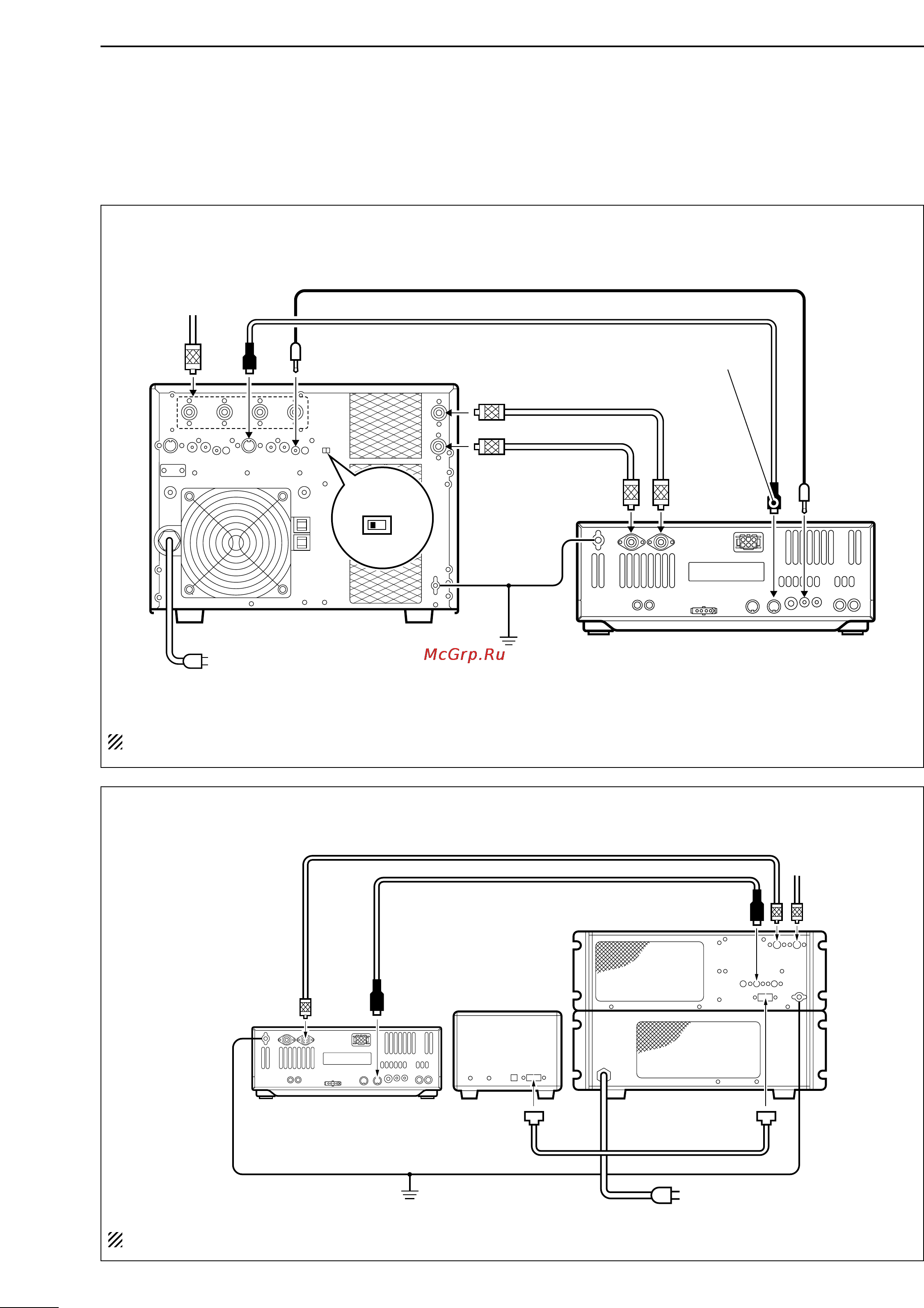

■ Linear amplifier connections
Use the [ANT1] connector when connecting a linear
amplifier.
CONNECTING THE IC-PW1
Turn OFF the transceiver’s antenna tuner while tuning the IC-PW1’s tuner.
ANT
ACC-1
ANT2 ANT1 ACC(2) REMOTE
REMOTE
INPUT1
INPUT2
Connect
[INPUT2]
if necessary.
GND
GND
IC-PW1
IC-756PRO
Ground
AC outlet
(Non-European versions : 100–120/220–240 V
European version : 230 V)
Coaxial cable
(supplied with the IC-PW1)
Coaxial cable
(optional)
ACC cable (supplied with the IC-PW1)
Be sure to connect the cable
to the 7-pin ACC(2) jack.
Remote control cable
(supplied with the IC-PW1)
To an
antenna
EXCITER
1 1&2
CONNECTING THE IC-4KL
Turn OFF the transceiver’s antenna tuner while tuning the IC-4KL’s tuner.
Transceiver
Ground
IC-4KL
Remote
controller
Coaxial cable
(supplied with the IC-4KL)
ACC cable (supplied with the IC-4KL)
ACC
IC-4KL
Remote control cable
(supplied with the IC-4KL)
AC outlet (220–240 V)
To an
antenna
ANT1
ACC(2)
