67
9
SET MODE
My Call
Your call sign, etc. can be displayed in the opening
screen when turning power ON. Up to 10 characters
can be programmed.
Capital letters, numerals, some symbols (– /
.
) and
spaces can be used.
q Push [EXIT] one or more times to close a multi-
function screen, if necessary.
w Push [(F-5)SET] then [(F-2)DISP] to select the dis-
play set mode screen.
e Push [(F-2)Z] one or more times to select the ‘My
Call’ item.
r Push [(F-4)EDIT] to edit.
•A cursor appears and blinks.
t Input the desired character by rotating the tuning
dial or by pushing the band key for number input.
•Push [ABC] to select capital letters.
•Push [123] or [etc] to toggle numerals and symbols.
•Push [(F-1)Ω] or [(F-2)≈] for cursor movement.
•Push [(F-3)DEL] to delete the selected character.
•Push [(F-4)SPACE] to input a space.
y Push [EXIT] to input the set name.
•The cursor disappears.
u Push [EXIT] to exit the set mode screen.

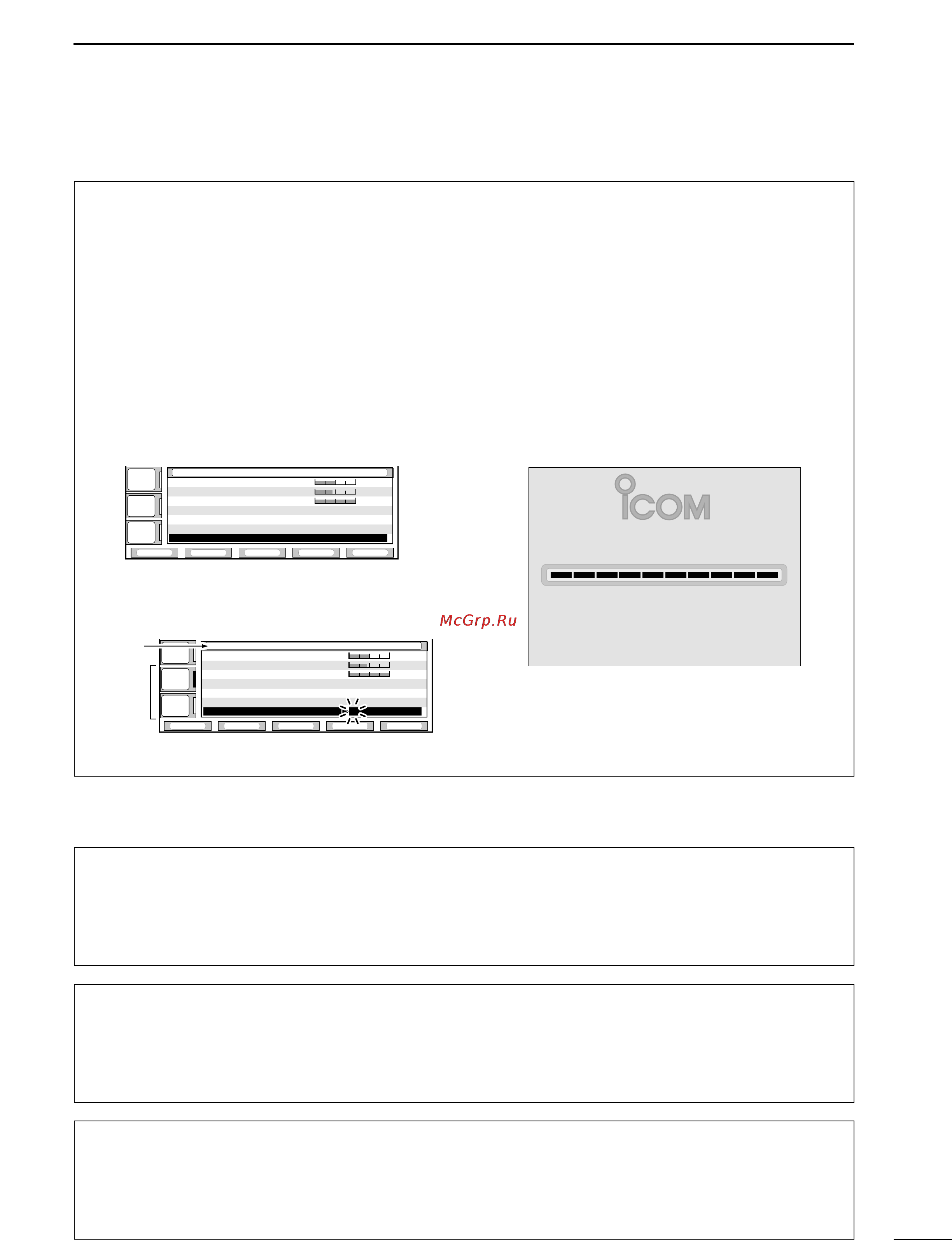

•Opening screen example
iC-756proiC-756pro
NOW CALIBRATING
DIGITAL SIGNAL PROCESSOR
PLEASE WAIT FOR 10sec
JA3YUA
iC-756pro
123123
ABCABC
ç
å
DELDEL
SPACESPACE WIDEWIDE
DISPLAY SET
Character
group
keys
Selected
character
Bright(LCD) 50%
Horizon 4
Backlight(Switches) 8
DisplayType A
DisplayFont Basic1
MemoryName ON
MyCall _A3YUA
ABCABC
VOXVOX
OFFOFF
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
é
è
EDIT
WIDEWIDE
DISPLAY SET
Bright(LCD) 50%
Horizon 4
Backlight(Switches) 8
DisplayType A
DisplayFont Basic1
MemoryName ON
MyCall JA3YUA
■ Timer set mode
Time (now)
This item sets the current time for the built-in 24-hour
clock.
See p. 62 for details.
1155::0000
Push [(F-4)SET] to enter the time.
Power-ON timer set
This item sets the power-on time.
See p. 62 for details.
1155::0000
Push [(F-4)SET] to enter the time.
Power-OFF period
This item sets the power-off period for automatic shut-
down after the power-on timer has turned power ON.
See p. 63 for details.
6600mmiinn
Push [(F-4)SET] to enter the time.
■ Display set mode (continued)
