63
8

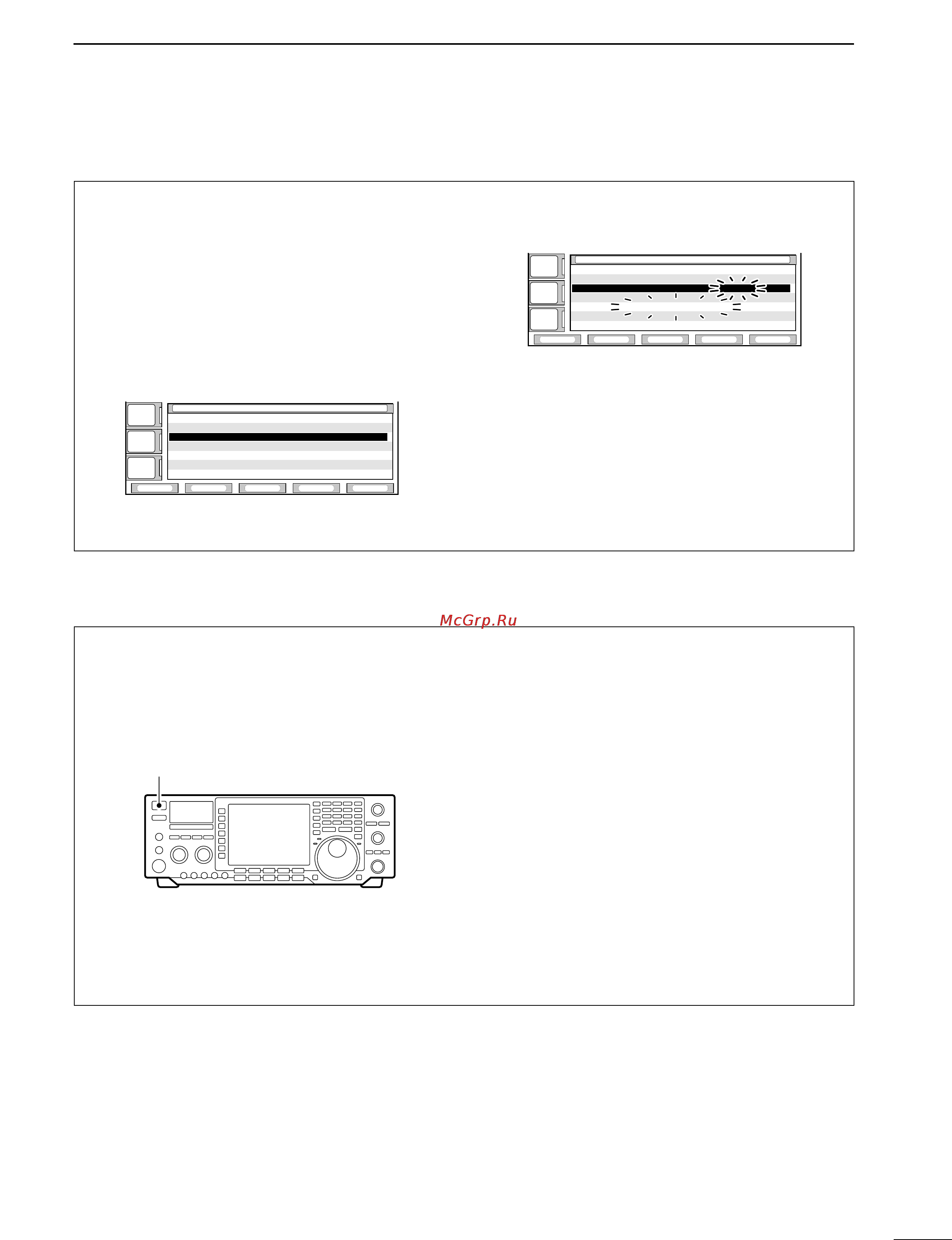

CLOCK AND TIMERS
■ Setting power-off period
The transceiver can be set to turn OFF automatically
after being activated via the power-on timer. The
power-off period can be set to 5–120 min. in 5 min.
steps.
q Push [EXIT] one or more times to close a multi-
function screen, if necessary.
w Push [(F-5)SET] then [(F-3)TIME] to enter timer
set mode.
e Push [(F-1)Y] or [(F-2)Z] to select the power-off
time item.
r Set the desired power-off time using the tuning
dial.
•“TIMER – set push [SET]” blinks.
t Push [(F-4)SET] to enter the set time.
•Push [EXIT] to cancel the setting.
y Push [EXIT] twice to exit timer set mode.
VOXVOX
OFFOFF
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
TIME SETTIME SET
é
è
SETSET
TimeTime(Now)(Now) 15:2415:24
Power-ONPower-ONTimer SetTimer Set 19:3019:30
Power-OFFPower-OFFPeriodPeriod 45min45min
TIMER-setTIMER-setPushPush [SET][SET]
VOXVOX
OFFOFF
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
TIME SETTIME SET
é
è
TimeTime(Now)(Now) 15:2415:24
Power-ONPower-ONTimer SetTimer Set 19:3019:30
Power-OFFPower-OFFPeriodPeriod 60min60min
■ Timer operation
q Preset the power-on time and power-off period as
described previously.
w Push [POWER] momentarily to turn the timer func-
tion ON.
•The [POWER] light lights when the timer function is
ON.
e Push [POWER] for 2 sec.to turn the power OFF.
•The [POWER] light lights continuously.
r When the set time arrives, the power is automati-
cally turned ON.
t The transceiver emits 10 beeps and turns OFF
after the power-off period elapses.
•The [POWER] light blinks while beeping.
•Push [POWER] momentarily to cancel the power-off
timer, if desired.
[POWER]
