61
7
SCANS

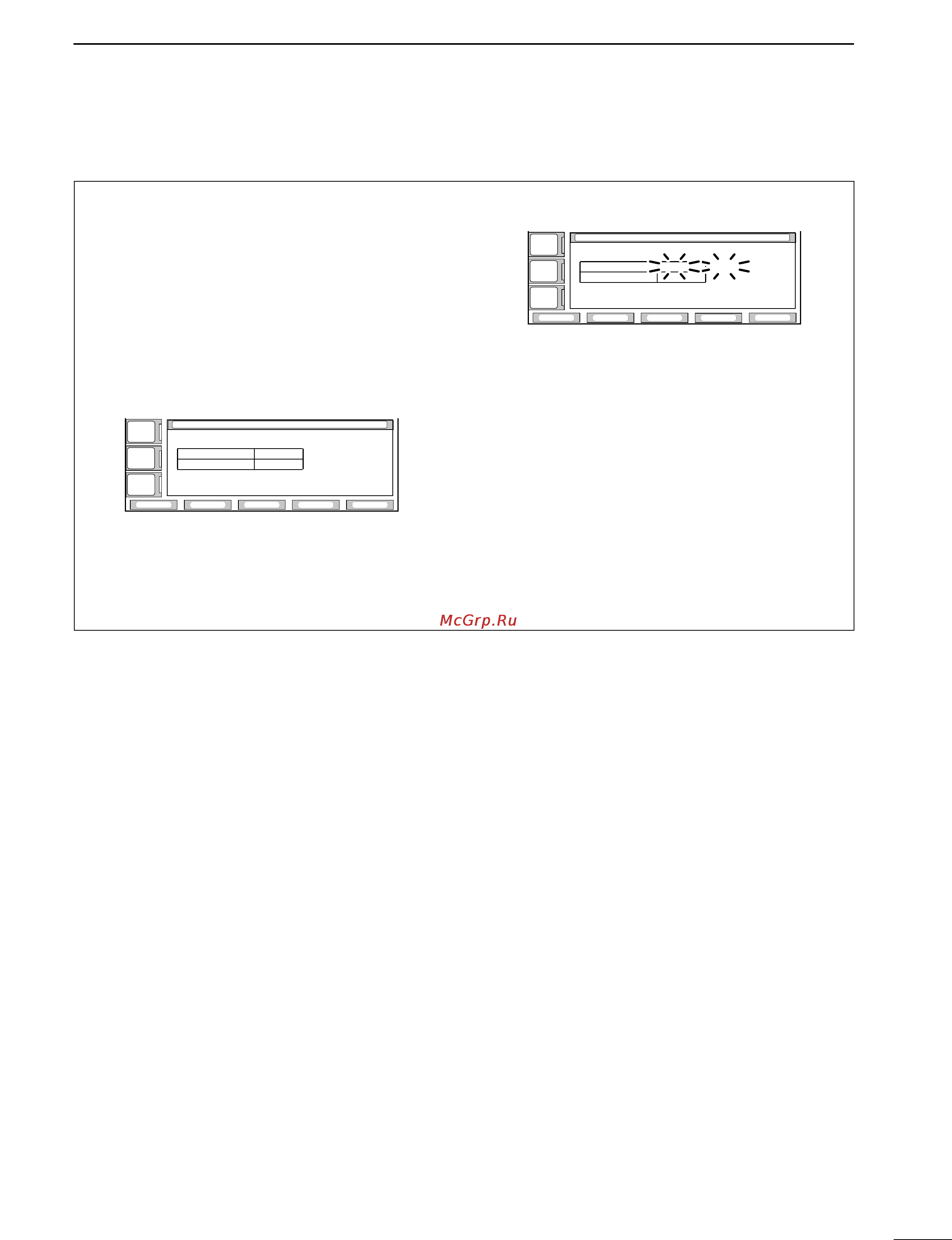

■ Tone scan
The transceiver can detect the subaudible tone fre-
quency in a received signal. By monitoring a signal
that is being transmitted on a repeater input fre-
quency, you can determine the tone frequency re-
quired to access the repeater.
q Set the desired frequency or memory channel to
be checked for a tone frequency.
w Push [AM/FM] one or more times to select FM
mode.
e Push [(F-5)TONE] for 2 sec. to enter the tone fre-
quency screen.
r Push [(F-1)Y] or [(F-2)Z] to check the repeater
tone frequency or tone squelch frequency, respec-
tively. (pgs. 46, 47)
t Push [(F-5)T-SCAN] to start the tone scan.
•“SCAN”flashes while scanning.
y When the tone frequency is detected, the tone
scan pauses.
•The tone frequency is set temporarily on a memory
channel. Program into the memory channel to store the
tone frequency permanently.
•The decoded tone frequency is used for the repeater
tone frequency or tone squelch frequency.
u To stop the scan, push [EXIT].
i Push [EXIT] to exit the tone frequency screen.
VOXVOX
OFFOFF
TONETONE
T-SCANT-SCAN
AGCAGC
FASTFAST
TONE FREQUENCYTONE FREQUENCY
188.8Hz188.8Hz SCANSCAN
88.5Hz88.5HzT-SQL TONET-SQL TONE
REPEATER TONEREPEATER TONE
VOXVOX
OFFOFF
TONETONE
T-SCANT-SCAN
AGCAGC
FASTFAST
é
è
DEFDEF
TONE FREQUENCYTONE FREQUENCY
88.5Hz88.5Hz
88.5Hz88.5HzT-SQL TONET-SQL TONE
REPEATER TONEREPEATER TONE
