60
7
SCANS

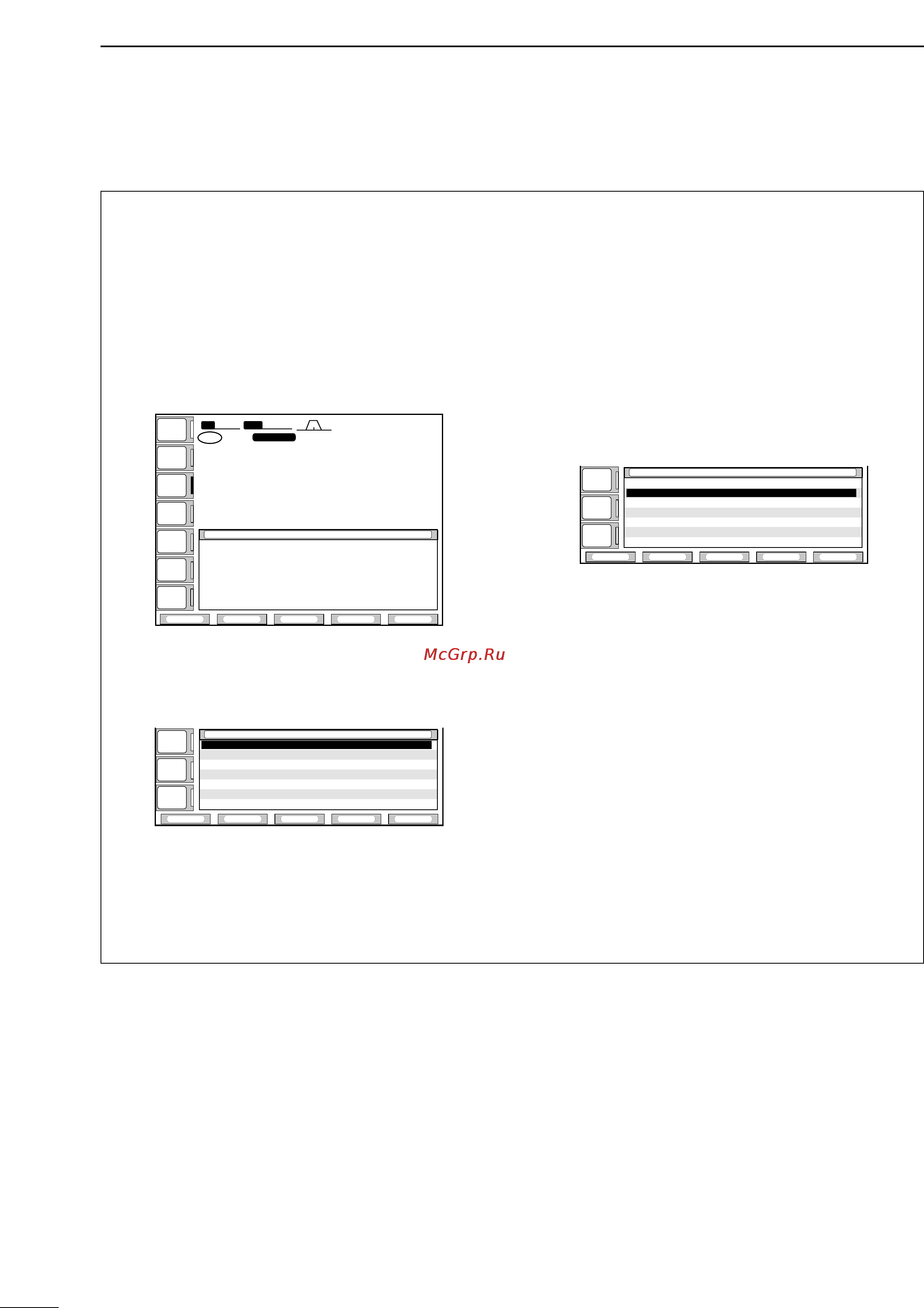

■ Scan set mode
Scan set mode is used for programming scanning
speed and scan resume condition.
•Scan speed
The transceiver has 2 speeds for scanning, high and
low.
q Push [EXIT] one or more times to close a multi-
function screen, if necessary.
w Push [(F-4)SCAN] to select the scan screen.
e Push [(F-5)SET] to select the scan set mode
screen.
r Push [(F-1)Y] to select the scan speed item.
t Rotate the tuning dial to select the scan speed.
•Push [(F-3)DEF] to select the default condition.
y Push [EXIT] twice to exit the set mode.
•Scan resume condition
This item sets the scan resume function ON or OFF.
ON: scan resumes 10 sec. after stopping on a signal
(or 2 sec. after a signal disappears); OFF: scan does
not resume after stopping on a signal.
q Push [EXIT] one or more times to close a multi-
function screen, if necessary.
w Push [(F-4)SCAN] to select the scan screen.
e Push [(F-5)SET] to select the scan set mode
screen.
r Push [(F-2)Z] to select the scan resume condition
item.
t Rotate the tuning dial to turn the scan resume
function ON or OFF.
•Push [(F-3)DEF] to select the default condition.
y Push [EXIT] twice to exit the set mode.
