Icom IC-T90A [19/100] I regular charging
![Icom IC-T90A [19/100] I regular charging](/views2/1074446/page19/bg13.png)
14
3
BATTERY CHARGING
■ Regular charging
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
CAUTION: To avoid damage to the transceiver, turn the
transceiver OFF while charging.
• Recommended temperature range for charging:
+32°F to +95°F; 0°C to +35°C
• Use the wall charger* (BC-110AR/D/DR) only. NEVER use
another manufactures’ charger.
* Not supplied with some versions.
• An optional cable CP-19 (for 12 V cigarette lighter socket)
can be used instead of the AC adapters of the above charg-
ers.
D Battery indicators
The battery indicators blink while charging but do not indicate
the power condition.
“CHG_F” appears when the charging is completed. Discon-
nect the wall charger in this case.
q Attach the battery pack to the transceiver.
w Be sure to turn the transceiver power OFF.

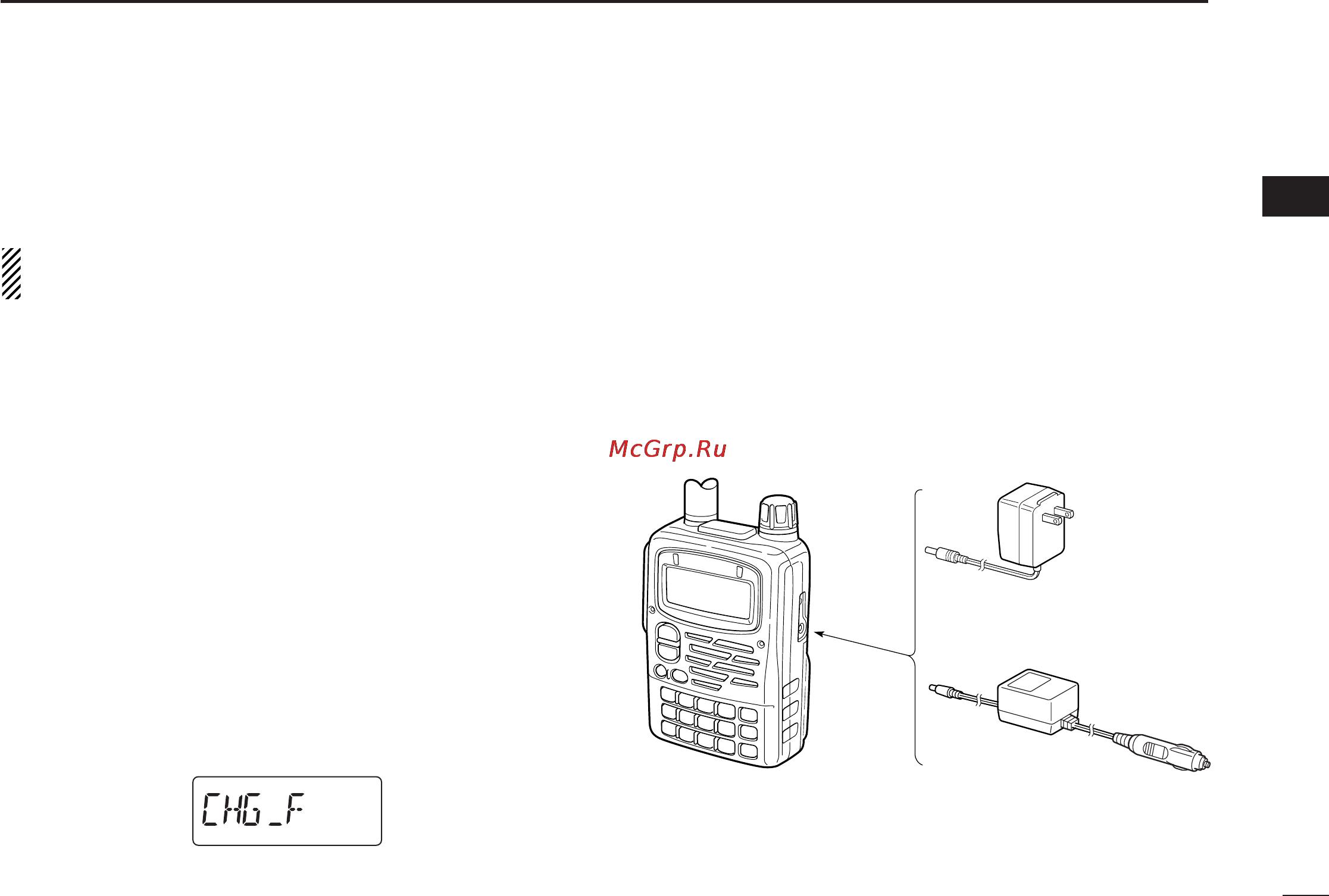

e Connect the AC adapter* (BC-110AR/D/DR) as shown
below.
* Not supplied with some versions.
r Remove any cables from the [DC11V] jack.
• Charging period: 15 hours (w/BP-217)
ee
BATTERY CHARGING
IC-T90A with BP-217
BC-110AR/D/DR
to AC outlet
CP-19
(optional)
to
DC power
jack
to a 12 V
cigarette lighter
socket
