52
7
PRIORITY WATCH
D VFO scan with memory channel watch
While scanning in VFO mode, priority watch checks for sig-
nals in the selected memory channel every 5 sec.
•A memory channel with skip information can be watched.
q Select the desired memory channel to be watched.
w Select VFO mode.
e Push [MODE SCAN] for 1 sec. to start a VFO scan. (full
scan, band scan or programmed scan)
r Push [8 SET] for 1 sec. to enter set mode.
t Rotate [DIAL] until “PRIO” appears.
y Push [8 SET] to select the priority watch item.
u Rotate [DIAL] to select the priority watch (“ON”) or priority
watch with alert (“BELL”).
i Push [VFO] to exit set mode and start the priority watch.
o Push [VFO] while the display shows the VFO frequency to
stop the VFO scan and priority watch.

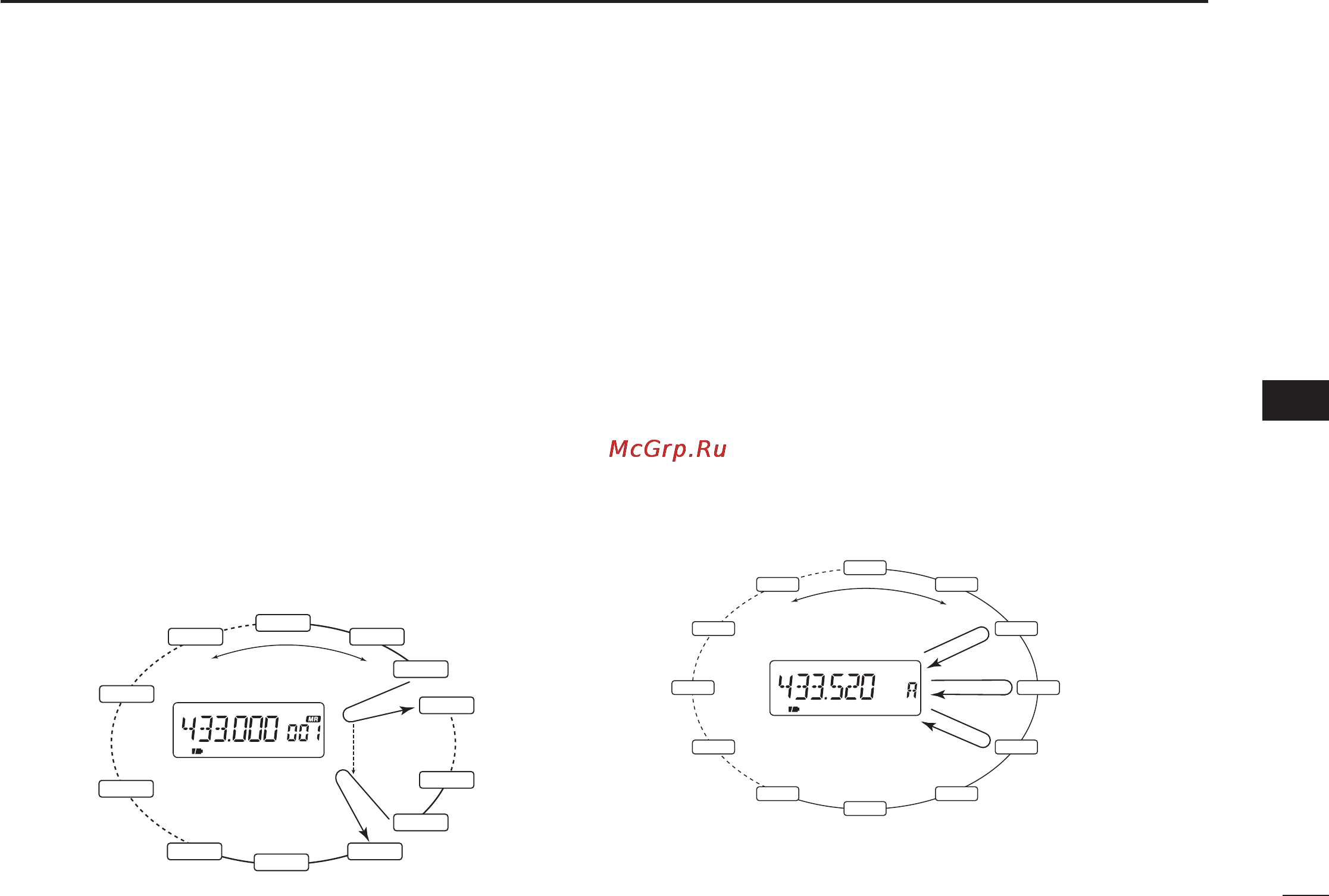

DMemory scan watch
While operating on a VFO frequency, priority watch checks
for a signal in memory channels every 5 sec.
q Select VFO mode; then, set an operating frequency.
w Select memory mode.
e Push [MODE SCAN] for 1 sec. to start a memory scan.
r Push [8 SET] for 1 sec. to enter set mode.
t Rotate [DIAL] until “PRIO” appears.
y Push [8 SET] to select the priority watch item.
u Rotate [DIAL] to select the priority watch (“ON”) or priority
watch with alert (“BELL”).
i Push [VFO] to exit set mode and start the priority watch.
o Push [VFO] while the display shows the VFO frequency to
stop the watch.
CH-000
CH-499
CH-400
CH-300
CH-200
CH-100
CH-006
CH-005
CH-004
CH-003
CH-002
CH-001
Memory scan
VFO frequency
5 sec.
Pauses when a signal
is received in Mch.
Watches Mch while
operating on VFO.
FM SKIPP
PRIO
VFO scan
Memory channel
5 sec.
Watches Mch while
VFO scanning.
Pauses when a signal
is received in Mch.
FM
PRIO
145.100
145.120
145.140
145.200
145.220
145.240
145.260
51.000
850.000
433.500
433.000
145.280
uu
PRIORITY WATCH
