40
5
MEMORY/CALL CHANNELS
t Rotate the tuning dial to select the desired character.
• See the following list for available characters.
y Push [BAND] to advance the cursor.
• Rotating the tuning dial while pushing [BAND] also selects the
cursor.
u Repeat t and y until the desired name is input.
i Push [VFO] to program the name.
o If you want to set other channels, repeat w through i to
set the desired name.
• Available characters
The memory names are automatically programmed into
the memory channels.

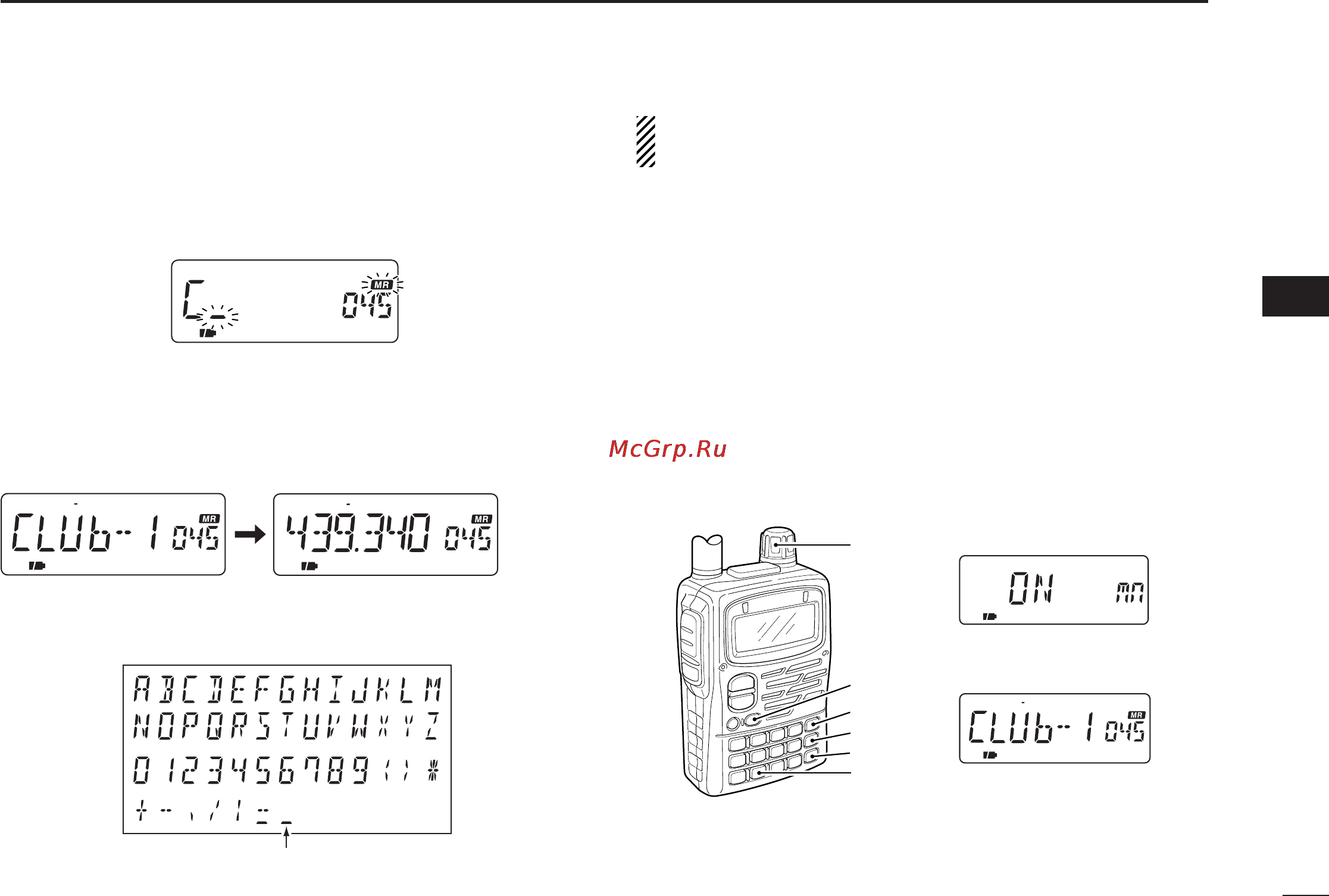

DMemory name indication
Turn the memory name indication ON and OFF as follows.
➥ Push [6 M.N] for 1 sec. to toggle the memory name indi-
cation ON and OFF.
• Frequencies are displayed for the memory channels which do
not have memory names. You cannot display both.
• To change the memory name, program a new memory name
again.
FM DUP T
[DIAL]
[BAND]
[MR]
[VFO]
[CALL/TV]
[8 SET]
Memory name ON
Memory name indication
Space
FM DUP T
FM DUP T
tt
MEMORY/CALL CHANNELS
IC-T90A_IM.qxd 02.6.6 08:44 AM Page 43 (1,1)
